Description

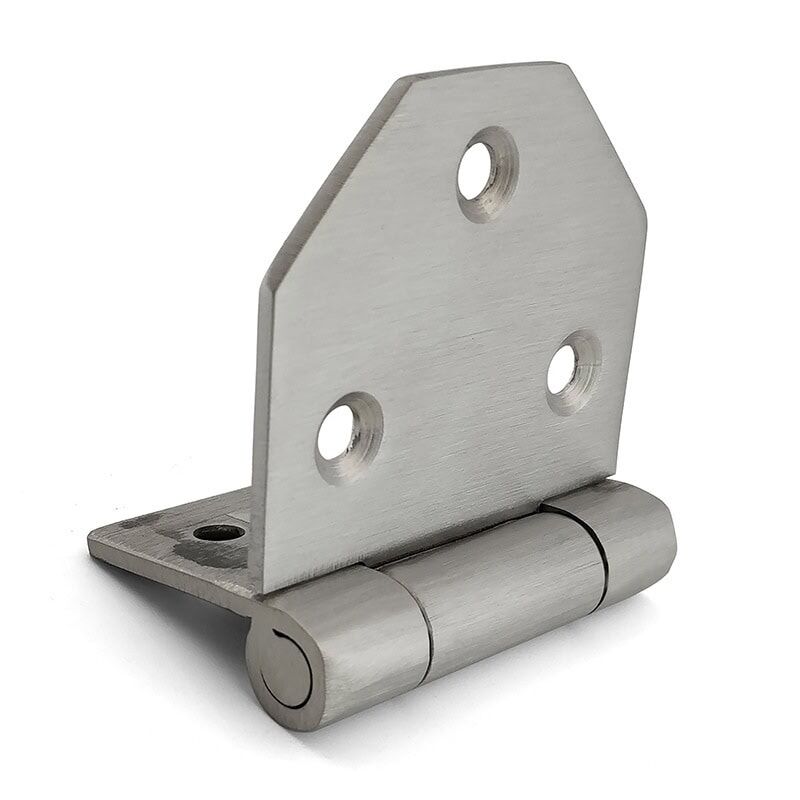

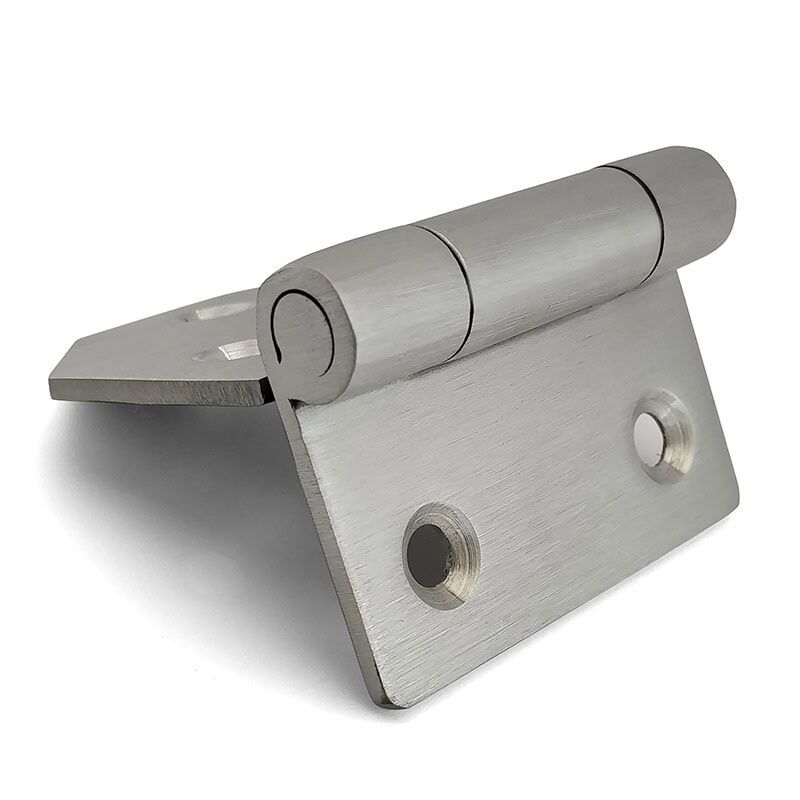

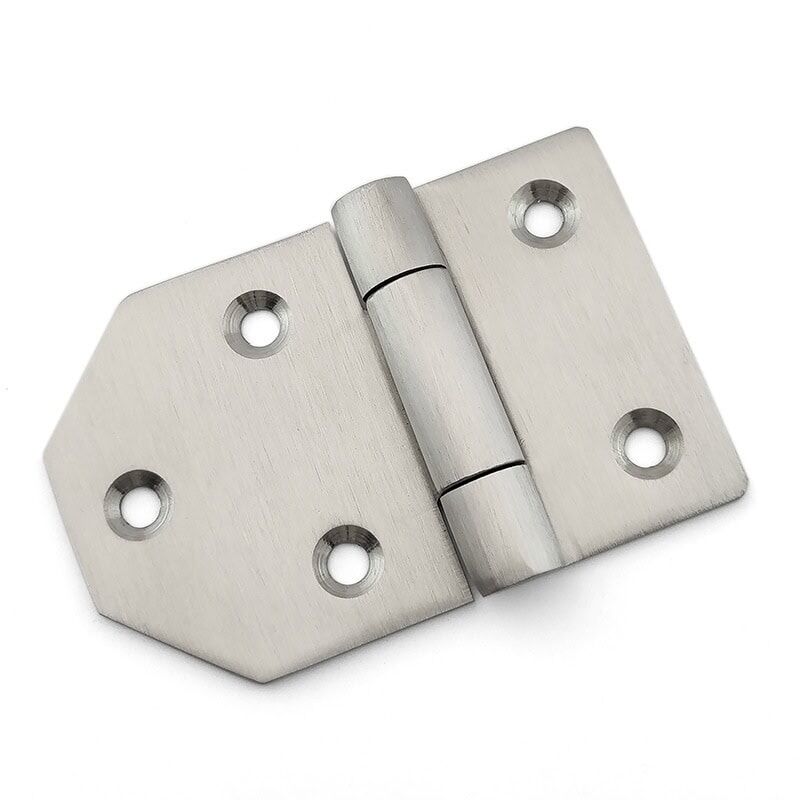

The ML2-JL403-2 is a 3mm thick industrial hinge made from high-quality 304 stainless steel, designed for applications that require strength, durability, and resistance to corrosion. It features a left-right asymmetrical structure to optimize the alignment between the door frame and door panel. With a single hinge bearing capacity of up to 25kg, this model is ideal for medium to heavy-duty industrial applications. Customization services, including logo engraving and dimensional modifications, are available to meet your project requirements.

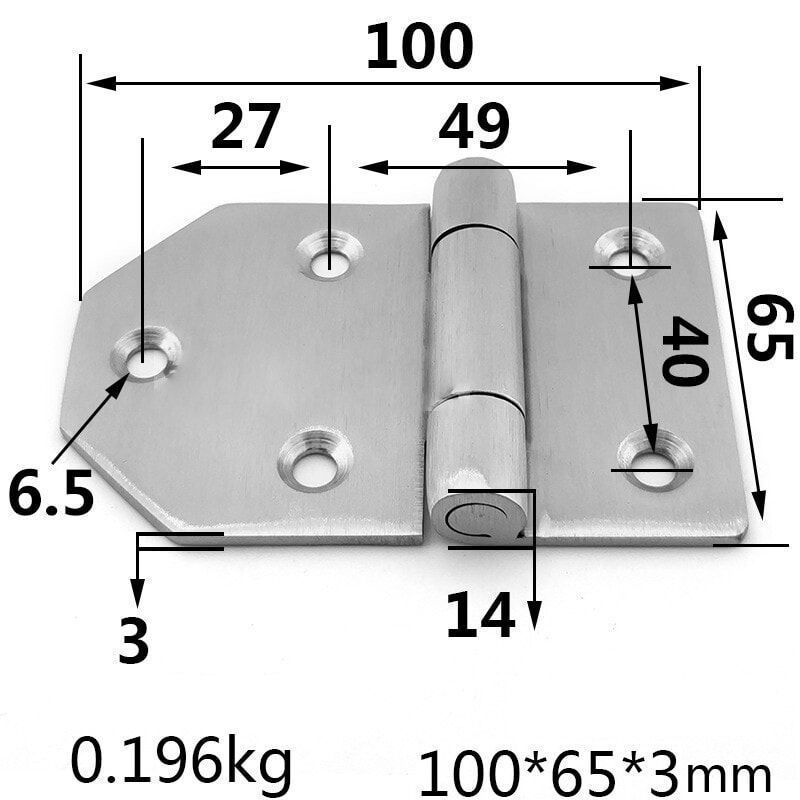

Parameters
| Parameter | Value |
|---|---|
| Model Number | ML2-JL403-2 |
| Material | 304 Stainless Steel |
| Overall Size | 100 × 65 × 3 mm |
| Plate Thickness | 3 mm |
| Shaft Diameter | 14 mm |
| Left Wing Width | 27 mm |
| Right Wing Width | 49 mm |
| Mounting Hole Diameter | 6.5 mm |
| Vertical Hole Distance | 40 mm |
| Weight | 0.196 kg |
| Structure | Asymmetrical |
| Load Capacity (Single) | 25 kg |
| Surface Finish | Brushed / Polished (Customizable) |
Features
-
Premium Material: Constructed from 304 stainless steel for excellent corrosion resistance and durability.
-
Heavy Load Capacity: Supports up to 25kg per hinge, suitable for industrial enclosures and equipment doors.
-
Asymmetrical Design: Precisely engineered to better match door-frame configurations, especially where different mounting clearances are required.
-
Professional Appearance: Brushed surface treatment provides a clean, modern industrial look.
-
Customizable: Logo engraving, special dimensions, or mounting configurations available on request.
Application
This stainless steel hinge is suitable for a variety of industrial and commercial applications, including:
-
Electrical cabinets
-
Sheet metal enclosures
-
Laboratory test equipment
-
Climate and environmental chambers
-
Industrial ovens and machinery housings
-
Marine and outdoor applications
Why Asymmetrical Design Matters
Unlike traditional symmetrical hinges, the asymmetrical design allows for more precise adaptation to the physical constraints of both door frames and panels. This not only ensures better structural integrity and alignment during installation but also enhances the overall visual appearance of the cabinet or enclosure. It is especially useful in designs where mounting space is limited on one side.
