Description

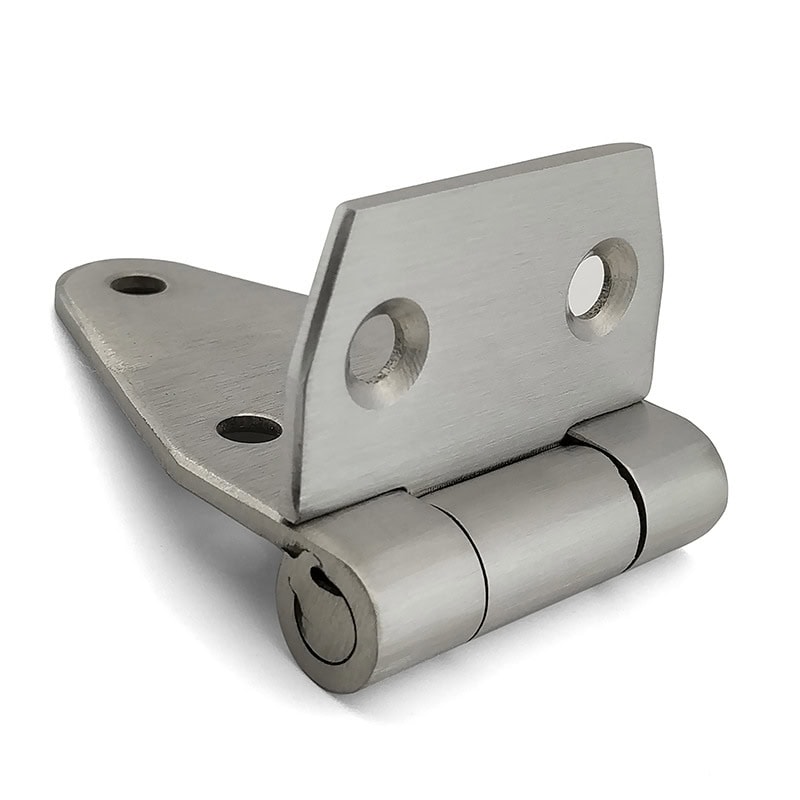

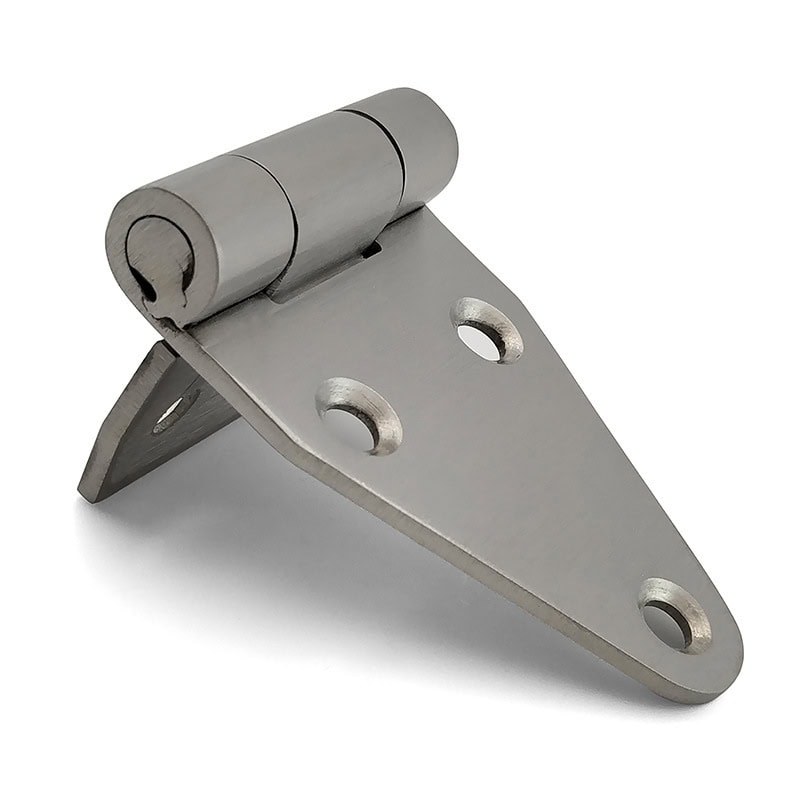

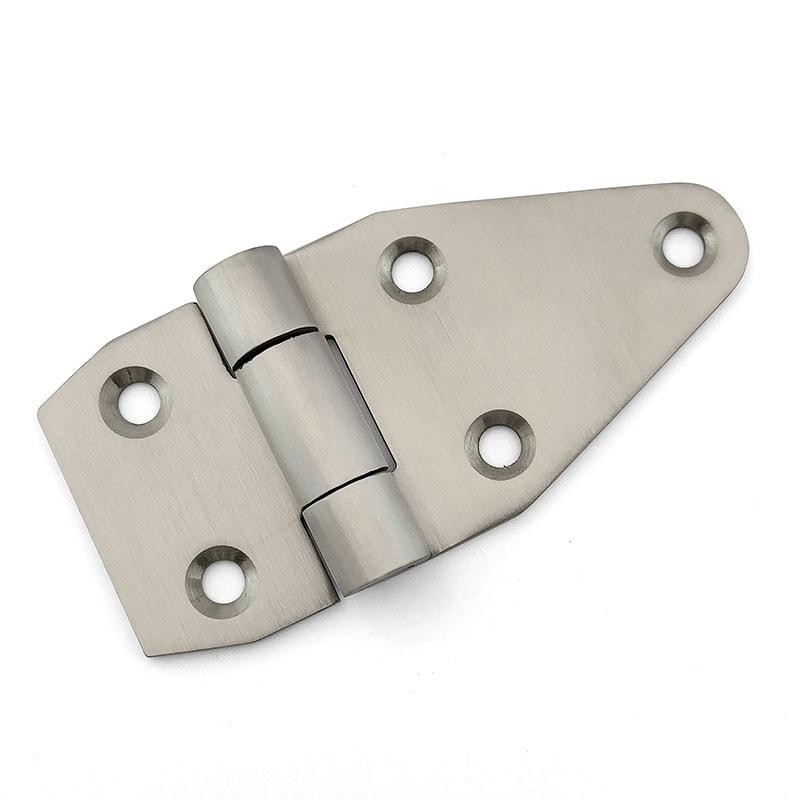

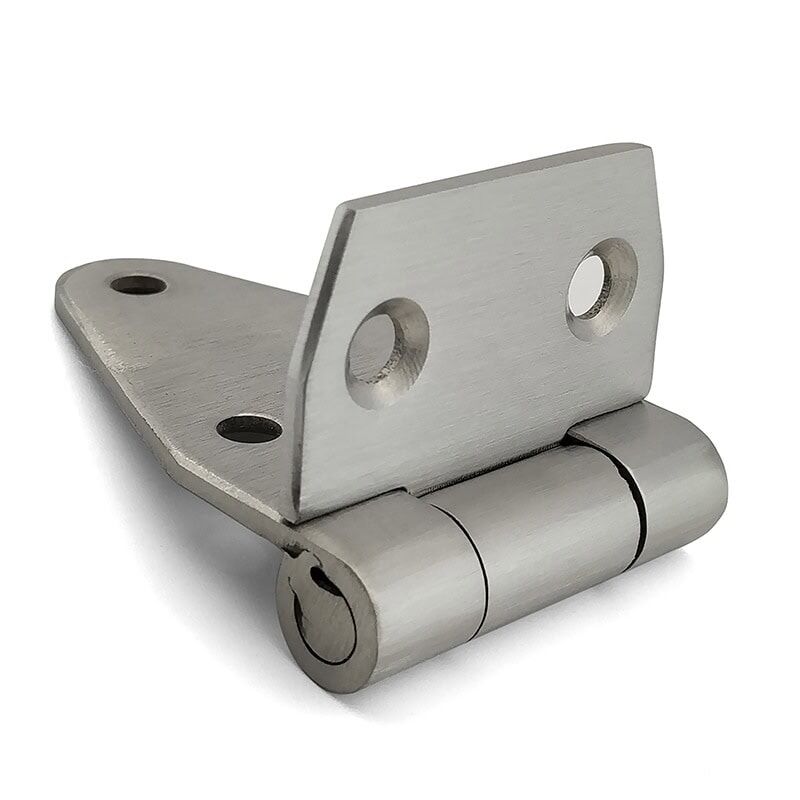

This 304 stainless steel hinge features a robust and precision-engineered design with a thickness of 3mm, ideal for industrial and commercial applications. The hinge adopts a left-right asymmetrical structure, where the left wing is narrower than the right. This design ensures a better fit between door frame and panel alignment, while also enhancing the aesthetic appeal. Manufactured with premium-grade stainless steel, this hinge offers superior resistance to corrosion and wear, making it suitable for harsh environments and long-term use.
Parameters

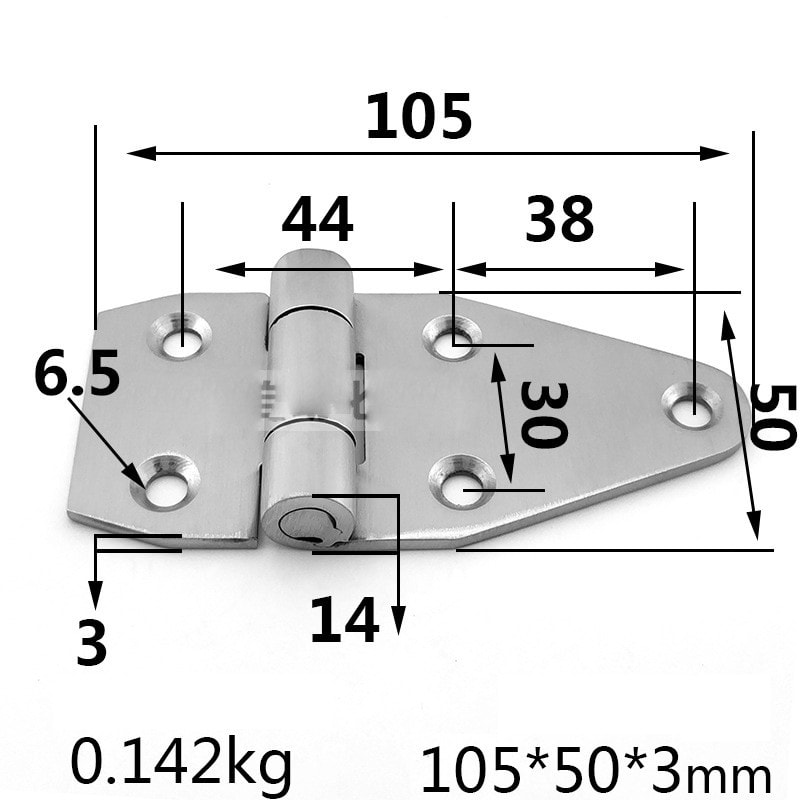

| Parameter | Value |
|---|---|
| Material | 304 Stainless Steel |
| Overall Size | 105 × 50 × 3 mm |
| Plate Thickness | 3 mm |
| Shaft Diameter | 14 mm |
| Left Wing Width | 44 mm |
| Right Wing Width | 38 mm |
| Mounting Hole Diameter | 6.5 mm |
| Vertical Hole Distance | 30 mm |
| Weight | 0.142 kg |
| Structure | Asymmetrical (Left-Narrow, Right-Wide) |
| Surface Finish | Brushed / Polished (Customizable) |
Features
-
Durable Material: Made from high-grade 304 stainless steel for superior corrosion and rust resistance.
-
Asymmetrical Design: Optimized structure with a narrow left and wide right side to better match door frame and door panel combinations.
-
Precision Engineering: Smooth rotation axis with firm riveting ensures long-term reliable performance.
-
Aesthetic Appearance: Clean lines and brushed finish provide a modern industrial look.
-
Custom Options: Logo customization and 3D design support available upon request.
Application
This stainless steel hinge is ideal for use in:
-
Industrial equipment enclosures
-
Electrical cabinet doors
-
Control boxes and switchgear
-
Sheet metal panels and access hatches
-
Test chambers and laboratory enclosures
-
Marine and outdoor cabinets
-
Custom machinery housing
It is especially suitable for industries requiring both high strength and corrosion resistance, such as electrical engineering, automation, testing equipment, and environmental test chambers.
