Description

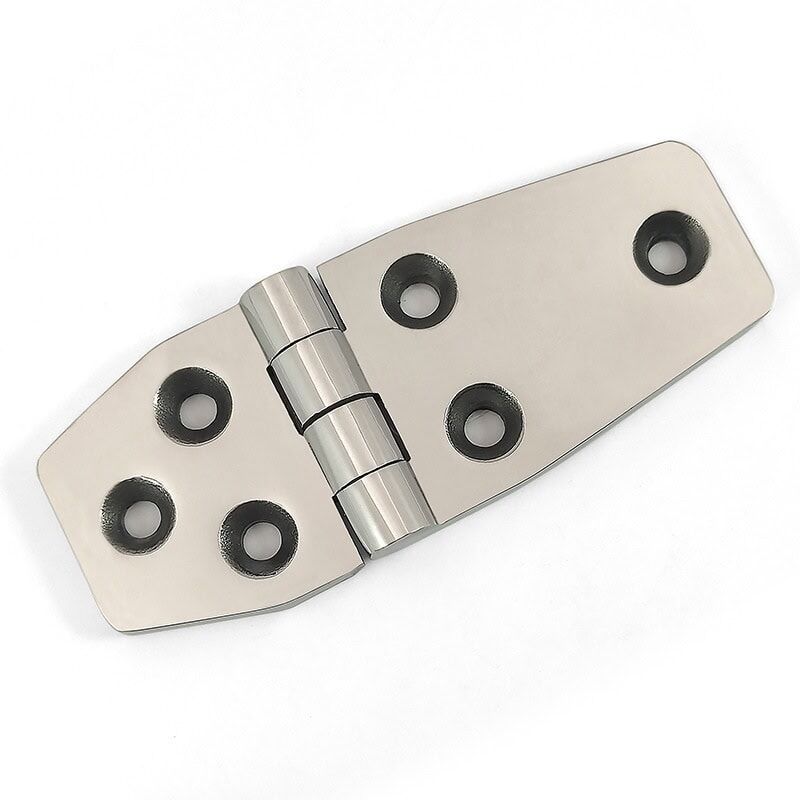

The IHINGES ML2-JL1014-2 Stainless Steel Butt Hinge is engineered with a non-symmetrical structure design, making it suitable for specialized industrial applications requiring precision fitting. Crafted from 304 stainless steel with a mirror-polished surface, this hinge combines durability with an elegant appearance. Its countersunk hole design ensures a flush, protrusion-free installation, enhancing both functionality and aesthetics. Each hinge can withstand a load capacity of up to 50 kg, ensuring reliable performance in demanding environments.
Parameters
| Model No. | ML2-JL1014-2 |
|---|---|
| Material | 304 Stainless Steel |
| Surface Finish | Mirror Polished |

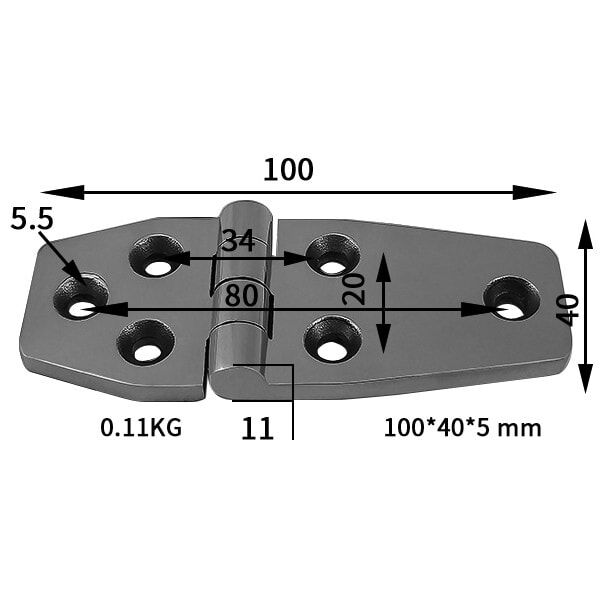

| Overall Size | 100 × 40 × 5 mm |
| Weight | 0.11 kg |
| Pin Diameter | 11 mm |
| Mounting Hole Type | Countersunk |
| Mounting Hole Diameter | 5.5 mm |
| Plate Thickness | 5 mm |
| Load Capacity | Up to 50 kg per hinge |
| Design | Asymmetrical (non-symmetrical) |
| Customization | Available (Mold cost involved) |
Features
-
Durable 304 Stainless Steel: Provides corrosion resistance and strength for long-term use.
-
Mirror Polished Finish: Smooth, high-gloss surface enhances both aesthetics and easy maintenance.
-
Asymmetrical Design: Special structure for non-standard installations and equipment doors.
-
Flush Mounting: Countersunk holes allow screws to sit level, ensuring a clean and professional appearance.
-
Heavy Duty Performance: Withstands up to 50 kg per hinge, ideal for medium-to-heavy panels.
-
Customizable Solutions: Tailored sizes and structures available on request (mold cost applies).
Application
The ML2-JL1014-2 hinge is widely used in equipment and enclosures requiring non-symmetrical hinge mounting, such as:
-
Electrical enclosures and sheet metal boxes
-
Industrial test chambers and climatic chambers
-
Machine doors and protective covers
-
Industrial ovens and environmental equipment
-
Cold storage and heavy-duty access panels
