Description

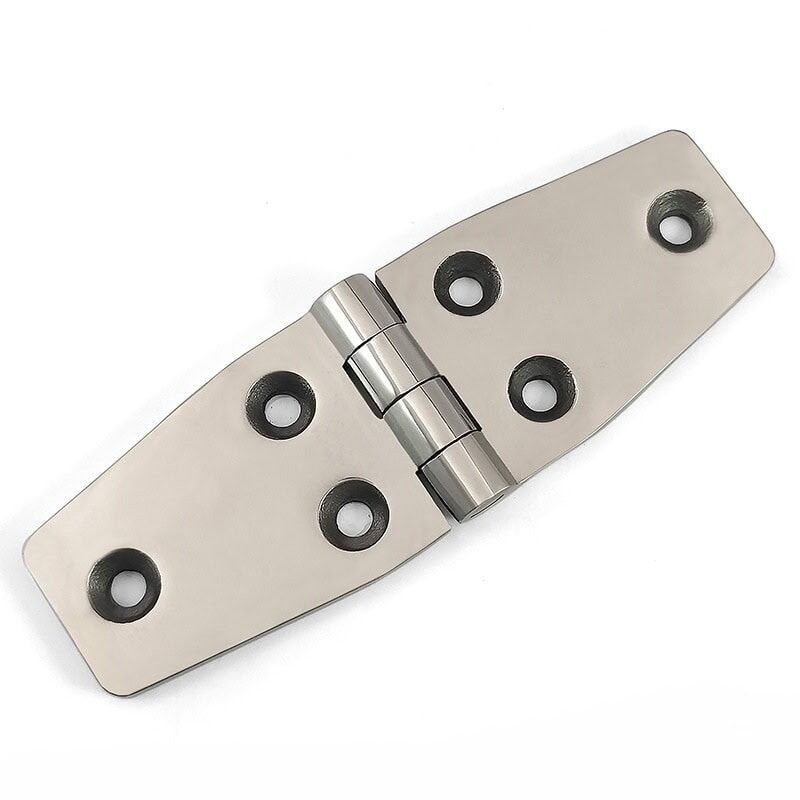

The IHINGES ML2-JL1014-3 Stainless Steel Butt Hinge is designed with an asymmetrical structure, offering a reliable solution for specialized industrial applications that require precise fitting and clean aesthetics. Made from 304 stainless steel, the hinge features a mirror-polished surface for superior corrosion resistance and a refined look. The countersunk screw holes ensure flush mounting, eliminating any protrusion from the hinge surface. This heavy-duty hinge supports up to 50 kg per piece, making it a robust choice for demanding applications.
Parameters
| Model No. | ML2-JL1014-3 |
|---|---|
| Material | 304 Stainless Steel |
| Surface Finish | Mirror Polished |

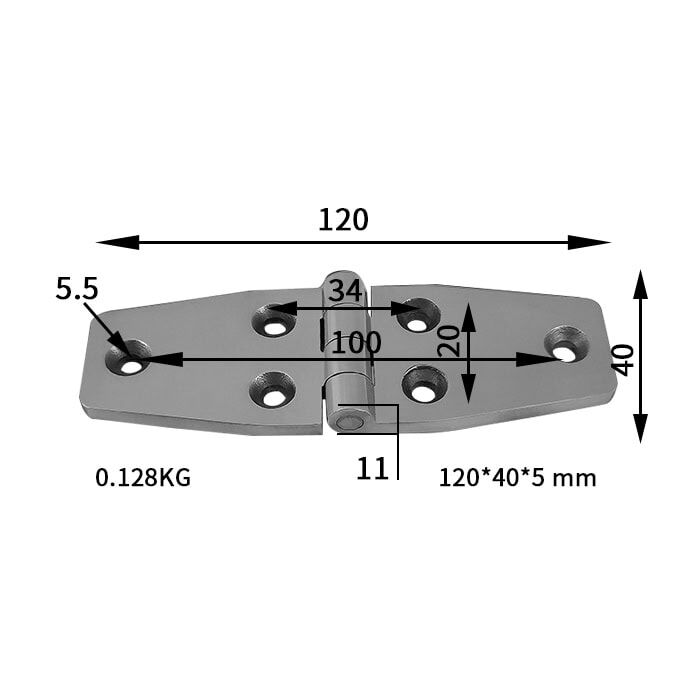

| Overall Size | 120 × 40 × 5 mm |
| Weight | 0.128 kg |
| Pin Diameter | 11 mm |
| Mounting Hole Type | Countersunk |
| Mounting Hole Diameter | 5.5 mm |
| Plate Thickness | 5 mm |
| Load Capacity | Up to 50 kg per hinge |
| Design | Asymmetrical |
| Customization | Available (Mold cost involved) |
Features
-
Premium 304 Stainless Steel: Excellent resistance to rust and wear, suitable for long-term industrial use.
-
Polished Mirror Finish: High-gloss, easy-to-clean surface for modern equipment.
-
Asymmetrical Design: Ideal for custom machinery and non-standard panel configurations.
-
Flush Installation: Countersunk mounting holes ensure a smooth, professional surface without protrusions.
-
Robust Load Capacity: Designed to handle up to 50 kg per hinge, suitable for heavy doors or access panels.
-
Custom Options Available: Sizes and hole positions can be modified upon request (subject to mold fee).
Application
The ML2-JL1014-3 hinge is widely used in industrial and commercial sectors requiring strong, non-standard hinges, such as:
-
Sheet metal electrical enclosures
-
Test equipment and environmental chambers
-
Machinery access doors
-
Stainless steel cabinets and control boxes
-
Cold storage and cleanroom panels
