Description

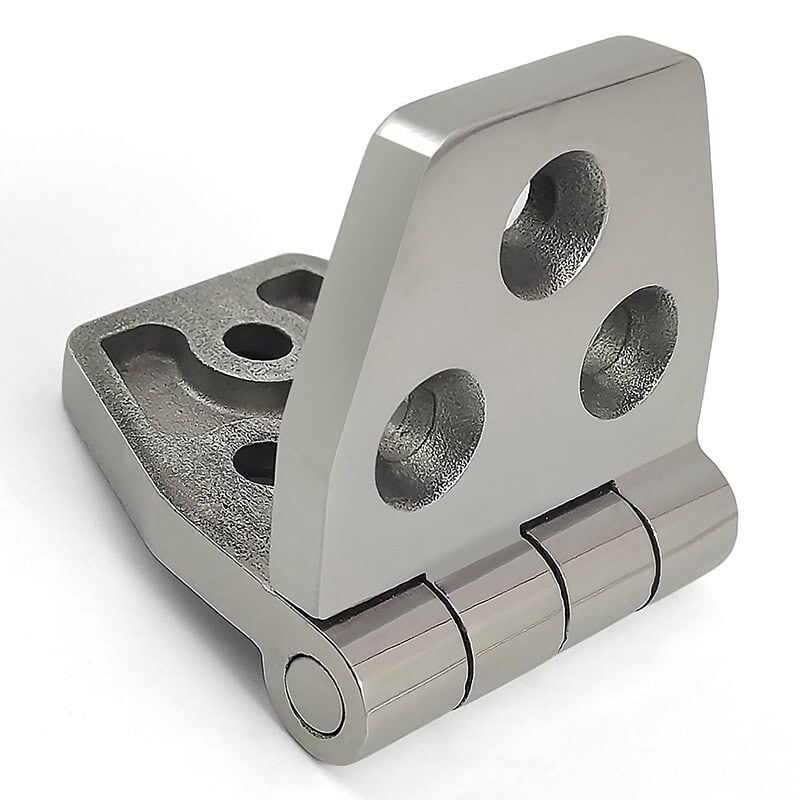

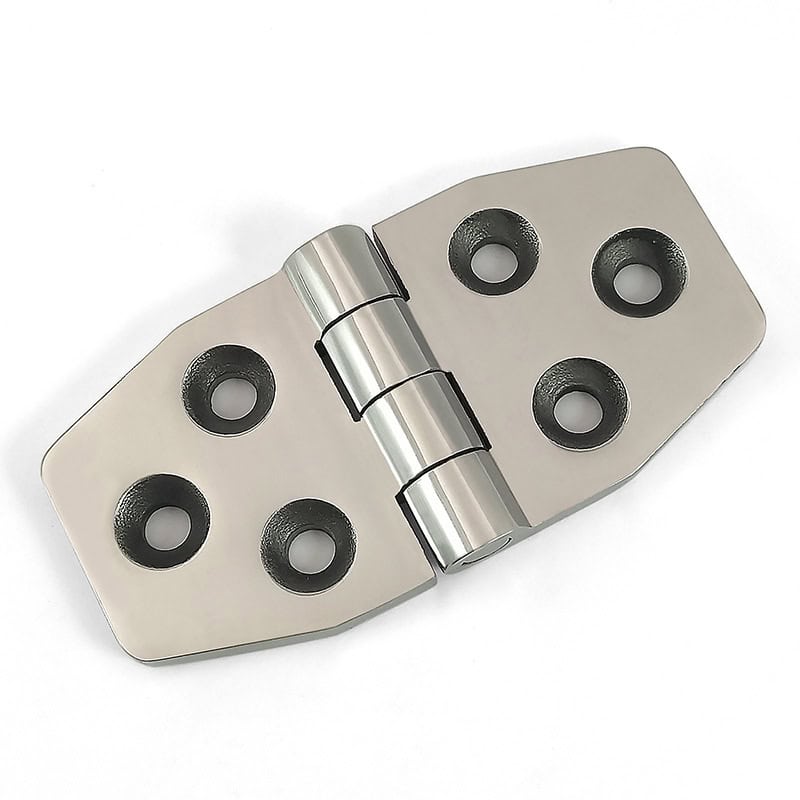

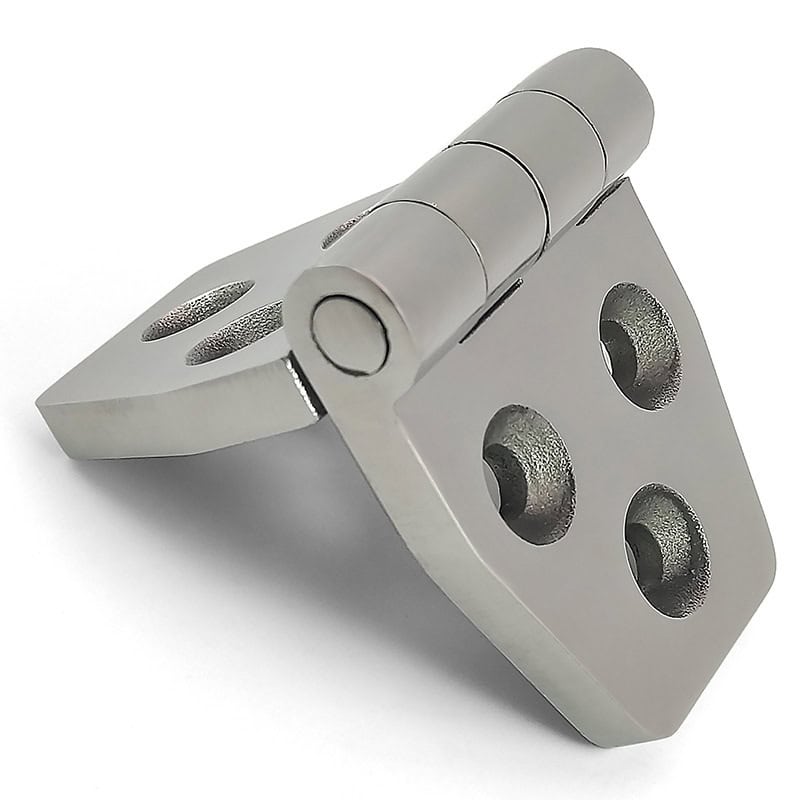

The IHINGES ML2-JL1014-1 Stainless Steel Butt Hinge is crafted from premium 304 stainless steel, offering excellent corrosion resistance and durability. With a mirror-polished finish, it delivers both a refined appearance and ease of cleaning. The hinge adopts a countersunk hole design, allowing screws to sit flush with the surface for a neat and professional installation. Each hinge is capable of supporting up to 40 kg per piece, making it ideal for medium-to-heavy duty applications in industrial and commercial environments.
Parameters
| Model No. | ML2-JL1014-1 |
|---|---|
| Material | 304 Stainless Steel |
| Surface Finish | Mirror Polished |

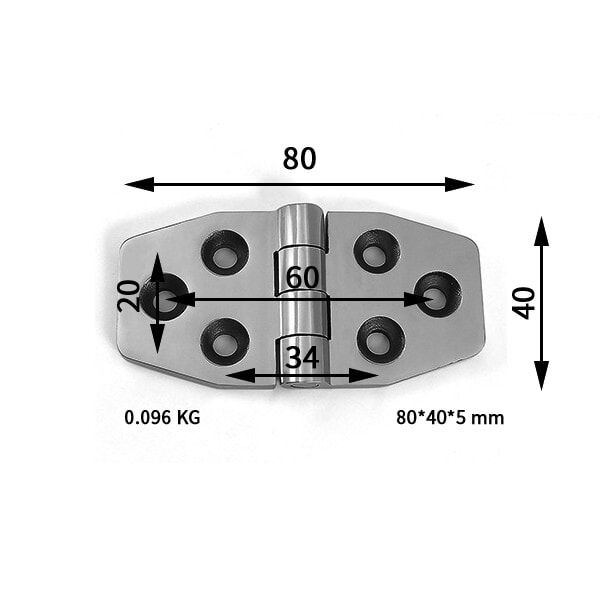

| Overall Size | 80 × 40 × 5 mm |
| Weight | 0.096 kg |
| Pin Diameter | 6 mm (estimated based on proportion) |
| Mounting Hole Type | Countersunk |
| Mounting Hole Diameter | 6 mm |
| Plate Thickness | 5 mm |
| Load Capacity | Up to 40 kg per hinge |
| Customization | Available (Mold cost involved) |
Features
-
High-Quality 304 Stainless Steel: Ensures superior rust resistance and strength.
-
Mirror Polished Surface: Smooth and elegant finish for enhanced aesthetics and easy cleaning.
-
Flush Installation: Countersunk mounting holes eliminate protrusions for a clean appearance.
-
Strong Load Capacity: Supports up to 40 kg per hinge, suitable for medium and heavy-duty panels.
-
Compact & Practical Design: Optimized for space-saving installations with reliable performance.
-
Customizable Options: Custom sizes and styles available upon request (mold fee required).
Application
The ML2-JL1014-1 hinge is widely applied in various industrial and commercial equipment, including:
-
Electrical and sheet metal enclosures
-
Industrial ovens and equipment doors
-
Constant temperature and humidity test chambers
-
Marine and outdoor equipment housings
-
Machinery access panels and protective covers
