Description

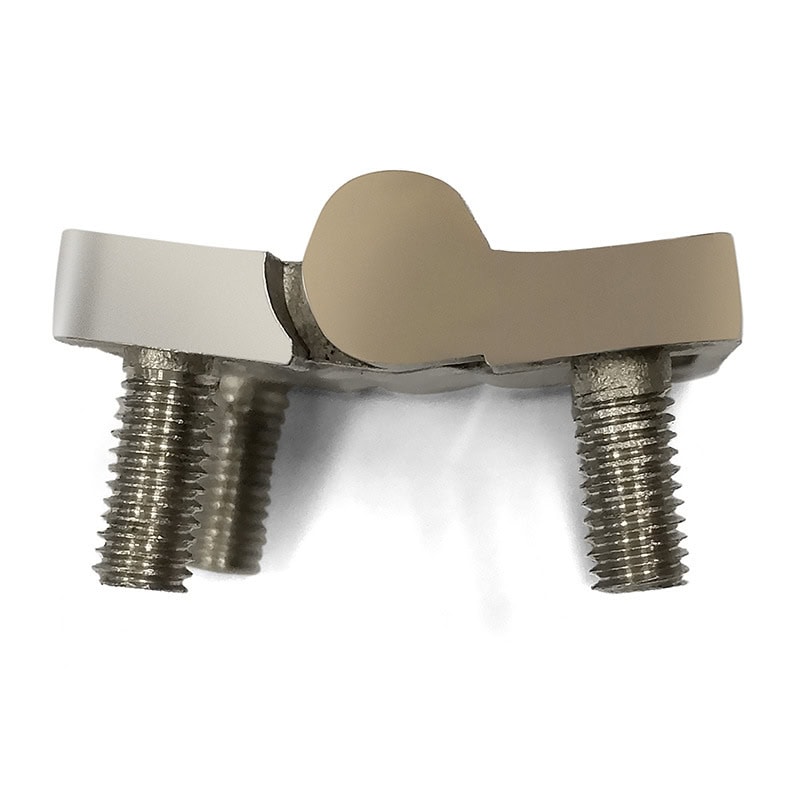

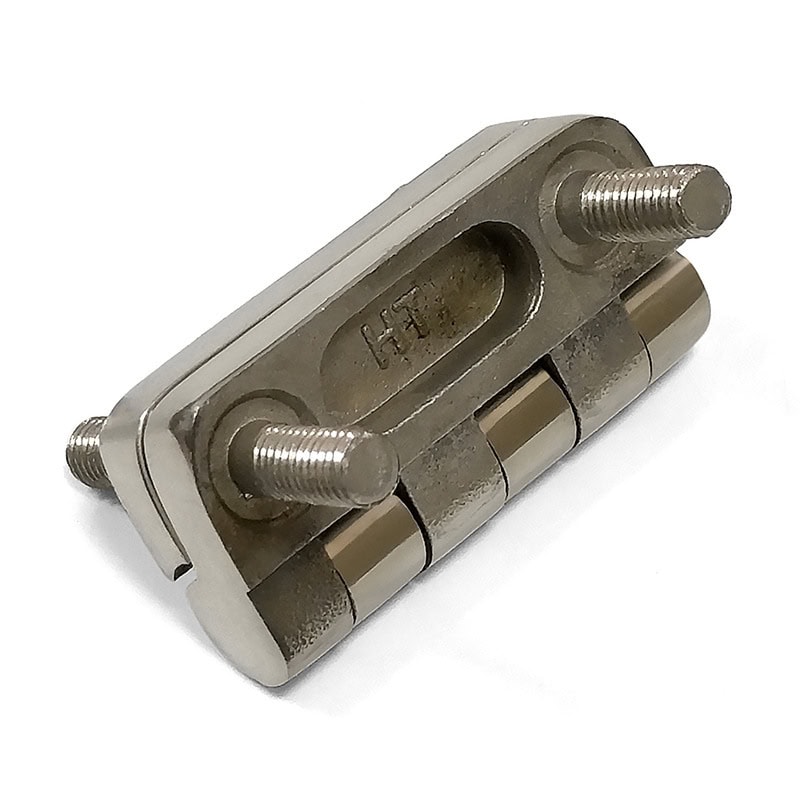

Model ML2-JL204 is a compact stainless steel hinge with a 42×32mm exterior dimension, specifically designed for industrial applications that demand both space efficiency and reliable mechanical strength. This model features M5×10mm threaded studs on the back, allowing for easy and concealed installation using M5 nuts (not included). The smooth, brushed finish delivers both corrosion resistance and a professional look, ideal for precision sheet metal enclosures and cabinets.
Parameters
| Item | Specification |
|---|---|
| Product Model | ML2-JL204 |

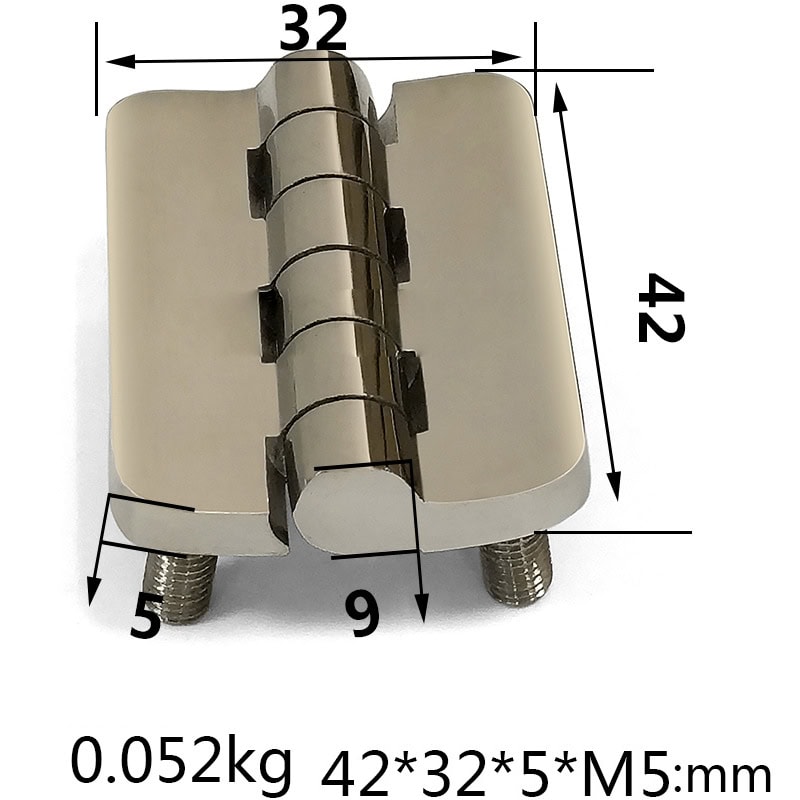

| Overall Dimensions | 42mm × 32mm |
| Thickness | 5mm |
| Material | 304 Stainless Steel |
| Surface Finish | Brushed / Polished |
| Pin Diameter | 9mm |
| Mounting Hole Type | M5 Threaded Studs |
| Stud Size | M5 × 10mm |

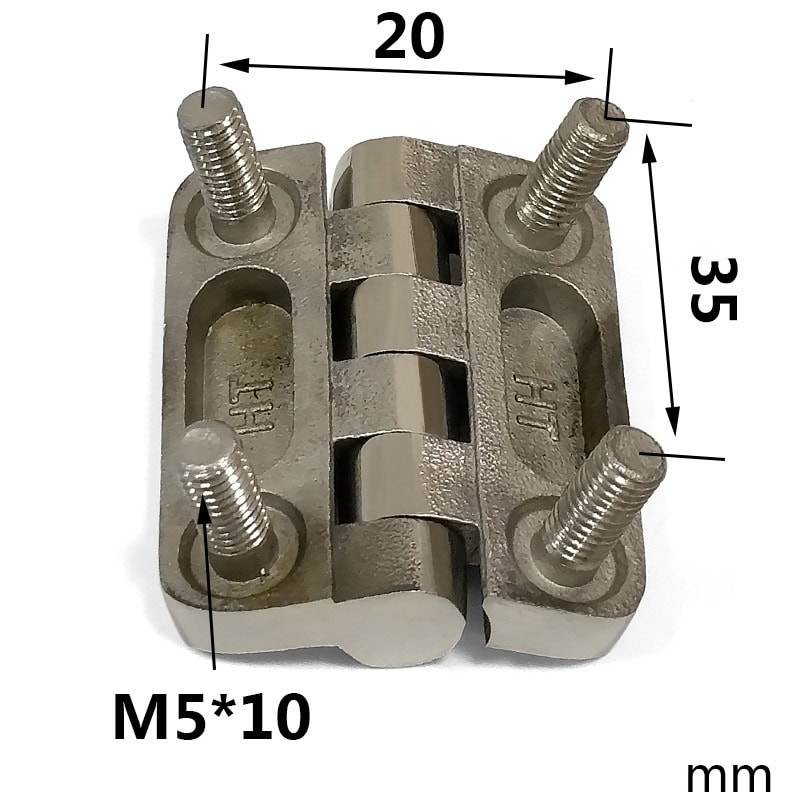

| Mounting Hole Spacing | 20mm × 35mm |
| Weight | 0.052 kg |
| Customization | Logo and stud length customizable |
Features
-
Compact Design: Small footprint ideal for limited-space installations in control boxes and electrical panels.
-
Time-Saving Installation: Pre-installed M5 studs for fast assembly using standard nuts.
-
Professional Finish: Brushed polish enhances visual quality while resisting fingerprints and surface damage.
-
Stable Mounting: Dual-stud layout (20×35mm) ensures firm positioning on thin metal or composite panels.
-
Customizable Options: Stud length and branding can be customized for OEM and private label orders.
Applications
-
Electrical and instrumentation boxes
-
Test equipment panels
-
Lightweight stainless steel enclosures
-
Laboratory device access doors
-
Compact sheet metal assemblies
Why Choose 304 Stainless Steel?
304 stainless steel is the most widely used stainless alloy, known for its excellent corrosion resistance, strength, and ease of fabrication. It performs well in a wide range of environments—including humid, chemical, and outdoor conditions—making it ideal for industrial hardware such as hinges. Additionally, 304 stainless steel maintains its structural integrity over time and does not require surface coating or rust-proofing treatments, reducing long-term maintenance costs.
