Description
The ML2-JL202 hinge features a robust 50x50mm structure made from high-quality 304 stainless steel, designed for industrial use where both durability and ease of installation are critical. With a brushed polished finish and integrated M6×12mm screw studs, this hinge simplifies the mounting process while offering a secure and concealed fixing solution. Users only need to prepare M6 nuts to complete installation, reducing labor time and improving assembly efficiency.
Parameters
| Item | Specification |
|---|---|
| Product Model | ML2-JL202 |

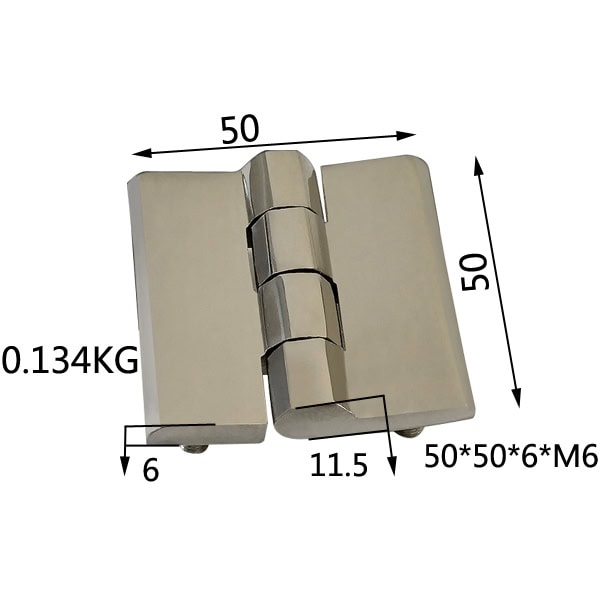

| Overall Dimensions | 50mm × 50mm |
| Thickness | 6mm |
| Material | 304 Stainless Steel |
| Surface Finish | Brushed / Polished |
| Pin Diameter | 11.5mm |
| Mounting Hole Type | M6 Threaded Studs |

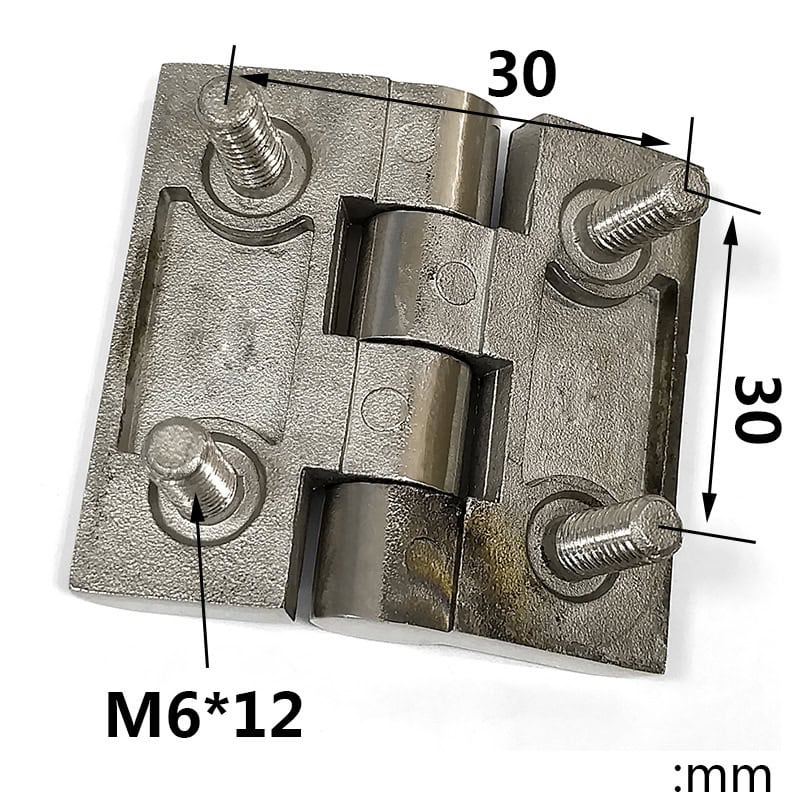

| Stud Size | M6 × 12mm |
| Weight | 0.134 kg |
| Customization | Stud length and logo available |
Features
-
High-Grade Material: Manufactured from 304 stainless steel for excellent corrosion resistance and strength in harsh environments.
-

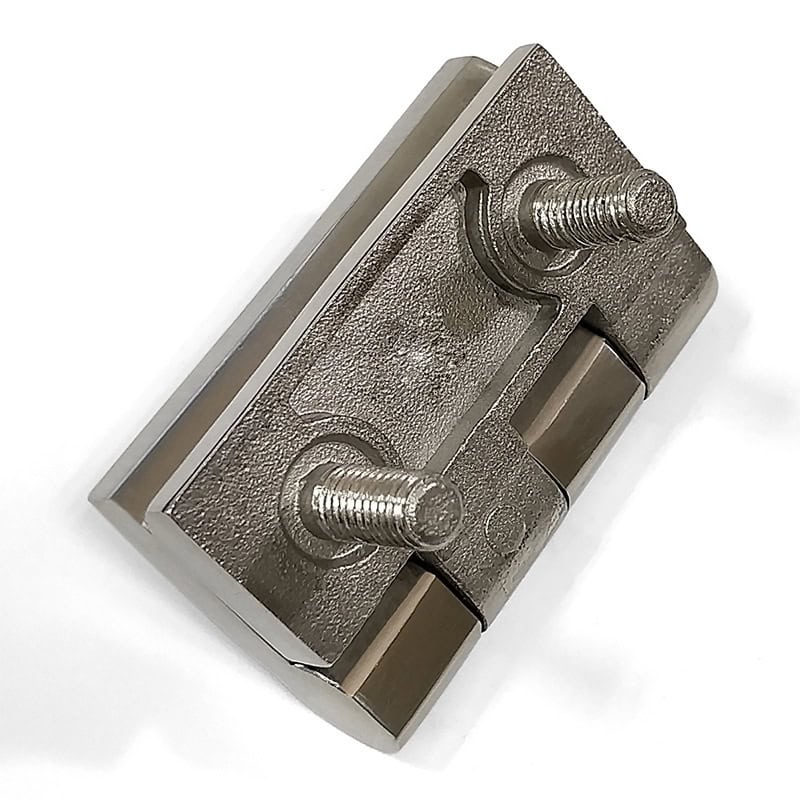

Time-Saving Installation: Pre-installed M6 × 12mm studs allow fast mounting—just pair with M6 nuts to secure.
-

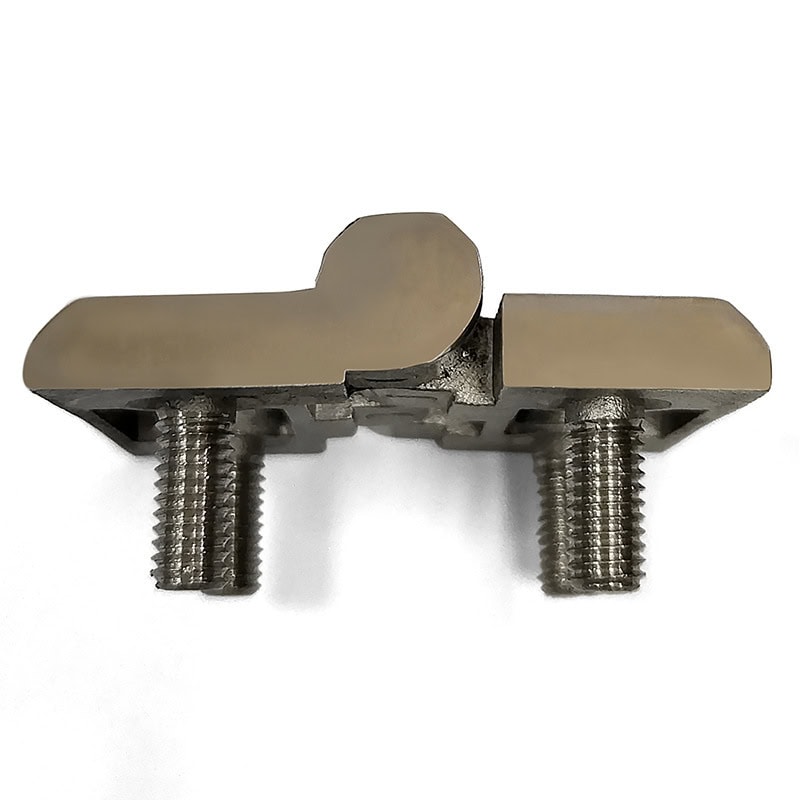

Solid and Concealed Mounting: Stud-mounted design provides a clean surface finish and increased structural integrity.
-
Large Size for Heavier Loads: With a 50×50mm footprint and 6mm thickness, it’s suitable for larger doors and access panels.
-
Customizable Design: Supports client branding and length adjustment of studs upon request.
Applications
-
Electrical and control cabinets
-
Industrial ovens and enclosures
-
Laboratory and testing chambers
-
Sheet metal doors and access hatches
-
Equipment housing and marine-grade enclosures
-
Climate control and humidity test chambers
