Description

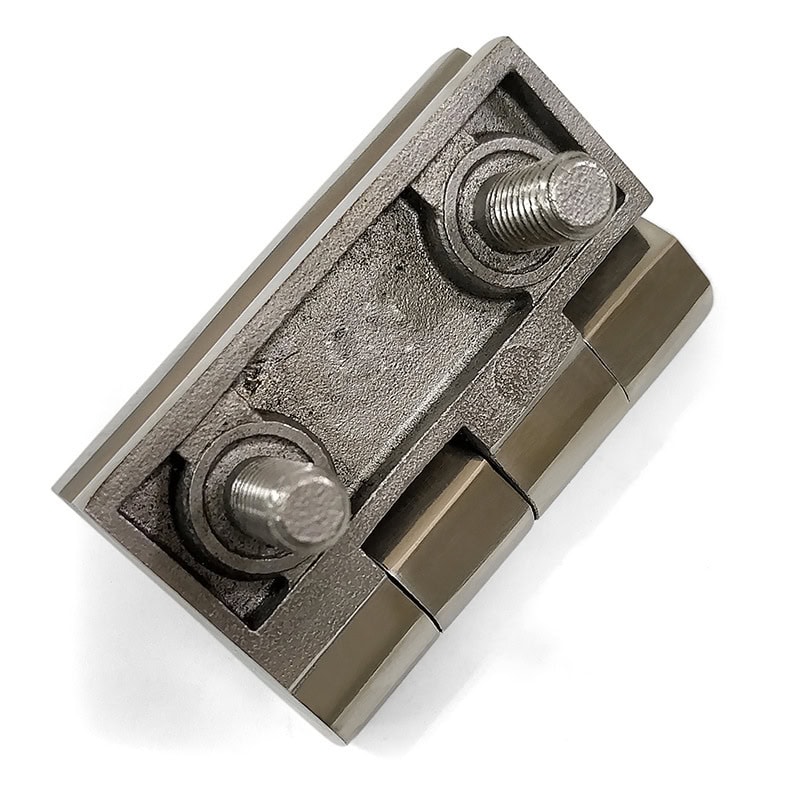

The ML2-JL203 hinge is engineered for heavy-duty industrial applications requiring enhanced strength and corrosion resistance. Made from premium 304 stainless steel and featuring a brushed polished finish, this hinge measures 60×60mm and includes integrated M8×14mm threaded studs for concealed and secure installation. This stud-mounted design not only provides excellent structural stability but also reduces installation time. Compatible with standard M8 nuts (not included), this model is ideal for large enclosures, equipment doors, and access panels.
Parameters
| Item | Specification |
|---|---|
| Product Model | ML2-JL203 |

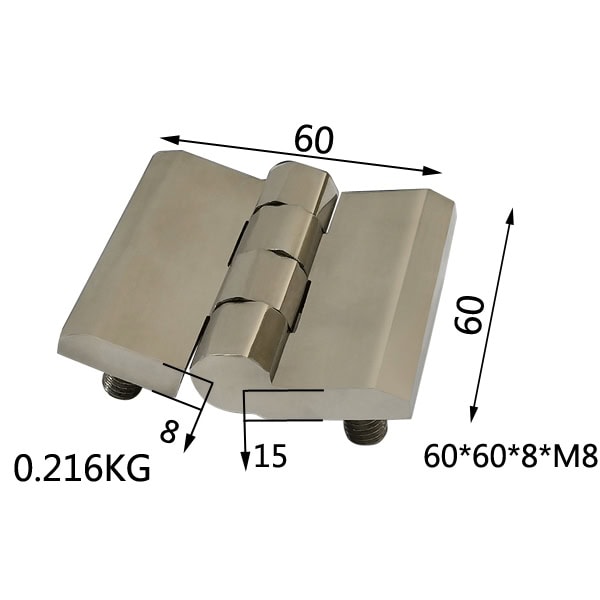

| Overall Dimensions | 60mm × 60mm |
| Thickness | 8mm |
| Material | 304 Stainless Steel |
| Surface Finish | Brushed / Polished |
| Pin Diameter | 15mm |
| Mounting Hole Type | M8 Threaded Studs |

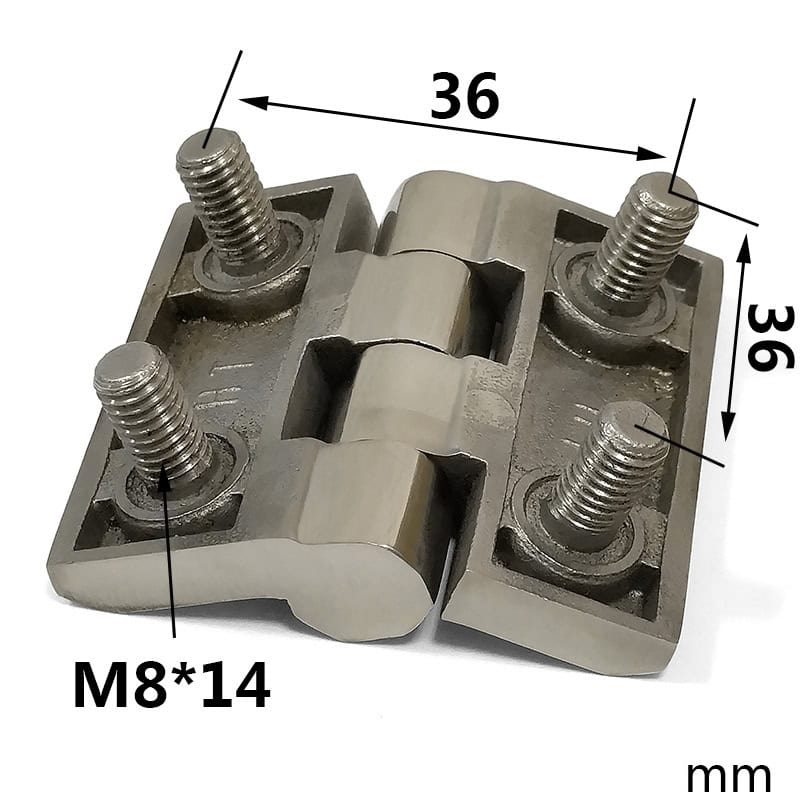

| Stud Size | M8 × 14mm |
| Weight | 0.216 kg |
| Customization | Stud length and logo available |
Features
-
Industrial-Grade Stainless Steel: Built with 304 stainless steel to resist corrosion, rust, and deformation under heavy load.
-
Reinforced Design: Thicker 8mm hinge body and 60×60mm panel provide added strength for large and heavy doors.
-
Quick Installation: Equipped with M8×14mm studs for fast and firm installation using M8 nuts (customer provided).
-
Flush and Clean Appearance: Concealed mounting provides a smooth surface ideal for equipment or enclosure exteriors.
-
Customizable Options: Available with OEM logo service and optional stud length changes based on project needs.
Applications
-
Industrial oven doors and access panels
-
Climate and environmental test chambers
-
Marine and outdoor-grade electrical cabinets
-
Large control boxes and sheet metal enclosures
-
Equipment access doors requiring heavy-duty hinges
