Description
This 304 stainless steel hinge with integrated screw studs offers a compact 40x40mm form factor, ideal for secure and durable installations in industrial environments. Designed for high-precision sheet metal enclosures, cabinets, and electrical boxes, it ensures a flush and stable fit with hidden mounting screws for a clean, professional appearance. Its robust stainless steel construction provides excellent corrosion resistance, making it suitable for indoor and outdoor applications.
Parameters
| Item | Specification |
|---|---|
| Model | ML2-JL201 |

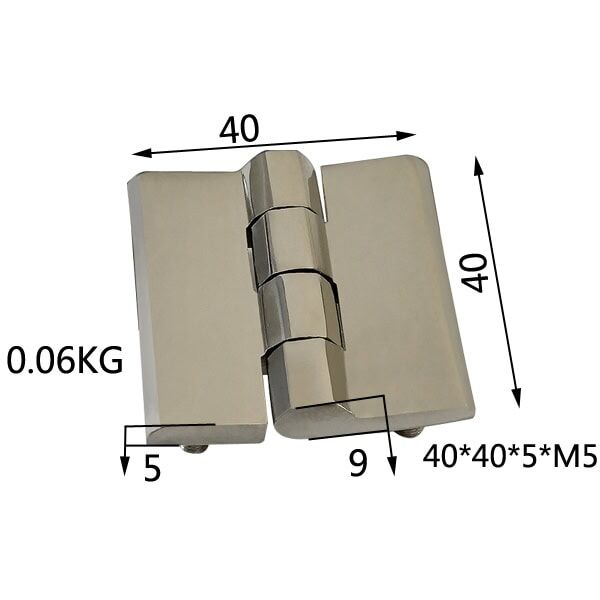

| Overall Dimensions | 40mm × 40mm |
| Thickness | 5mm |
| Material | 304 Stainless Steel |
| Surface Finish | Polished / Natural Stainless Finish |
| Pin Diameter | 9mm |
| Mounting Hole Type | M5 Threaded Studs |
| Stud Size | M5 × 12mm |
| Weight | 0.06 kg |
| Customization | Stud length and logo available |
Features
-
Durable Stainless Steel Construction: Made from 304-grade stainless steel for superior rust resistance and strength.
-
Compact 40×40mm Design: Ideal for small enclosures and installations requiring high strength in limited space.
-

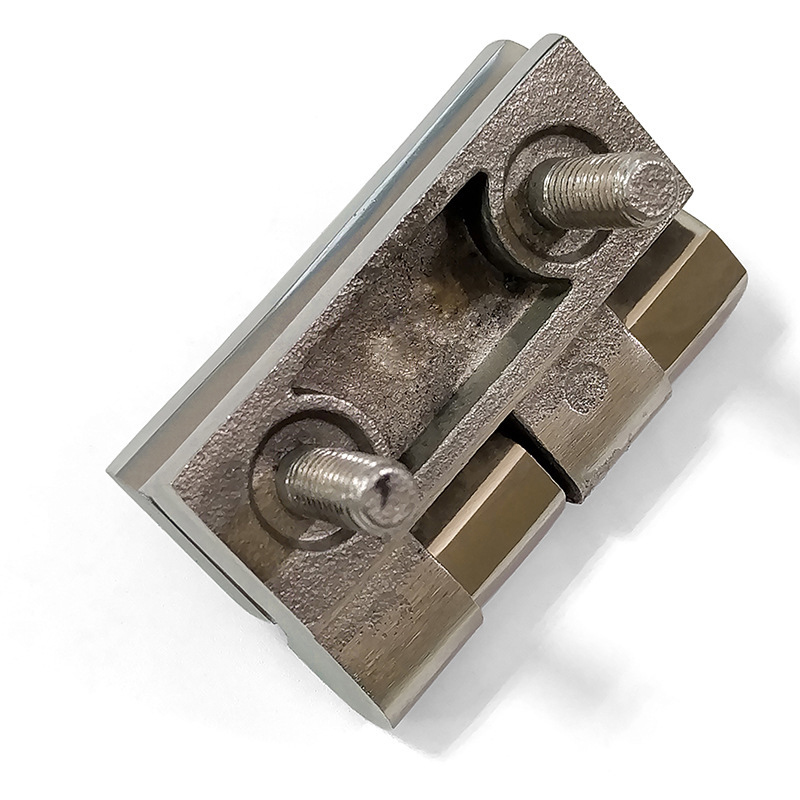

Concealed Mounting: Comes with M5 screw studs (12mm length) on the back for hidden and secure installation.
-
Customizable Options: Stud length and branding can be customized based on client requirements.
-
Corrosion Resistant: Suitable for use in humid or corrosive environments, including outdoor applications.
Applications
-
Electrical control panels and boxes
-
Sheet metal enclosures
-
Laboratory and test equipment
-
Industrial cabinets and switchgear
-
Stainless steel containers and access doors
-
Marine and outdoor utility boxes
