Description
Model ML2-JL602-4R/L is a removable pin industrial hinge made from premium-grade 304 stainless steel. Measuring 100×100×6mm and weighing 0.46kg, this hinge supports up to 60kg per piece and is designed for use on heavy-duty equipment doors, panels, and enclosures. The hinge comes in left-hand and right-hand versions, allowing for flexible installation on either side of the door. Its mirror-polished finish enhances both durability and aesthetics, making it suitable for environments that demand both strength and visual appeal.
Parameters

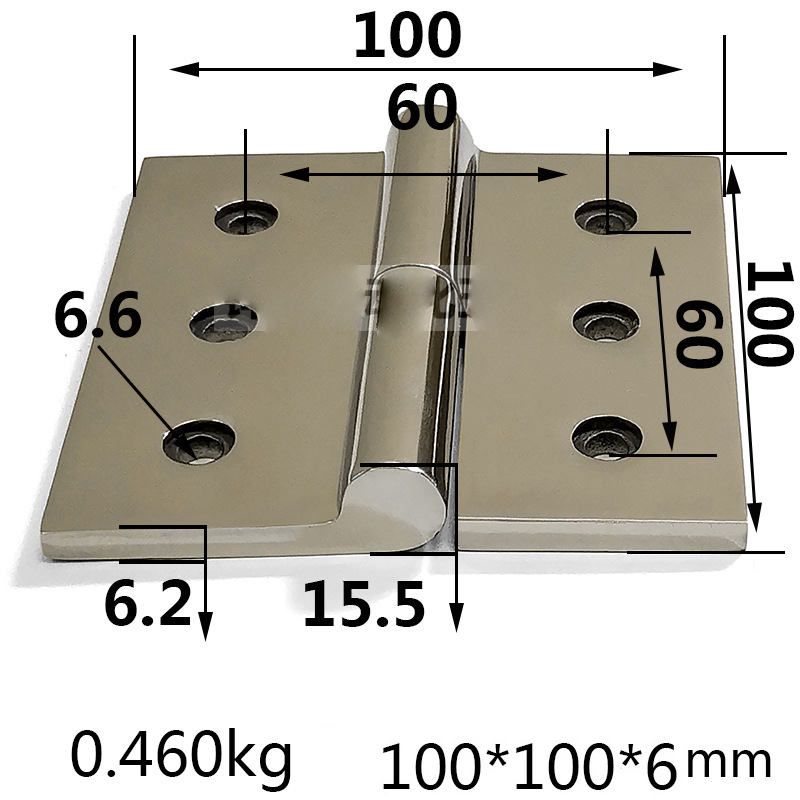

| Item | Specification |
|---|---|
| Product Model | ML2-JL602-4R / ML2-JL602-4L |
| Overall Dimensions | 100mm × 100mm |
| Thickness | 6mm |
| Material | 304 Stainless Steel |
| Surface Finish | Mirror Polished |
| Pin Type | Removable |
| Pin Diameter | 15.5mm |
| Load Capacity | 60kg per hinge |
| Mounting Hole Type | 6 Countersunk Holes |
| Hole Diameter | Ø6.6mm |
| Weight | 0.460 kg |
| Customization | Logo, dimensions, hole spacing |
Features
-

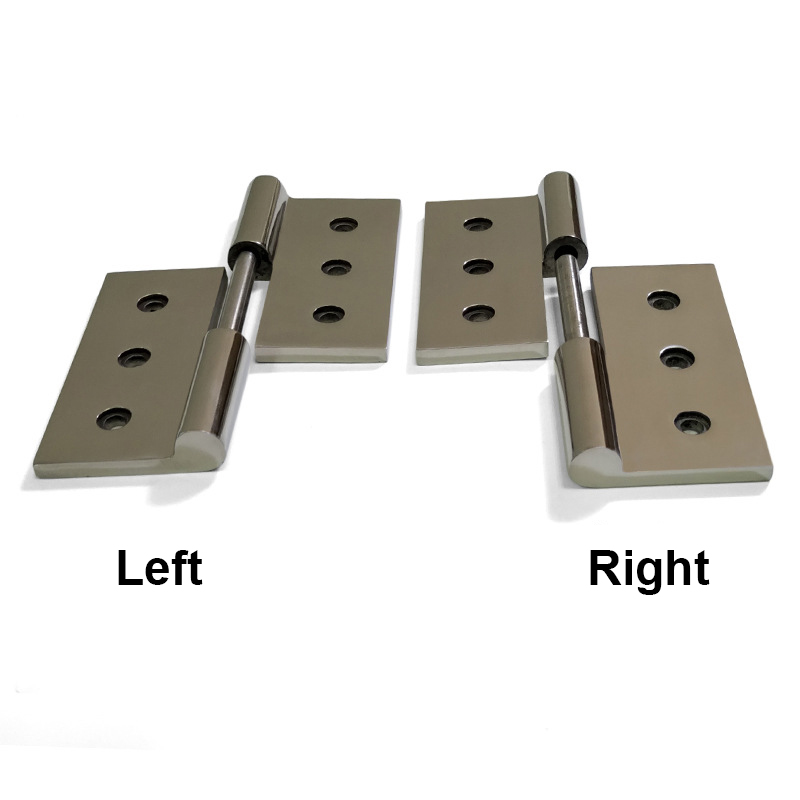

Handed Design: Available in left-hand and right-hand models for specific installation needs (L/R designation).
-
Removable Pin: Allows quick detachment of doors or panels for maintenance or transport.
-
High Load Capacity: Supports up to 60kg per hinge, ideal for medium to heavy industrial doors.
-
Premium Finish: Mirror-polished surface enhances corrosion resistance and maintains a clean, professional look.
-
Secure Mounting: Six precision countersunk holes (Ø6.6mm) ensure strong and flush attachment.
Applications
-
Industrial machinery access doors
-
Stainless steel electrical enclosures
-
Equipment cabinets and large box covers
-
Food processing or cleanroom installations
-
Marine and high-humidity environments
Why Choose a Removable Hinge Design?
Removable hinges are particularly beneficial when working with large or heavy panels that are difficult to handle during installation or maintenance. By separating the door from the frame, installers can independently secure each part, then simply insert the pin to connect them. This greatly improves installation efficiency, safety, and maintenance accessibility—making it ideal for dynamic industrial settings.
