Description

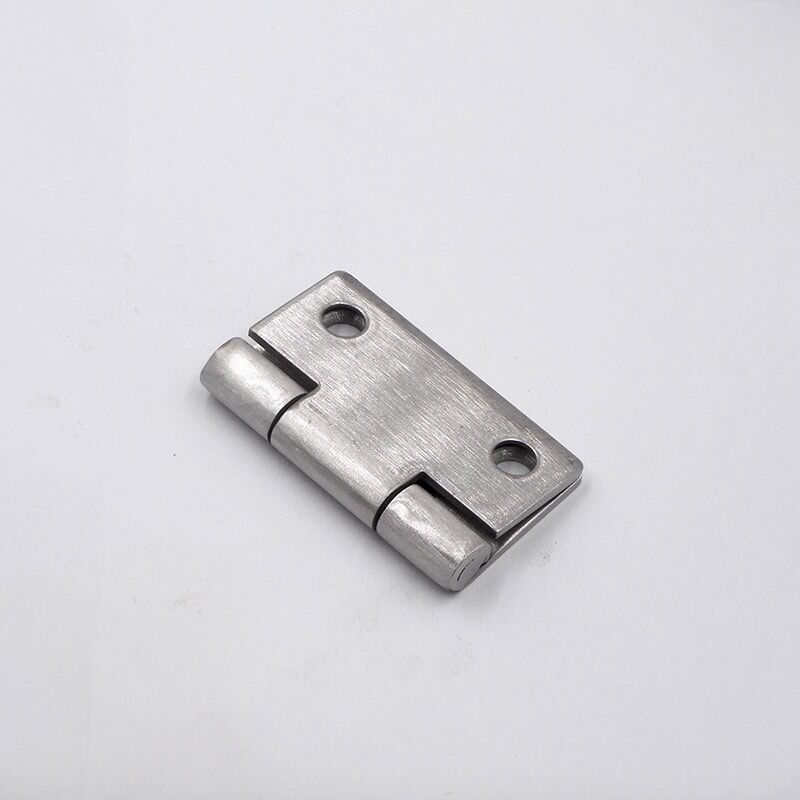

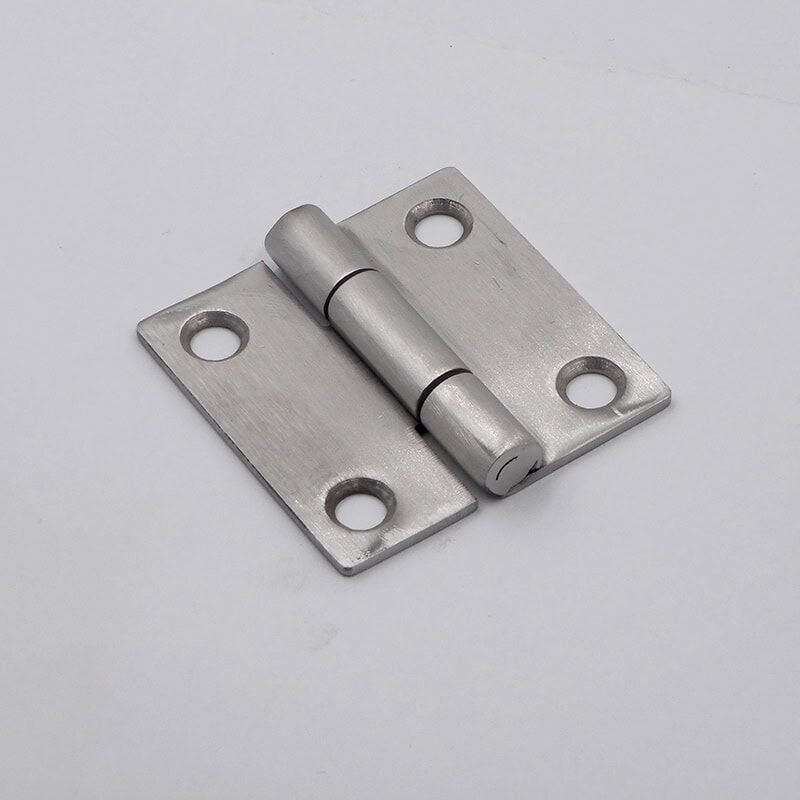

Model ML2-JL402-1 is a compact and practical industrial hinge manufactured from high-quality 304 stainless steel sheet with a 2mm thickness, formed by precision stamping. Designed for lightweight doors, panels, and enclosures, this hinge offers an ideal balance between strength and economy. The surface is treated with a brushed finish for enhanced corrosion resistance and a clean, matte appearance. Featuring four mounting holes (Ø6.5mm) and a welded pin on one end, this model ensures secure, long-term operation in industrial environments.
Parameters

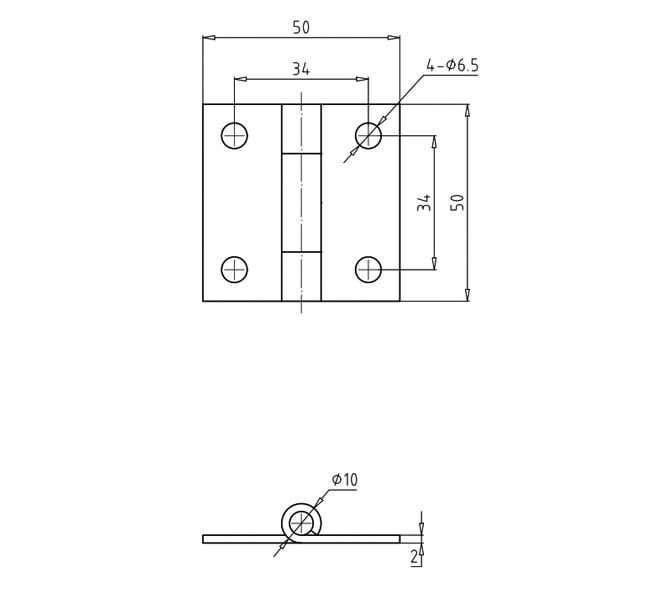

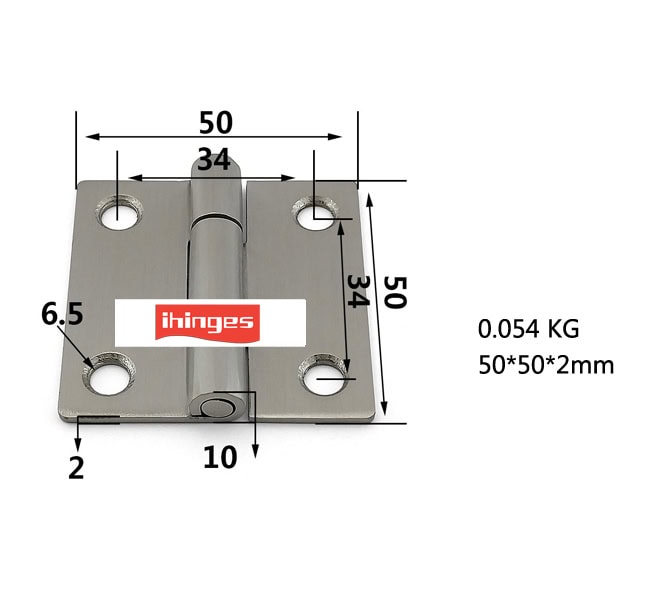

| Item | Specification |
|---|---|
| Product Model | ML2-JL402-1 |
| Overall Dimensions | 50mm × 50mm |
| Thickness | 2mm |
| Material | 304 Stainless Steel |
| Surface Finish | Brushed / Satin |
| Pin Diameter | 10mm |
| Pin Type | Welded on one end |
| Mounting Hole Diameter | Ø6.5mm |
| Mounting Holes | 4 |
| Weight | 0.054 kg |
| Customization | Logo, hole size, and finish available |
Features
-
Stamped 304 Stainless Steel: Precision-formed from 2mm thick plate for consistent strength and durability.
-
Brushed Finish: Matte surface reduces glare and fingerprints while improving corrosion resistance.
-
Compact Size: 50×50mm body suitable for small to medium-sized enclosures or covers.
-
Secure Mounting: Four countersunk holes (6.5mm diameter) provide firm attachment to metal or composite surfaces.
-
Lightweight Design: Only 0.054kg per piece, ideal for applications requiring reliable but low-weight solutions.
Applications
-
Control and distribution boxes
-
Stainless steel electrical enclosures
-
Access panels in machinery or equipment
-
Medical and lab device covers
-
Instrument cabinets and switch boxes

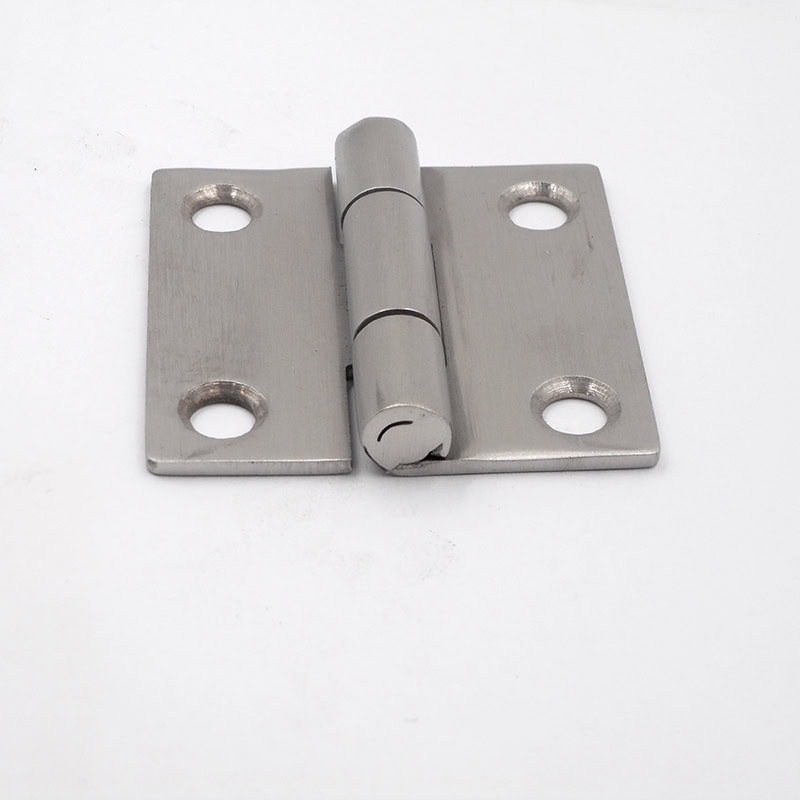

Why Weld One End of the Hinge Pin?
The hinge pin in model ML2-JL402-1 is welded to one of the hinge leaves, which prevents the pin from sliding out or loosening during use. This design enhances the structural integrity of the hinge, ensures long-term reliability, and eliminates the need for additional securing components like clips or caps. It’s especially useful in applications involving frequent vibrations or movement, where traditional loose-pin hinges may gradually fail.
