Description

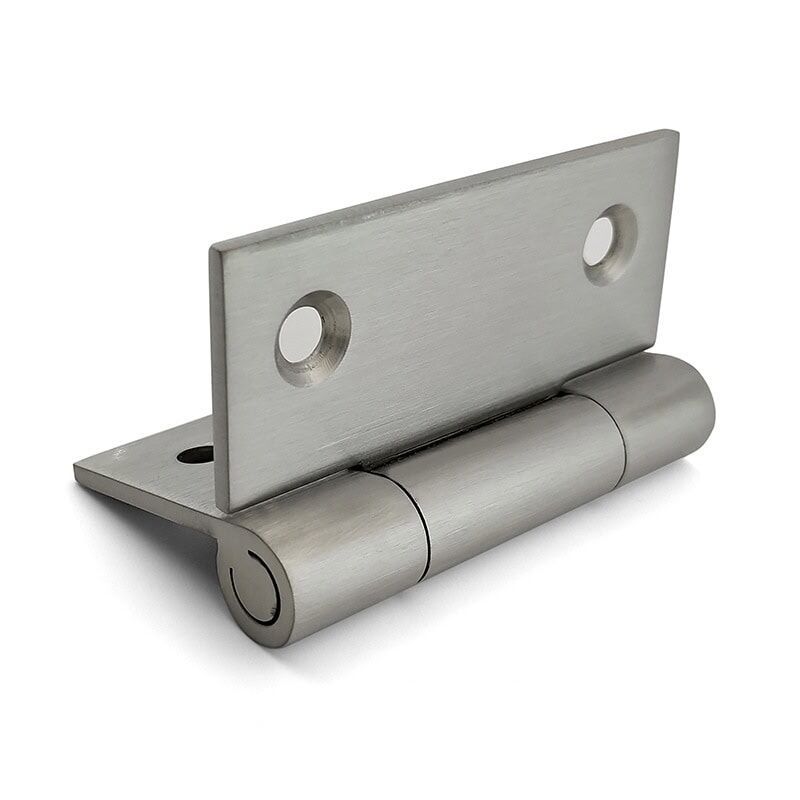

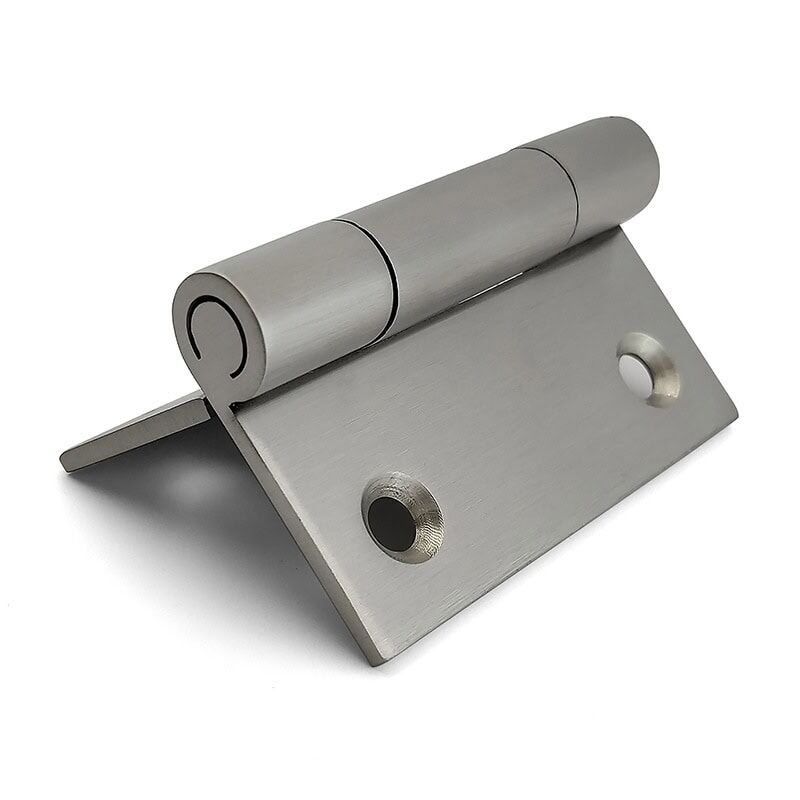

Model ML2-JL402-2 is a mid-sized industrial hinge made from 3mm thick 304 stainless steel, formed by high-precision stamping. This hinge is designed to provide enhanced strength while maintaining a compact footprint, making it ideal for medium-load applications. With a brushed satin finish, four countersunk mounting holes, and a welded hinge pin on one end, this hinge delivers both structural reliability and clean appearance. Each hinge supports up to 35kg of static load and is suitable for various industrial enclosures, access panels, and machine doors.
Parameters

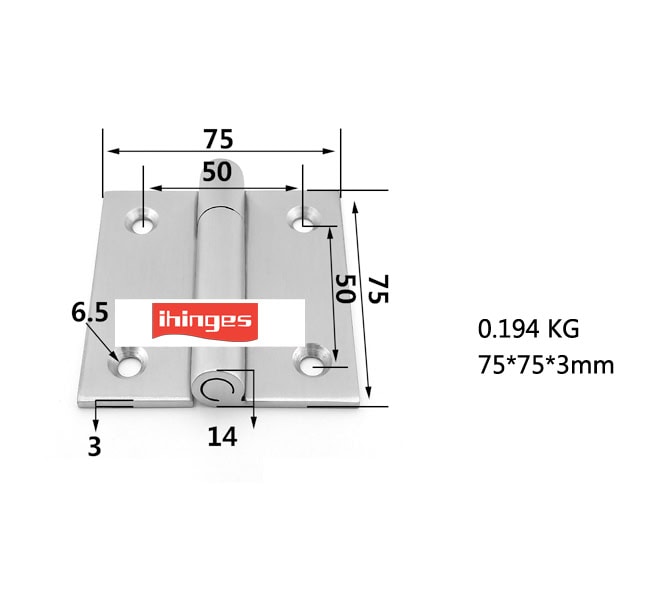

| Item | Specification |
|---|---|
| Product Model | ML2-JL402-2 |

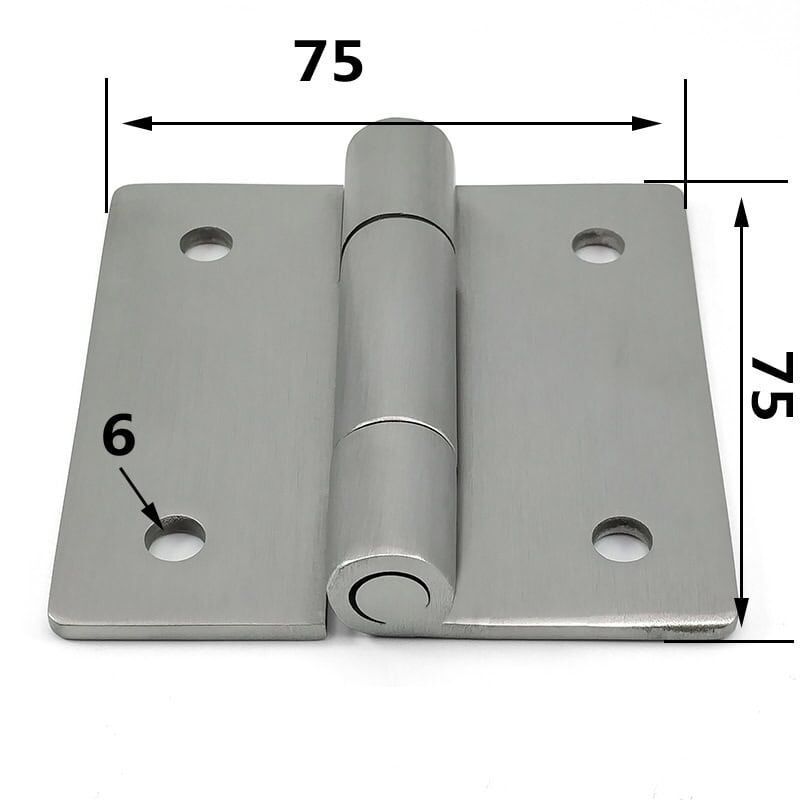

| Overall Dimensions | 75mm × 75mm |
| Thickness | 3mm |
| Material | 304 Stainless Steel |
| Surface Finish | Brushed / Satin |
| Pin Diameter | 14mm |
| Pin Type | Welded on one end |
| Mounting Hole Diameter | Ø6.5mm |
| Mounting Holes | 4 |
| Weight | 0.194 kg |
| Load Capacity | 35kg per hinge |
| Customization | Logo, size, finish, hole spacing |
Features
-
Stamped Stainless Steel Construction: Precision-pressed from 3mm thick 304 stainless steel for strength and corrosion resistance.
-
Welded Pin Design: One end of the pin is permanently welded to the hinge leaf to prevent accidental disassembly during operation.
-
Brushed Surface: Provides a refined industrial look while resisting corrosion and fingerprint marks.
-
Balanced Dimensions: The 75×75mm size fits a wide range of medium-sized panels and cabinet doors.
-
Reinforced Mounting: Four countersunk holes (6.5mm) ensure a secure and flush installation.
Applications
-
Medium-sized electrical and control panels
-
Mechanical equipment housings
-
Stainless steel cabinets and switch boxes
-
Industrial access hatches and doors
-
Machinery and instrumentation enclosures
Why Weld One End of the Hinge Pin?
The hinge pin is welded to one of the leaves, ensuring that it remains securely in place even under continuous use or vibration. This design eliminates the risk of the pin sliding out and helps maintain hinge alignment over time. It’s a reliable solution for industrial environments where durability, safety, and low maintenance are essential.
