Description
ML2-JL104 is a precision-engineered industrial hinge made from high-quality 304 stainless steel, designed for applications requiring both strength and aesthetics. With a compact 50×50mm footprint and a robust 4mm thickness, this hinge supports up to 50kg per unit, making it ideal for medium to heavy-duty enclosures and industrial access panels. The concealed countersunk mounting holes ensure a flush finish after installation, enhancing both security and appearance.

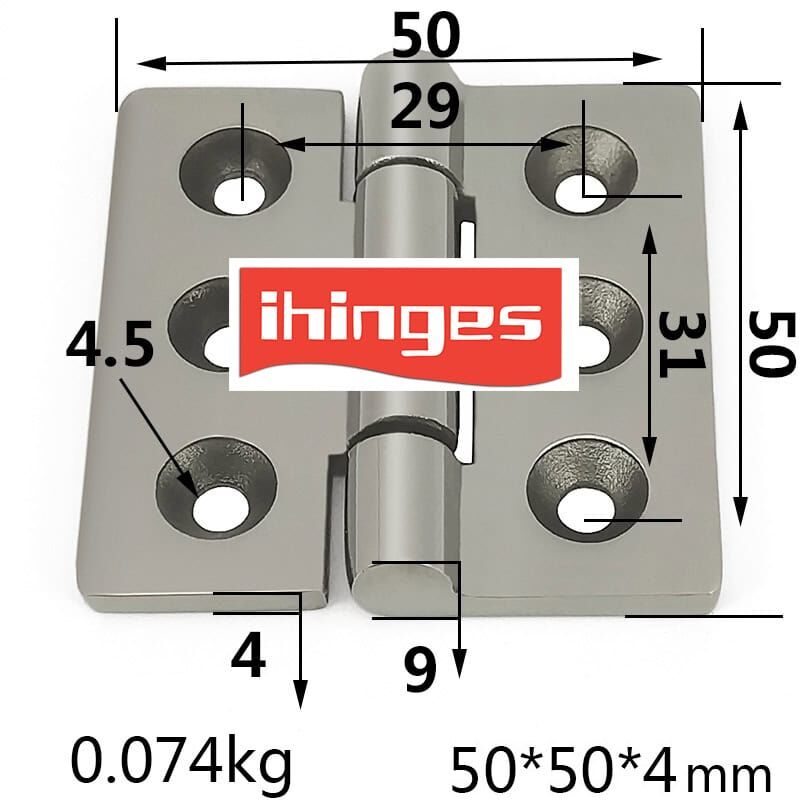

Parameters:
| Specification | Details |
|---|---|
| Model Number | ML2-JL104 |
| Material | 304 Stainless Steel |
| Surface Treatment | Brushed Finish |
| Overall Dimensions | 50mm × 50mm |
| Material Thickness | 4mm |
| Shaft Diameter | 9mm |
| Hole Diameter | 4.5mm |
| Mounting Hole Type | Countersunk |
| Number of Mounting Holes | 6 |
| Load Capacity (per hinge) | 50kg |
| Weight | 0.074kg |
Features:
-
High Strength Load Bearing: Capable of supporting up to 50kg per hinge, suitable for heavy-duty equipment panels.
-
304 Stainless Steel Construction: Offers excellent corrosion resistance for long-term durability in harsh environments.
-
Concealed Mounting Design: Countersunk screw holes ensure a flush surface post-installation, minimizing snagging or visual interference.
-
Brushed Finish: Provides a clean, professional appearance while resisting fingerprints and surface abrasions.
-
Compact 50×50mm Design: Ideal for limited-space installations without compromising structural integrity.
-
6-Point Mounting: Ensures secure and stable attachment, even under frequent use.
Application:
The ML2-JL104 hinge is widely used in:
-
Industrial electrical cabinets and control boxes
-
Sheet metal enclosure assemblies
-
Test equipment access doors
-
Climate chamber and environmental testing equipment
-
Medical and laboratory devices requiring corrosion resistance
-
Marine and outdoor machinery enclosures
