Description

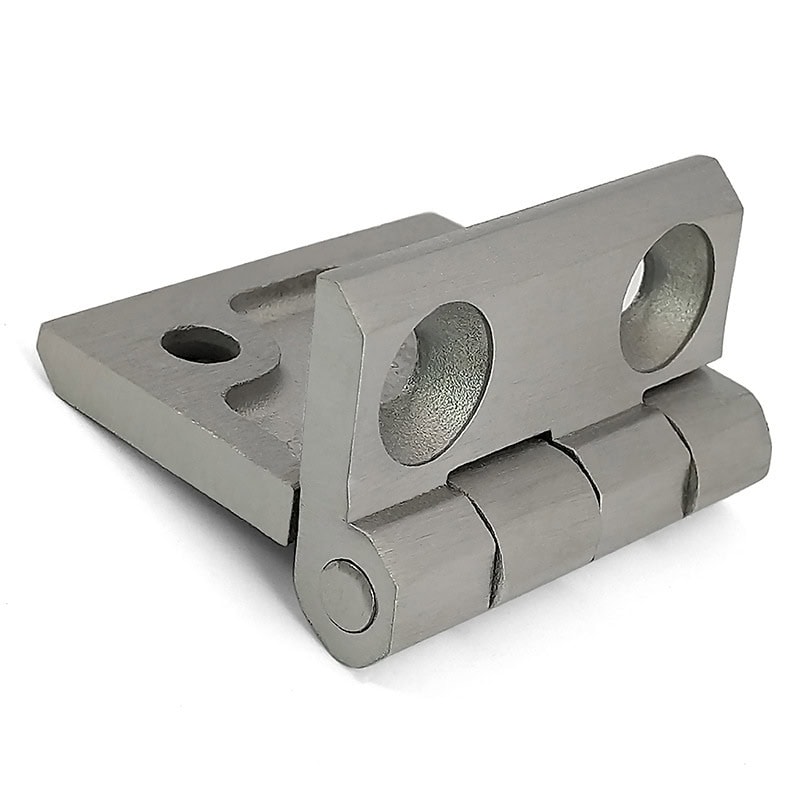

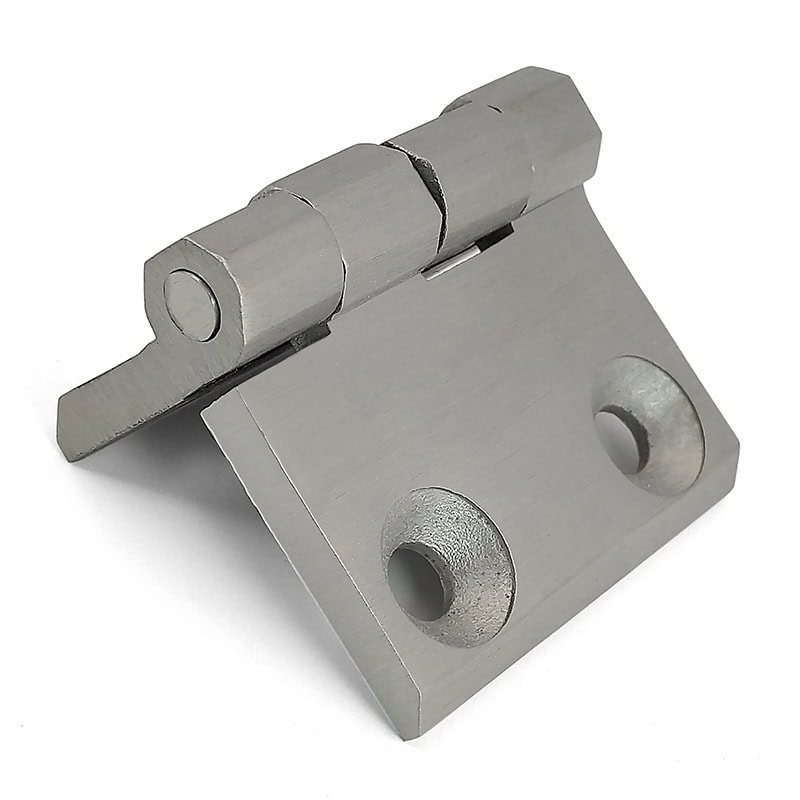

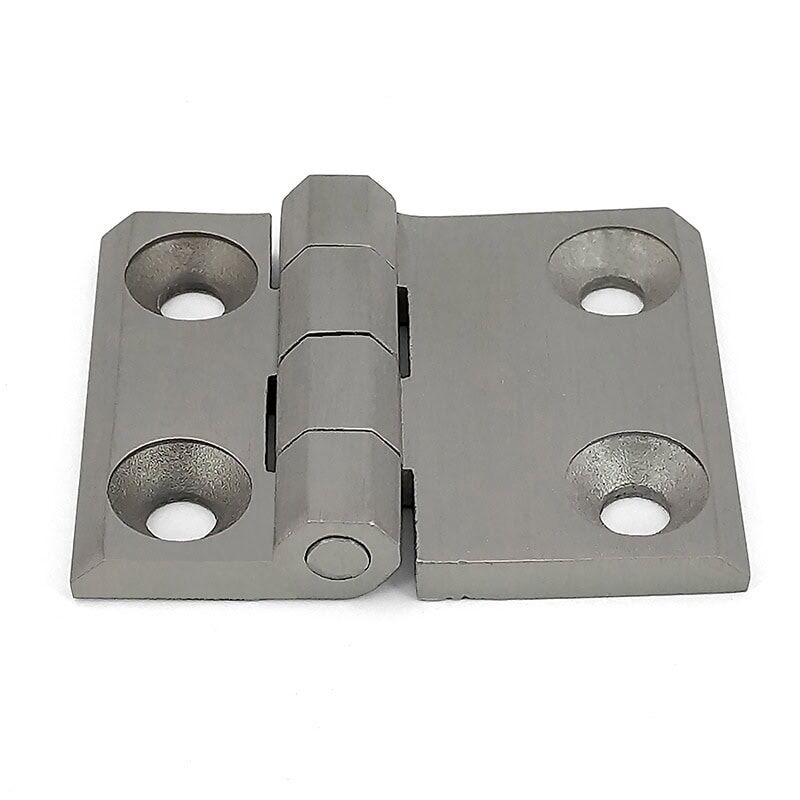

The ML2-JL1011-2 hinge is a precision-cast stainless steel hinge with a substantial thickness of 6mm, designed for heavy-duty industrial applications. Featuring a left-right asymmetrical structure and countersunk screw holes, this hinge ensures both structural integrity and a flush, secure installation. With a load-bearing capacity of up to 40kg per hinge, it is ideal for rugged environments such as outdoor electrical boxes, stainless steel enclosures, and industrial control cabinets.

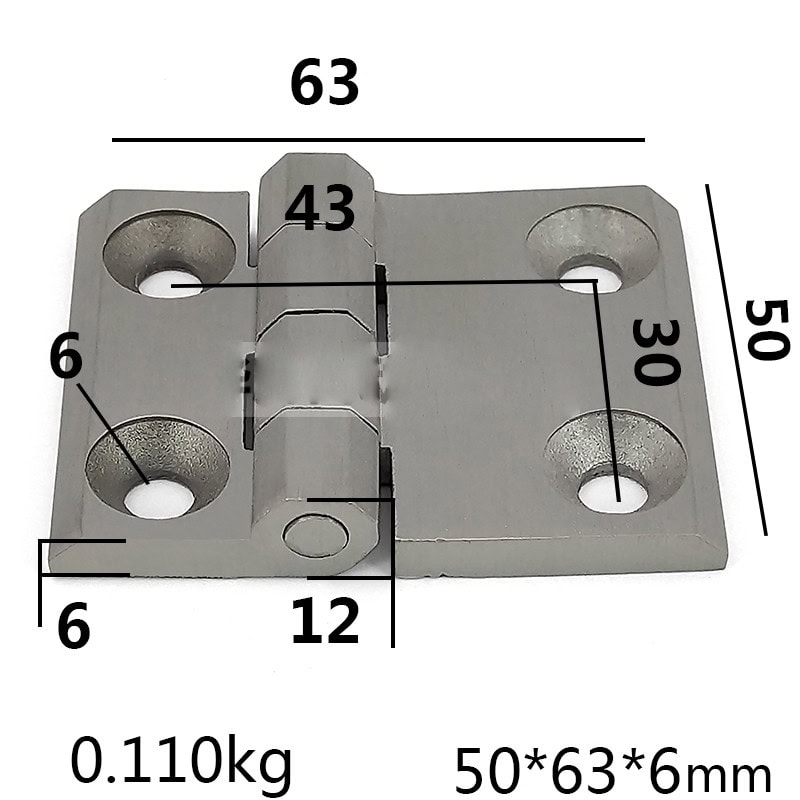

Parameters
| Parameter | Value |
|---|---|
| Model Number | ML2-JL1011-2 |
| Material | Cast Stainless Steel |
| Overall Size | 50 × 63 × 6 mm |
| Plate Thickness | 6 mm |
| Shaft Diameter | 12 mm |
| Left Wing Width | 43 mm |
| Right Wing Width | 20 mm |
| Mounting Hole Diameter | 6 mm |
| Vertical Hole Spacing | 30 mm |
| Weight | 0.110 kg |
| Structure | Asymmetrical |
| Mounting Type | Countersunk Holes |
| Load Capacity (Single) | 40 kg |
| Surface Finish | Brushed / Natural Cast Finish (Customizable) |
Features
-
Robust Cast Structure: Manufactured using casting technology for high strength and durability.
-
6mm Thick Design: Provides excellent load-bearing capability, ideal for heavy-duty applications.
-
Asymmetrical Layout: Designed to match door frame and door panel offset, improving installation fit and appearance.
-
Countersunk Mounting Holes: Ensures a clean, flush mount and prevents protrusion of screw heads.
-
High Load Capacity: Each hinge supports up to 40kg, suitable for industrial and outdoor use.
-
Corrosion-Resistant: Stainless steel body offers reliable performance in outdoor and high-humidity environments.
Application
This hinge is widely used in:
-
Electrical cabinets and switchgear boxes
-
Outdoor telecom and power distribution cabinets
-
Stainless steel enclosures for automation equipment
-
Industrial machinery access panels
-
Sheet metal cabinet structures
Its high strength and corrosion resistance make it ideal for applications that require both mechanical durability and environmental resistance.
Why Choose Cast Stainless Steel Hinges Over Stamped Hinges?
Cast stainless steel hinges, like the ML2-JL1011-2, offer significantly higher strength, better dimensional stability, and a more robust structure than traditional stamped hinges. Casting allows for thicker, more complex shapes and enhanced load-bearing capabilities. While stamped hinges are suitable for lightweight or cost-sensitive applications, cast hinges excel in environments that demand long-term reliability, resistance to deformation, and heavy-duty performance.
