Description
The IHINGES ML2-JL108 industrial hinge offers a compact yet heavy-duty solution for equipment door mounting and enclosure applications. Crafted from durable 304 stainless steel with a mirror-polished finish, this hinge is corrosion-resistant, aesthetically refined, and built to support up to 50kg per hinge. Its 65×55mm profile and 6mm thickness make it ideal for medium-duty enclosures requiring strength and symmetry. Featuring six 7mm countersunk holes in a left-right symmetrical design, it ensures easy, stable, and flush mounting.
Parameters:
| Specification | Details |
|---|---|
| Model Number | ML2-JL108 |
| Material | 304 Stainless Steel |
| Surface Treatment | Mirror Polished Finish |

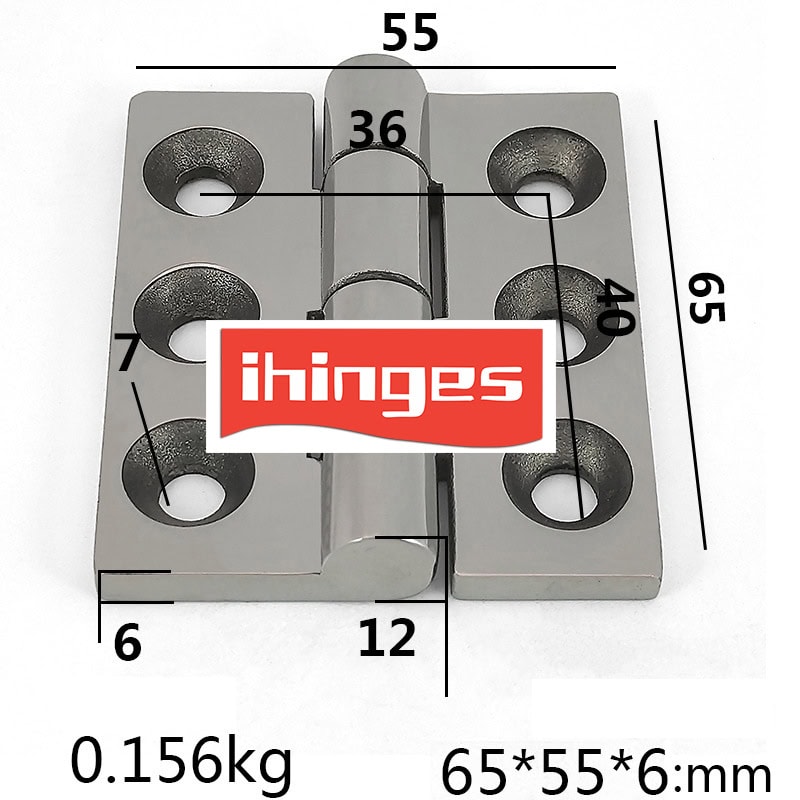

| Overall Dimensions | 65mm × 55mm |
| Material Thickness | 6mm |
| Shaft Diameter | 12mm |
| Hole Diameter | 7mm |
| Mounting Hole Type | Countersunk |
| Number of Mounting Holes | 6 |
| Load Capacity (per hinge) | 50kg |
| Weight | 0.156kg |
| Structure Type | Symmetrical Left-Right Design |
Features:
-
Reliable Load Capacity: Supports up to 50kg per hinge, suitable for moderate to heavy door applications.
-
304 Stainless Steel Material: Offers excellent resistance to rust, corrosion, and oxidation, ideal for industrial or outdoor use.
-
Mirror Polished Finish: Enhances both appearance and protection, delivering a clean, high-end surface.
-
Symmetrical Design: Ensures easy alignment and installation, especially in applications with mirrored or double-door structures.
-
6mm Thick Body: Provides robust mechanical stability under frequent opening and closing operations.
-
Flush Mounting with Countersunk Holes: Promotes a seamless, professional installation without surface protrusions.
Application:
The ML2-JL108 hinge is ideal for:
-
Instrumentation and test equipment housings
-
Medium-sized control boxes and electrical cabinets
-
Sheet metal door assemblies
-
Outdoor enclosures and stainless steel machinery
-
Laboratory or cleanroom equipment with aesthetic requirements
-
General industrial access panels
