Description

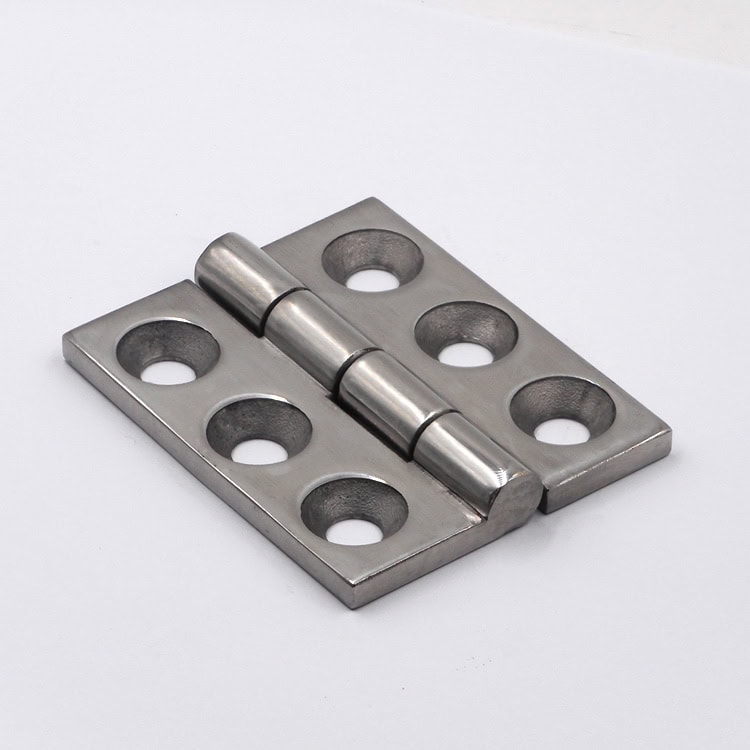

The IHINGES ML2-JL109 is a heavy-duty industrial hinge built from corrosion-resistant 304 stainless steel, designed for precision applications in demanding environments. With a compact yet sturdy 80×65mm body and a 6mm thickness, this hinge supports medium to heavy-duty installations. Its mirror-polished finish delivers a clean, modern appearance, while the 6 countersunk mounting holes with 8.5mm diameter provide stable and flush mounting. This model is ideal for manufacturers seeking reliable performance with the option for OEM customization.
Parameters:

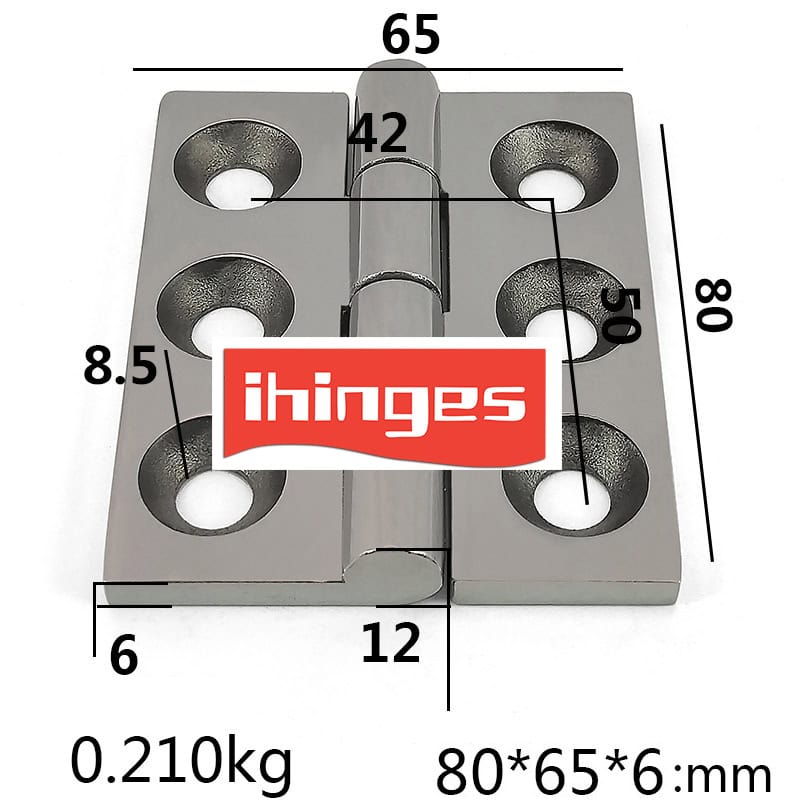

| Specification | Details |
|---|---|
| Model Number | ML2-JL109 |
| Material | 304 Stainless Steel |
| Surface Treatment | Mirror Polished Finish |
| Overall Dimensions | 80mm × 65mm |
| Material Thickness | 6mm |
| Shaft Diameter | 12mm |
| Hole Diameter | 8.5mm |
| Mounting Hole Type | Countersunk |
| Number of Mounting Holes | 6 |
| Load Capacity (per hinge) | Approx. 60kg |
| Weight | 0.210kg |
| Customization | Logo, Finish, Size Available |
Features:
-
Durable Load Performance: Designed to support up to 60kg per hinge, ideal for mid- to heavy-duty industrial applications.
-
High-Grade 304 Stainless Steel: Excellent rust and corrosion resistance, perfect for both indoor and outdoor environments.
-
Mirror Polished Finish: Clean, bright surface resists stains, scratches, and gives an aesthetic edge.
-
Flush Installation: Countersunk holes ensure that mounting screws do not protrude, improving safety and appearance.
-
OEM Ready: Supports customization including logo engraving, size modification, and finish options upon request.
-
Balanced Structure: 80×65mm layout with symmetric mounting ensures smooth operation and easy alignment.
Application:
ML2-JL109 is widely used in:
-
Sheet metal enclosures and custom equipment housings
-
Electrical boxes, control panels, and access doors
-
Industrial ovens, test chambers, and mechanical equipment
-
Marine and transport equipment enclosures
-
OEM manufacturing where customization is required
