Description

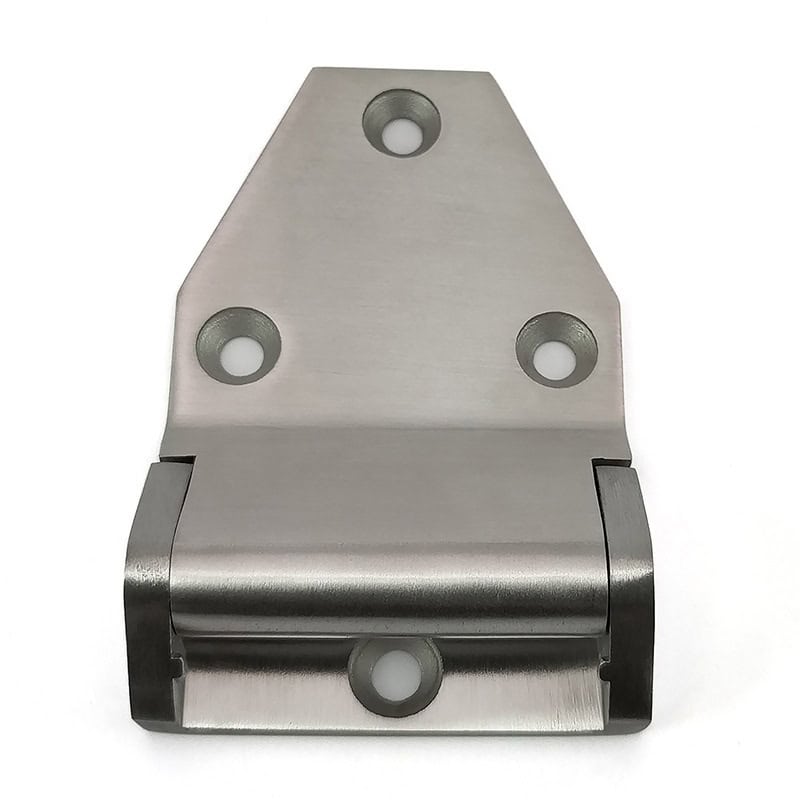

This heavy-duty hinge features an asymmetrical design, specifically developed to accommodate the size differences between the door panel and the door frame. Manufactured from 304 stainless steel, it offers high strength, excellent corrosion resistance, and durability under demanding industrial conditions. The IHINGES team also offers custom mold modifications to suit client-specific design and installation requirements.
Parameter
| Item | Specification |
|---|---|

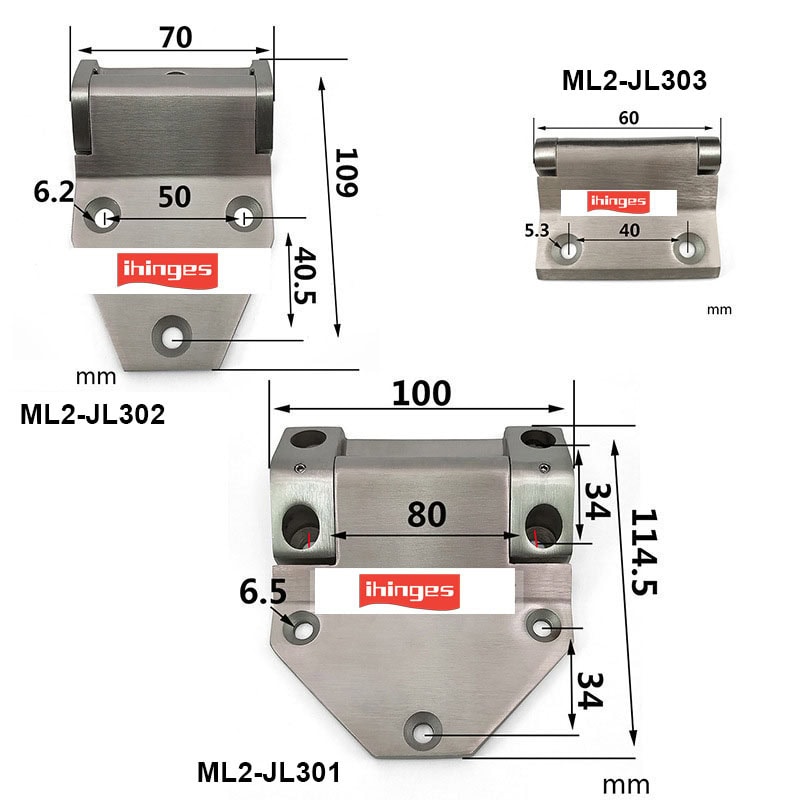

| Model | ML2-JL302 |
| Material | 304 Stainless Steel |
| Surface Treatment | Natural Brushed Finish |

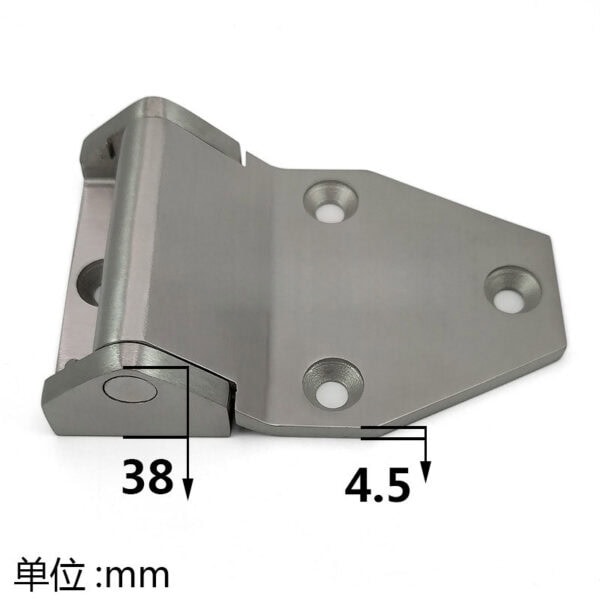

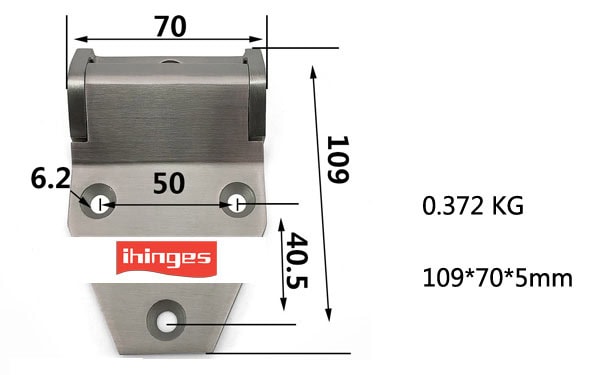

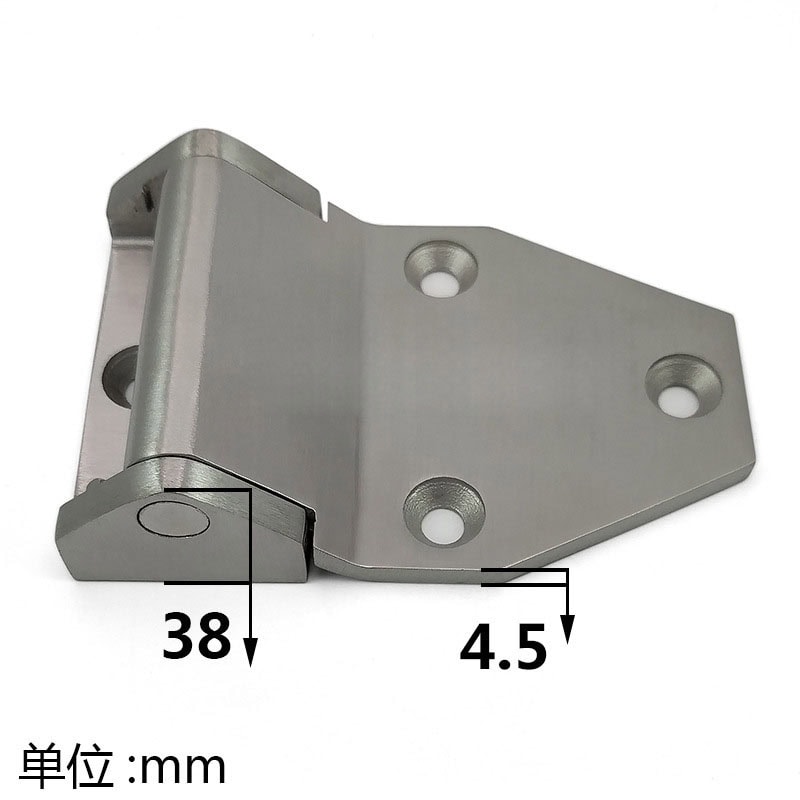

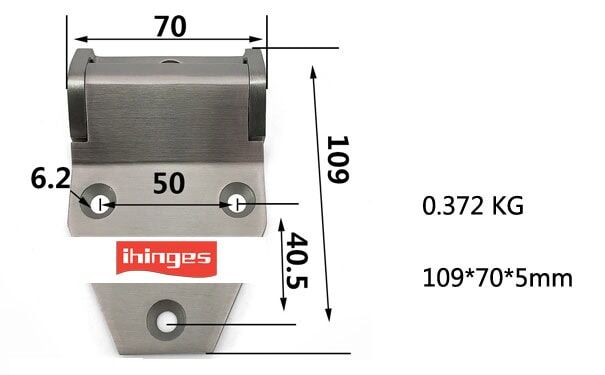

| Overall Dimensions | 109 × 70 × 5 mm |
| Hinge Width (Open) | 70 mm |
| Hinge Length | 109 mm |
| Mounting Hole Diameter | Ø6.2 mm |
| Distance Between Holes | 50 mm |
| Door Panel Mounting | 3 Countersunk Holes |
| Weight | 0.372 kg |
| Load Capacity | Up to 110 kg per hinge |
| Design | Asymmetrical Left-Right Structure |
| Customization | Logo, dimensions, hole pattern, mold alteration available |
Features
-
Asymmetrical Design: Tailored to fit door panels and frames with mismatched dimensions, ensuring a secure and aesthetic fit.
-
304 Stainless Steel Casting: Superior corrosion resistance and long-term durability, ideal for industrial and outdoor applications.
-
Heavy Load Capacity: Each hinge supports up to 110 kg, making it suitable for heavy-duty installations.
-
Precision Countersunk Mounting: Provides a flush finish and reliable fastening with three countersunk screw holes on the door panel side.
-
Customization Ready: We can adjust mold structures to meet your application needs, including unique sizes and special mounting layouts.
Application
This hinge is widely used in:
-
Industrial equipment doors and frames with asymmetric dimensions
-
Constant temperature and humidity test chambers
-
Large sheet metal enclosures
-
Control cabinets and access panels
-
High-load access doors in machinery housing
Perfect for manufacturers of industrial ovens, test equipment, metal enclosures, and other heavy-duty applications requiring precision-fit and reliable hinge performance.
