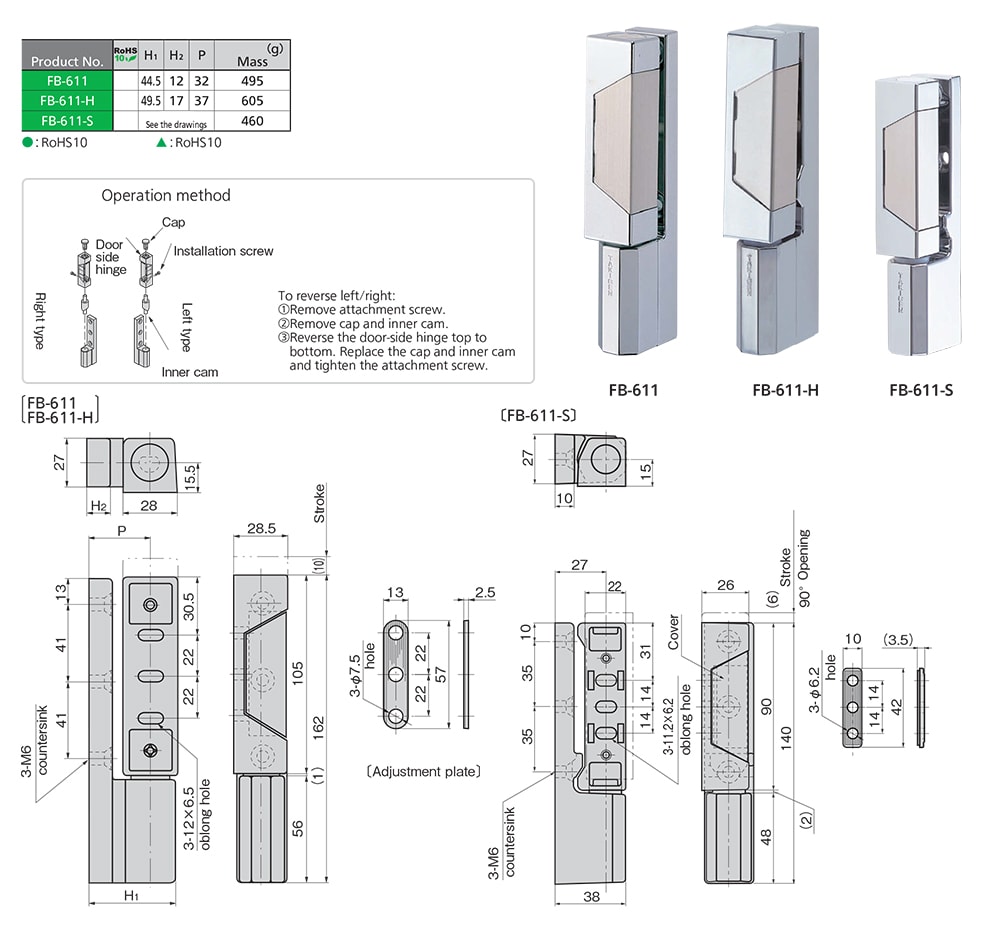

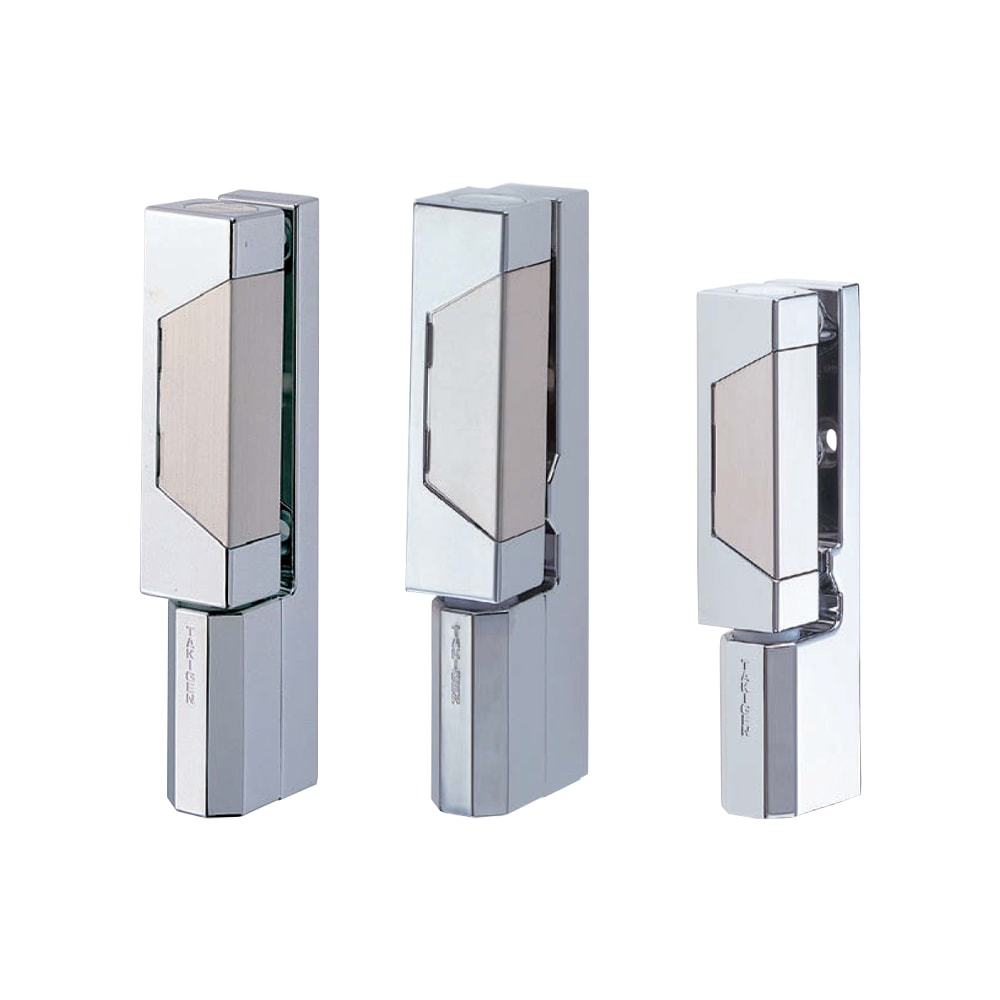

The Corner Lift Hinge, manufactured by our company, is designed to provide convenient and secure operation for doors in various applications. It incorporates several advanced features to enhance functionality and security. In addition to producing this type of product, we are also the manufacturer of Leaf-shaped Hinges.
- Automatic lifting: The hinge is equipped with a built-in cam that allows for automatic lifting when the door is opened.
- Automatic door closure: When the door is open at an angle of less than 120°, it closes automatically. Beyond 120°, it rotates horizontally.
- Controlled closure at 60°: The hinge ensures that the door closes automatically when opened to an angle of 60° or less.
- Door retention at 90°: When the door is opened to 90°, it is held open securely.
- Automatic return to 90°: If the door is opened between 90° and 120°, it automatically returns to the 90° position.
- Burglarproof mechanism: The hinge features a secure design that prevents unauthorized key removal or insertion when the door is fastened.
- Universal application: Suitable for both left-type and right-type doors.
- Main body: Zinc alloy (ZDC)
- Cover: Stainless steel plate (SUS304)
- Main body: Chrome plating (MZCr)
- Cover: Hairline finish
- Maximum door mass (using 2 hinges vertically, reference): 30kg
Ideal for prefabricated freezers and dry warehouses.
Q1: How does the corner lift hinge automatically lift the door?
A1: The corner lift hinge has a built-in cam that allows for automatic lifting when the door is opened.
Q2: What happens when the door is opened less than 120°?
A2: When the door is open at an angle of less than 120°, it closes automatically.
Q3: What happens when the door is opened beyond 120°?
A3: When the door is opened beyond 120°, it rotates horizontally.
Q4: Does the hinge automatically close the door when it is opened to 60° or less?
A4: Yes, the hinge ensures automatic closure when the door opens to 60° or less.
Q5: Can the corner lift hinge be used for both left-type and right-type doors?
A5: Yes, the corner lift hinge is designed to be compatible with both left-type and right-type doors.
Note: The questions and answers provided are based on the general understanding of the corner lift hinge and its features. For more specific or detailed inquiries, it is recommended to consult the manufacturer or refer to the provided specifications.
