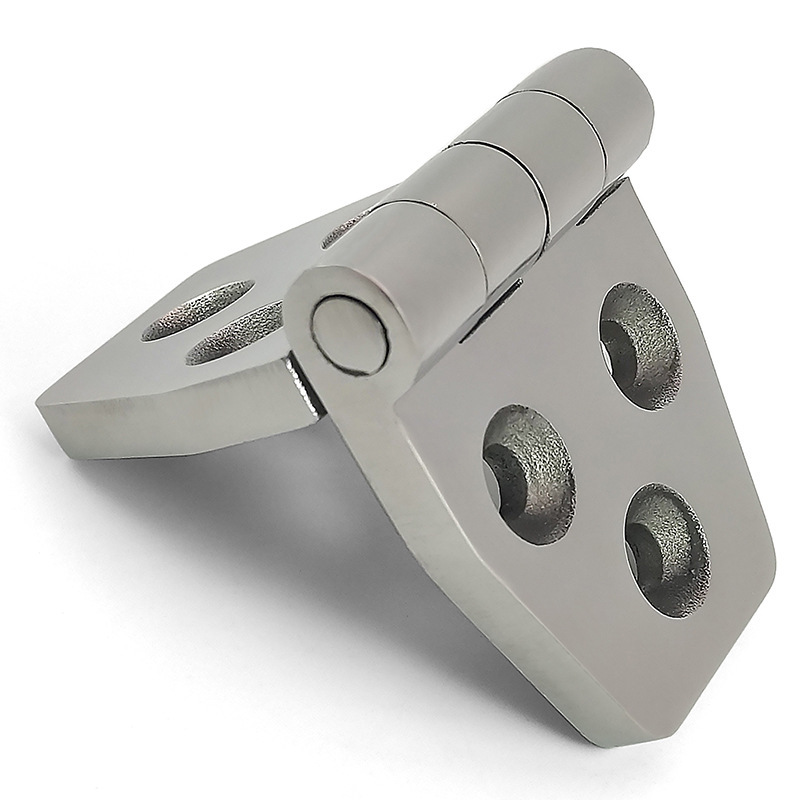

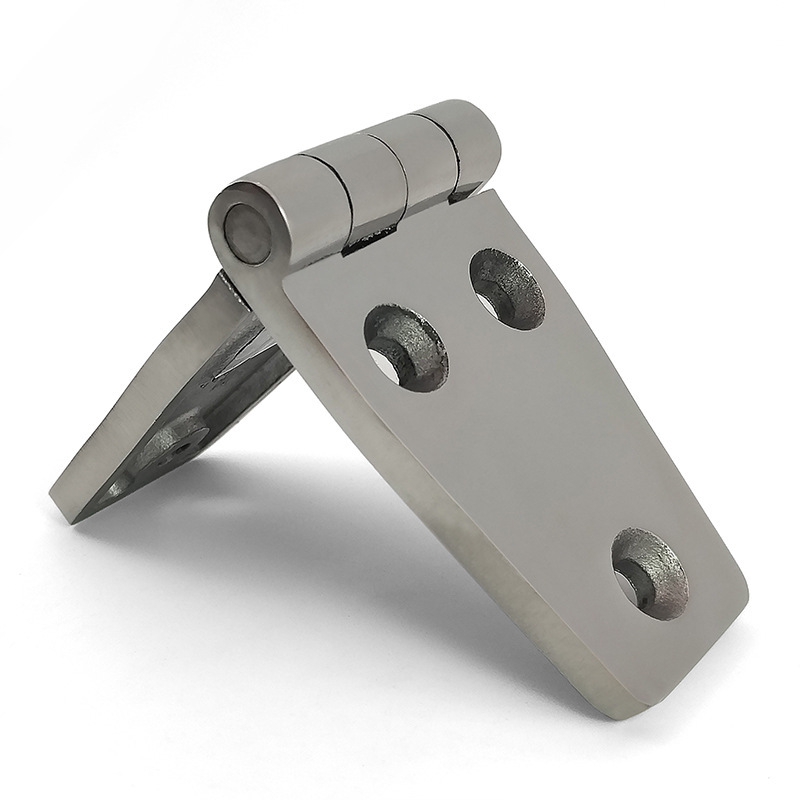

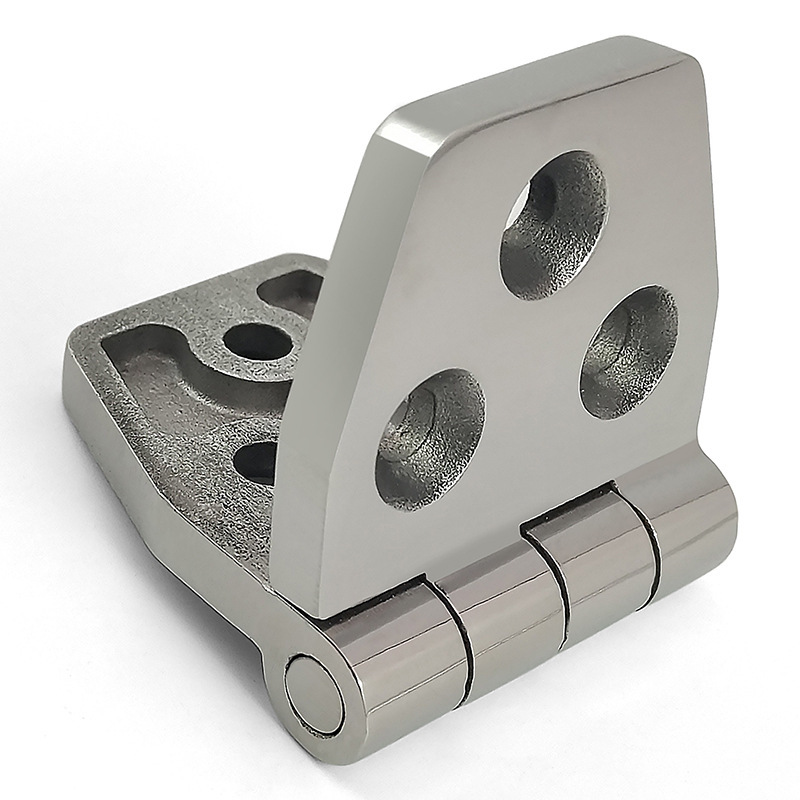

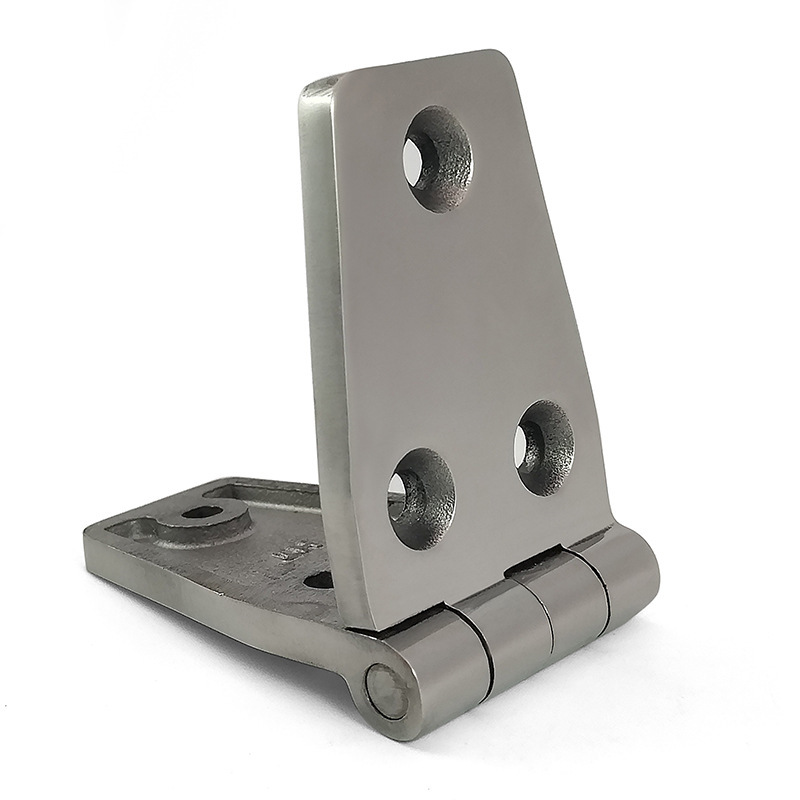

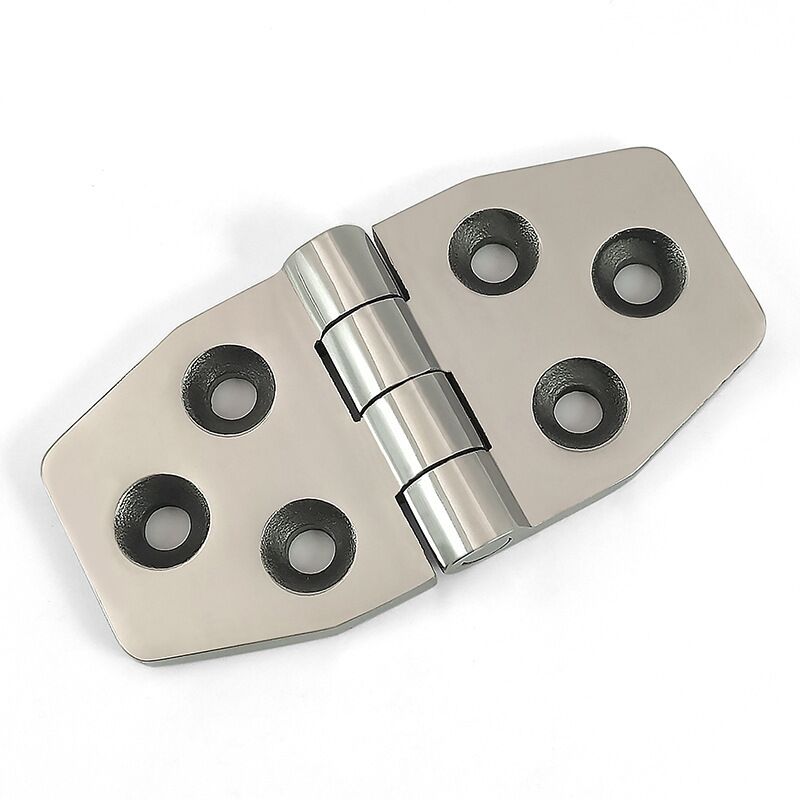

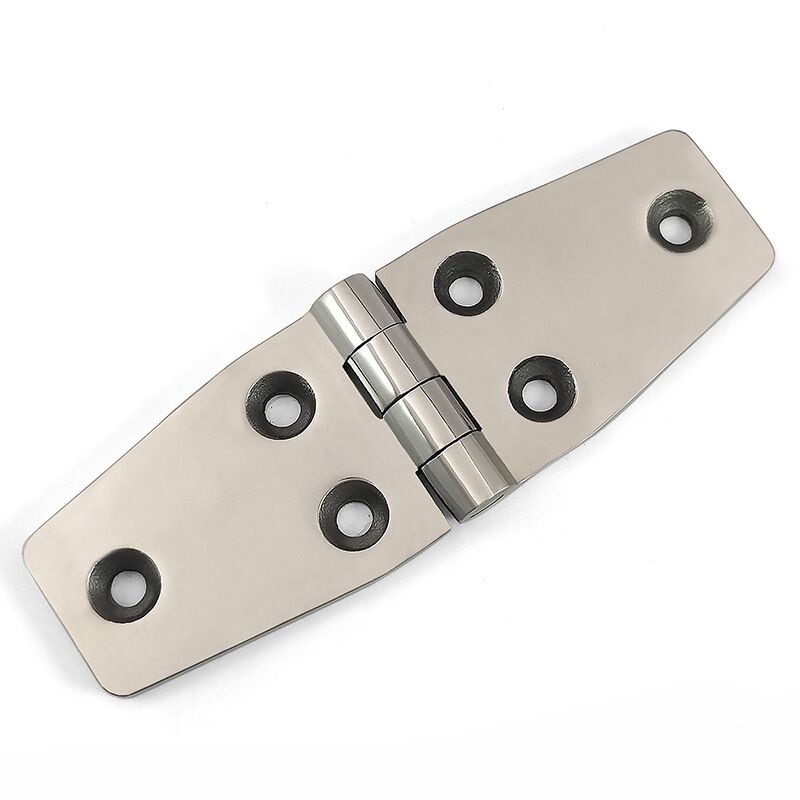

Folding butt hinges for ships and yachts

Additional information

Model

ML2-017-1、-2

Material

Stainless steel

Finish

Polished

Thread or Hole Type

M5

Uses

Kitchen equipment, Ships, Yachts

Weight

96g、128g

Description

Folding butt hinges for ships and yachts are a type of hinge commonly used in marine applications to connect two surfaces or panels while allowing them to fold flat against each other. They are typically made of corrosion-resistant materials such as stainless steel or brass to withstand exposure to saltwater and harsh marine environments.

Folding butt hinges consist of two identical plates, each with a series of knuckles or interlocking fingers that mesh together when the hinge is closed. The plates are attached to the two surfaces being joined, such as a door and a door frame or a hatch and a deck. When the hinge is opened, the two plates pivot on the knuckles, allowing the surfaces to fold flat against each other.



Features:

Some common features of folding butt hinges for ships and yachts include:

  • Corrosion resistance: Folding butt hinges are typically made of materials that can withstand exposure to saltwater and other harsh marine environments without rusting or corroding.
  • Strength and durability: These hinges are designed to withstand heavy use and high loads, making them ideal for use in marine applications where reliability is essential.
  • Easy installation: Folding butt hinges are relatively easy to install and can be mounted using standard hardware such as screws or bolts.
  • Compact design: Because the two plates fold flat against each other, folding butt hinges take up minimal space when not in use, making them a popular choice for applications where space is limited.

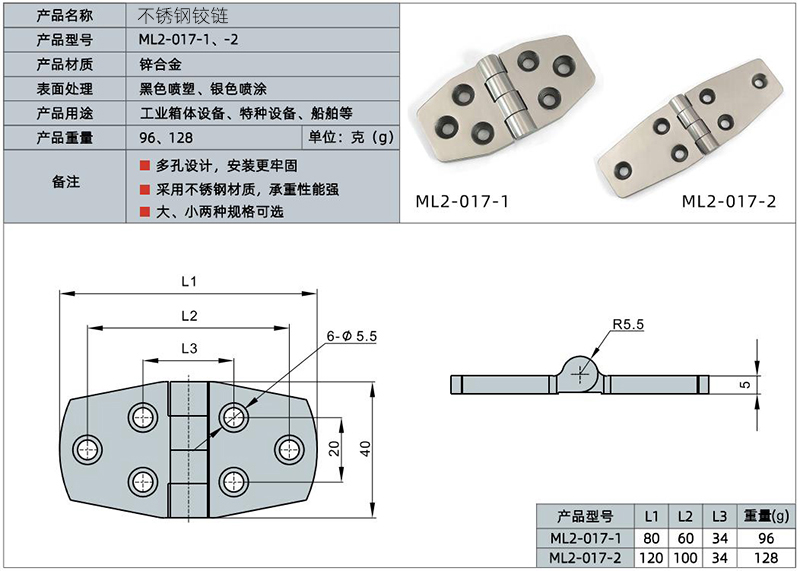

Parameters:

Name: Butt hinges for sanitation equipment
Model: ML2-017-1、-2
Material: SUS304
Surface Treatment: mirror polishing
Product Usage: Industrial housings, sheet metal housings, kitchen equipment, sanitation equipment
Product Weight: 96 g、128g

Folding butt hinges for ships and yachts Folding butt hinges for ships and yachts Folding butt hinges for ships and yachts Folding butt hinges for ships and yachts

FAQs:

What materials are folding butt hinges for ships and yachts typically made of?

Folding butt hinges for ships and yachts are typically made of corrosion-resistant materials. Such as stainless steel or brass to withstand exposure to saltwater and harsh marine environments.

What is the weight capacity of folding butt hinges for ships and yachts?

The weight capacity of folding butt hinges for ships and yachts can vary depending on the specific hinge and application. But they are designed to withstand heavy loads and frequent use.

Can folding butt hinges be used in other applications besides ships and yachts?

Yes, folding butt hinges can be used in a variety of applications where a compact, foldable hinge is needed. They are commonly used in RVs, trailers, and other mobile applications.

How do I choose the right size folding butt hinge for my application?

To choose the right size folding butt hinge. You will need to consider the size and weight of the surfaces being joined. As well as the desired range of motion. It is also important to choose a hinge made from a material. That is appropriate for the environment in which it will be used.

Can folding butt hinges be installed by a non-professional?

Yes, folding butt hinges can be installed by a non-professional with basic tools and hardware. However, it is important to follow the manufacturer’s instructions. And ensure that the hinge is securely mounted to prevent failure or damage.

Additional information

Model

ML2-017-1、-2

Material

Stainless steel

Finish

Polished

Thread or Hole Type

M5

Uses

Kitchen equipment, Ships, Yachts

Weight

96g、128g
