Description

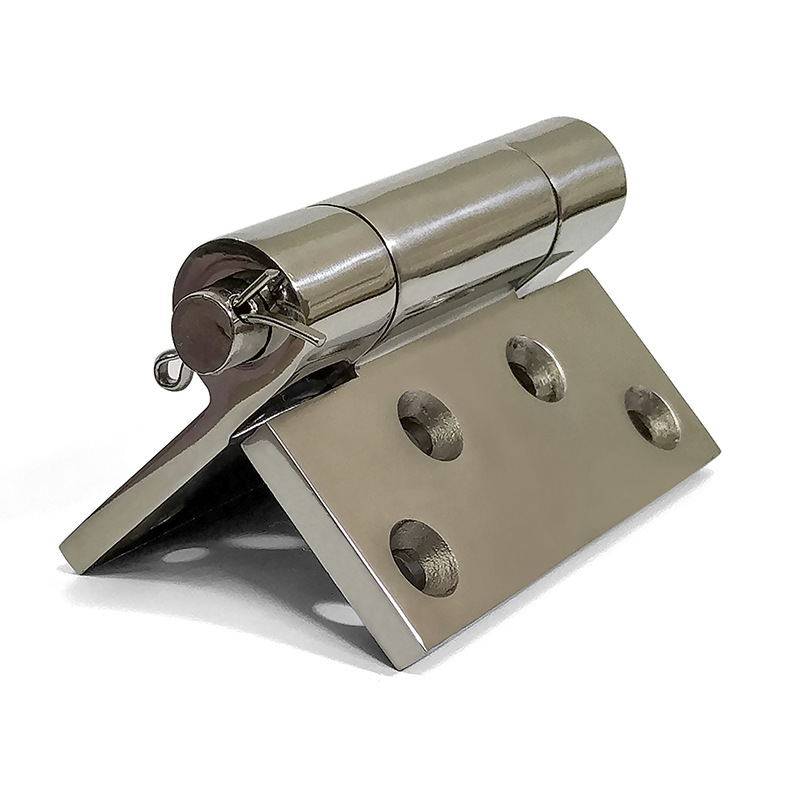

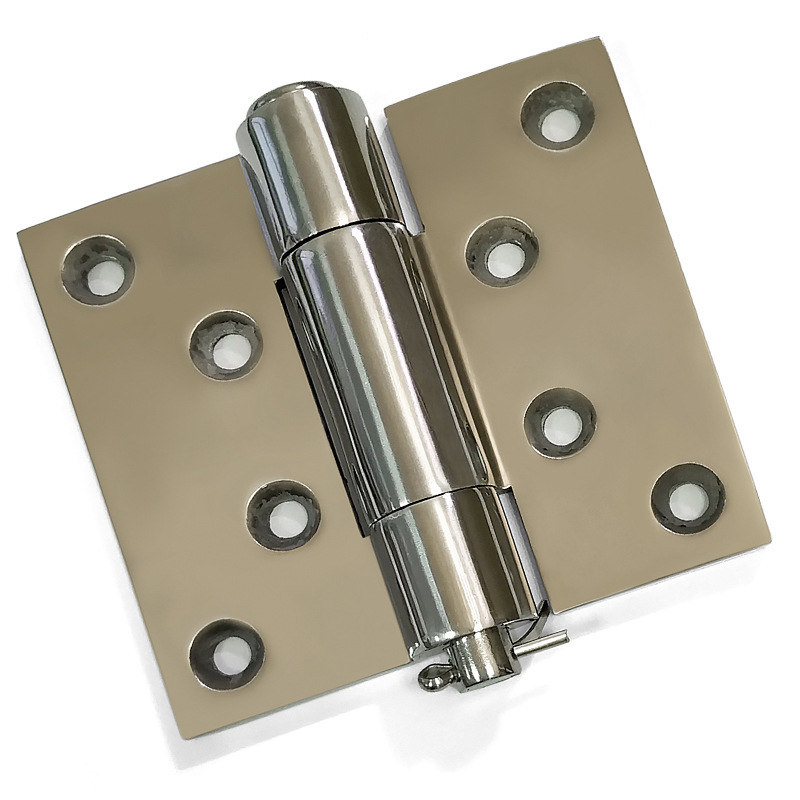

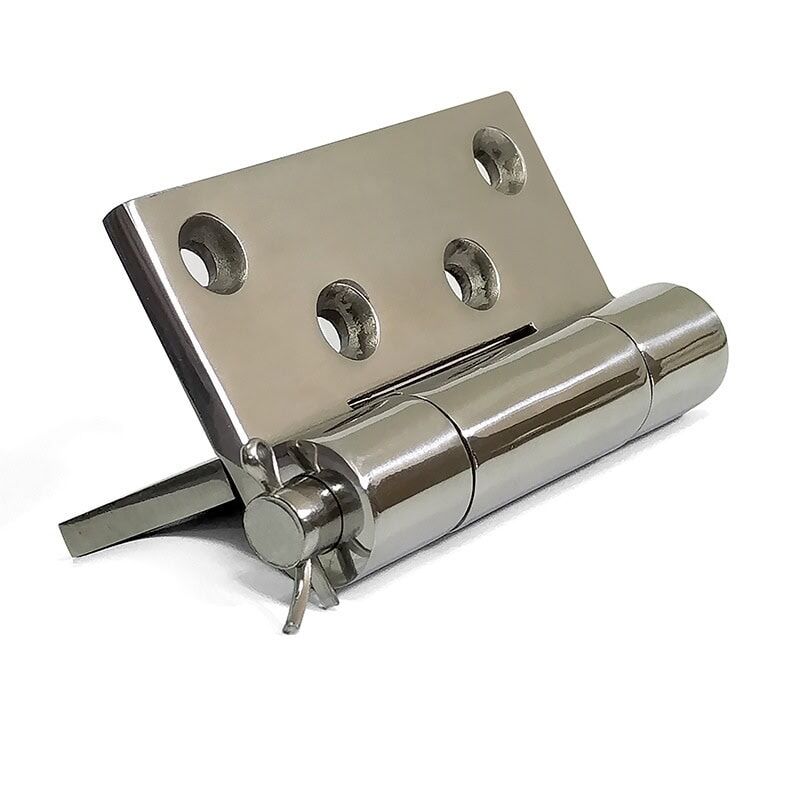

This heavy-duty industrial hinge is crafted from solid 304 stainless steel and engineered for high-strength applications such as large metal doors, equipment access panels, and heavy-duty enclosures. With an overall size of 120×128×8mm and a unit weight of 1.26kg, it features a removable hinge pin, designed specifically to ease the installation of heavy doors or panels. The mirror-polished finish not only enhances corrosion resistance but also provides a premium, professional appearance suitable for demanding environments such as cleanrooms, marine installations, and high-end machinery.
Parameters
| Item | Specification |
|---|---|
| Model | ML2-JL305-2 |
| Overall Dimensions | 120mm × 128mm |
| Material | 304 Stainless Steel |
| Thickness | 8mm |
| Surface Finish | Mirror Polished |
| Pin Type | Removable Pin |
| Pin Diameter | 28mm |
| Central Opening Width | 60mm |
| Mounting Hole Diameter | 8.5mm |
| Mounting Holes per Side | 5 (Symmetrical Design) |

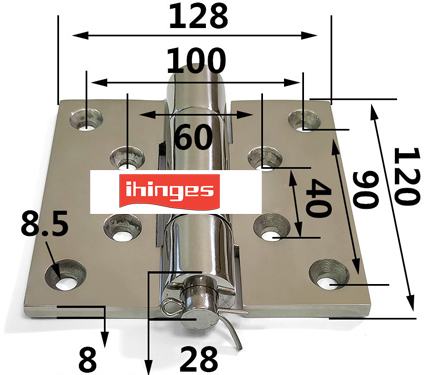

| Distance Between Mounting Holes | See image for exact layout |
| Weight | 1.26 kg |
| Customization | Available for logo and mounting pattern |
Features
-
Solid 304 Stainless Steel: Offers excellent mechanical strength, corrosion resistance, and long-term durability in industrial environments.
-
Mirror Finish: High-gloss polished surface adds corrosion protection and a sleek, professional appearance.
-
Removable Pin Design: Ideal for heavy door applications requiring easy installation or periodic removal.
-
Symmetrical Structure: Equal hole layout on both sides (5 holes per leaf) ensures balance and stability.
-
Oversized Mounting Holes: Ø8.5mm holes provide strong fixation with industrial-grade fasteners.
Applications
-
Industrial machine enclosures
-
Large stainless steel access doors
-
Electrical cabinets and switchgear panels
-
Food processing or cleanroom doors
-
Marine-grade or high-humidity environments
Why Choose a Removable Pin Hinge?
For heavy industrial doors or enclosures, traditional fixed-pin hinges can make installation extremely challenging due to the weight and alignment difficulties. A removable pin hinge allows installers to separate the door from the frame during installation, dramatically reducing the handling load. Once the frame and door leaves are secured independently, the pin can be inserted to reconnect them, saving labor, reducing safety risks, and ensuring proper alignment. This feature is particularly useful for maintenance access or when frequent door removal is required.
