Description
This heavy-duty detachable barrel hinge is engineered for industrial applications requiring reliable load-bearing performance and easy maintenance. Manufactured from standard carbon steel, this hinge is designed with a removable pin mechanism that incorporates a 316 stainless steel ball, ensuring smooth rotational movement and secure engagement. The hinge body is equipped with a 4mm thick welded steel mounting plate for firm installation onto doors or frames. Surface treatment options such as powder coating or electroplating are available upon request, or it can be left untreated for post-installation painting to match the device housing.
Parameter
| Item | Specification |
|---|---|
| Product Type | Detachable Barrel Hinge |
| Material | Carbon Steel (Body), SS316 (Ball) |
| Surface Treatment | Customizable: Powder Coating / Electroplating / None |

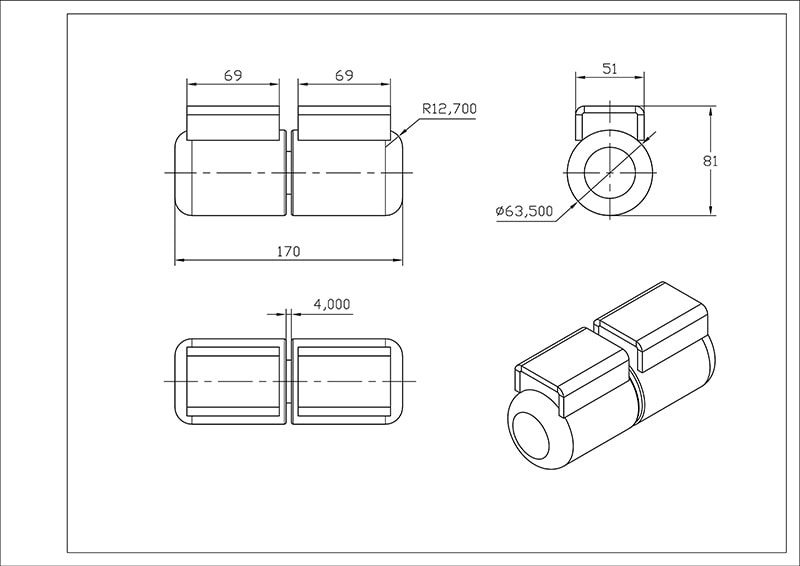

| Total Length | 170 mm |
| Barrel Diameter | Ø63.5 mm |
| Mounting Plate Thickness | 4.0 mm |
| Mounting Plate Width | 51 mm |
| Overall Height | 81 mm |
| Rounding Radius | R12.7 mm |
| Load Capacity (Per Piece) | Up to 220 kg |
| Detachable Design | Yes |
| Weld Type | Saturated Continuous Weld |
Features
-

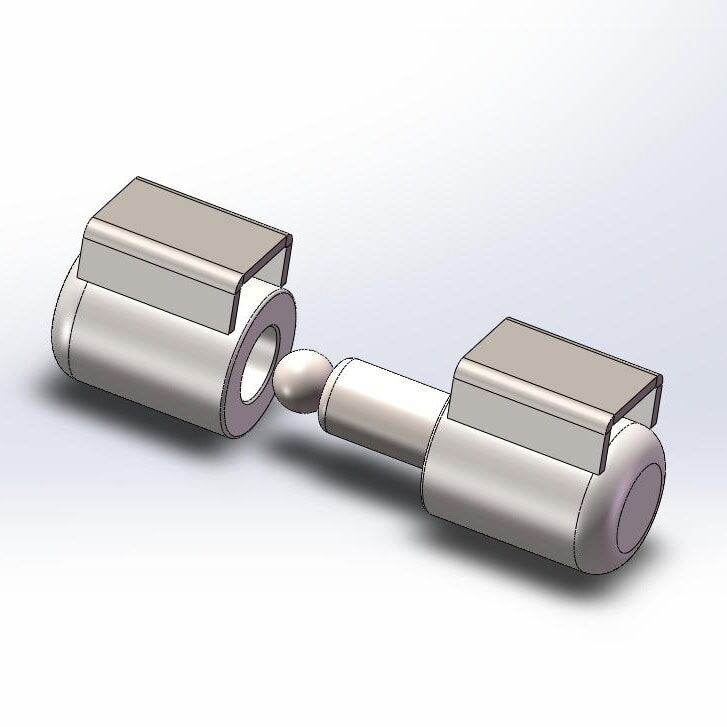

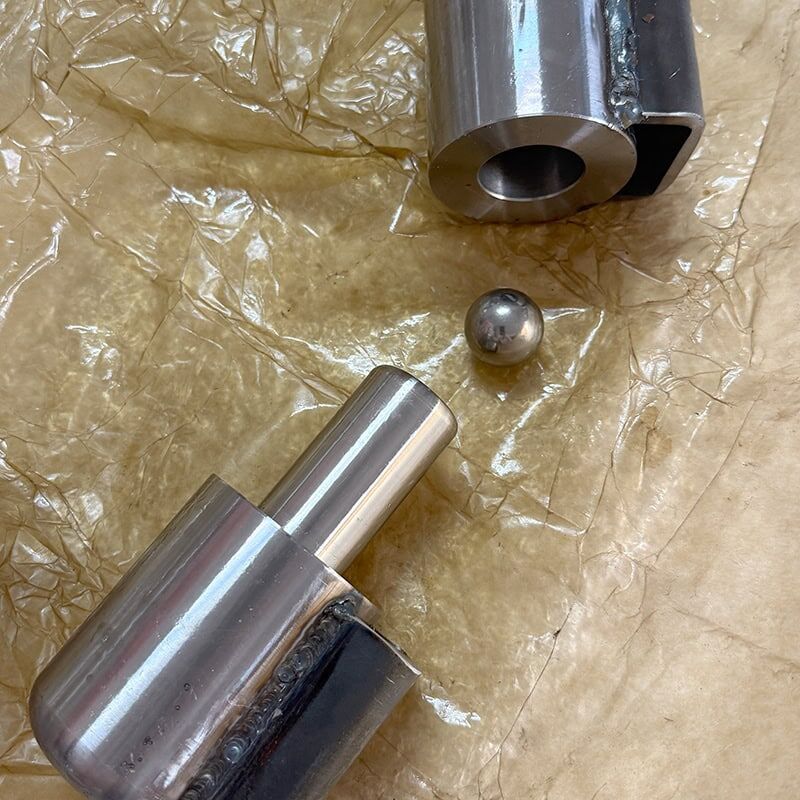

Detachable Design: The hinge pin includes a 316 stainless steel ball for enhanced rotation performance and quick disassembly.
-
Heavy-Duty Performance: Each hinge is capable of bearing up to 220 kg, suitable for large and heavy doors.
-
Custom Surface Options: Supplied untreated for end-user painting, or customizable with powder coating or electroplating.
-
Reinforced Installation Plate: A 4mm thick welded mounting plate ensures strong and stable attachment to the door or frame.
-

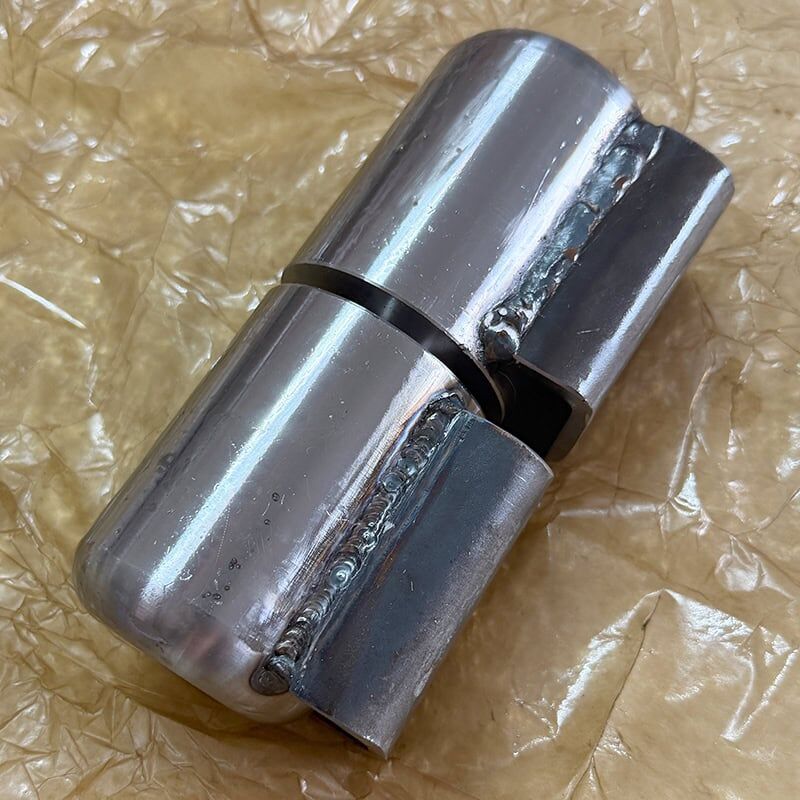

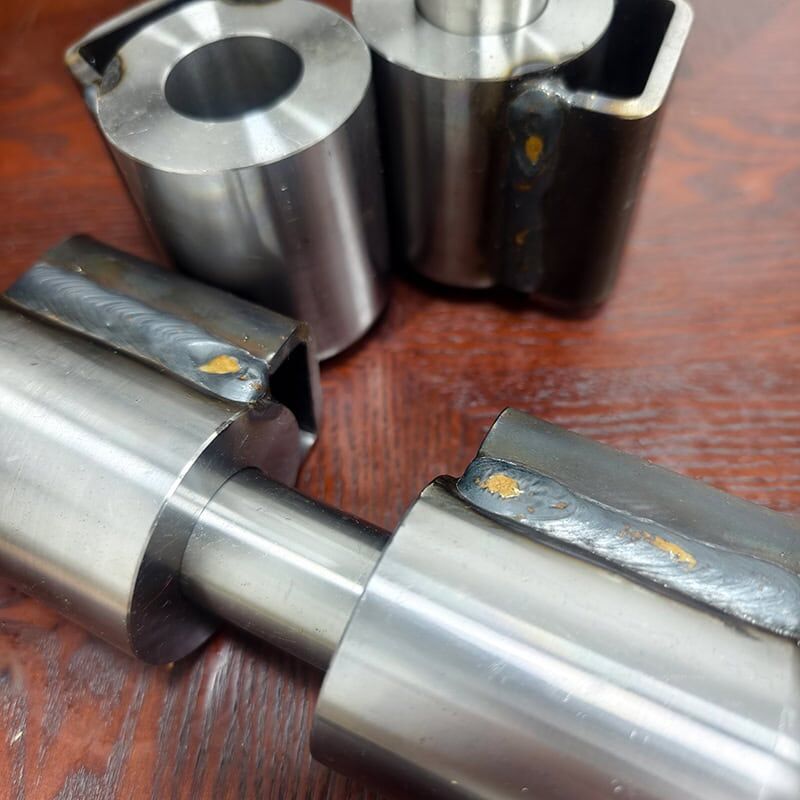

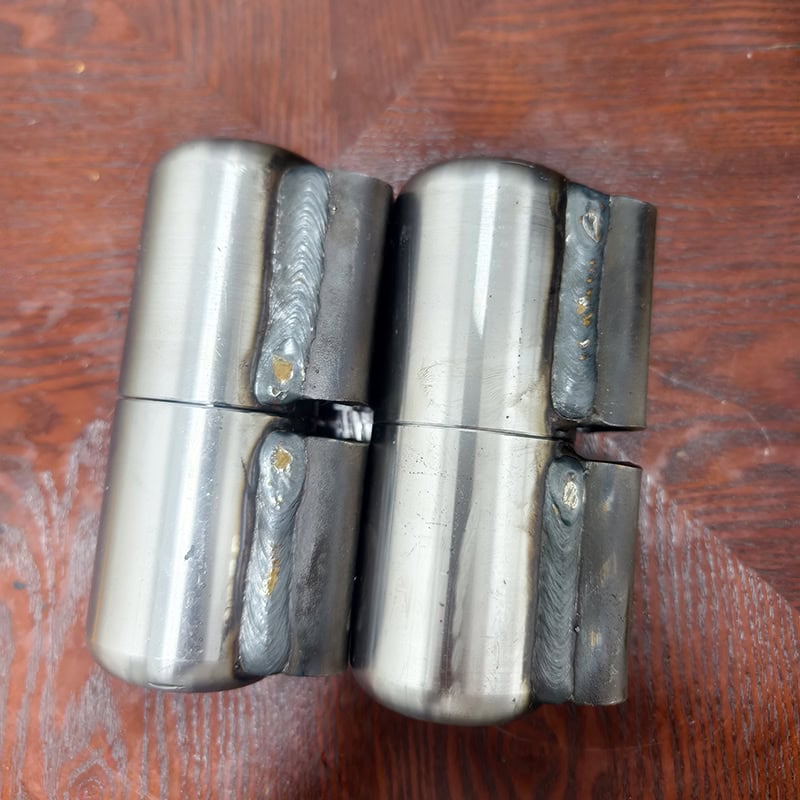

Industrial Grade Welding: Fully welded with saturated continuous welds to guarantee long-term structural integrity.
-
Corrosion Resistance: 316 stainless steel ball insert improves resistance to wear and corrosion in demanding environments.
Application
This hinge is specifically developed for use in heavy-duty doors on specialized industrial equipment such as:
-
Road Barrier Systems
-
Cold Storage Room Doors
-
Warehouse Gates
-
Industrial Freezers
-
Heavy Machinery Access Panels
While primarily designed for heavy-duty applications, this hinge can also be tested for integration into other industrial systems requiring robust and detachable door hardware.
