Description

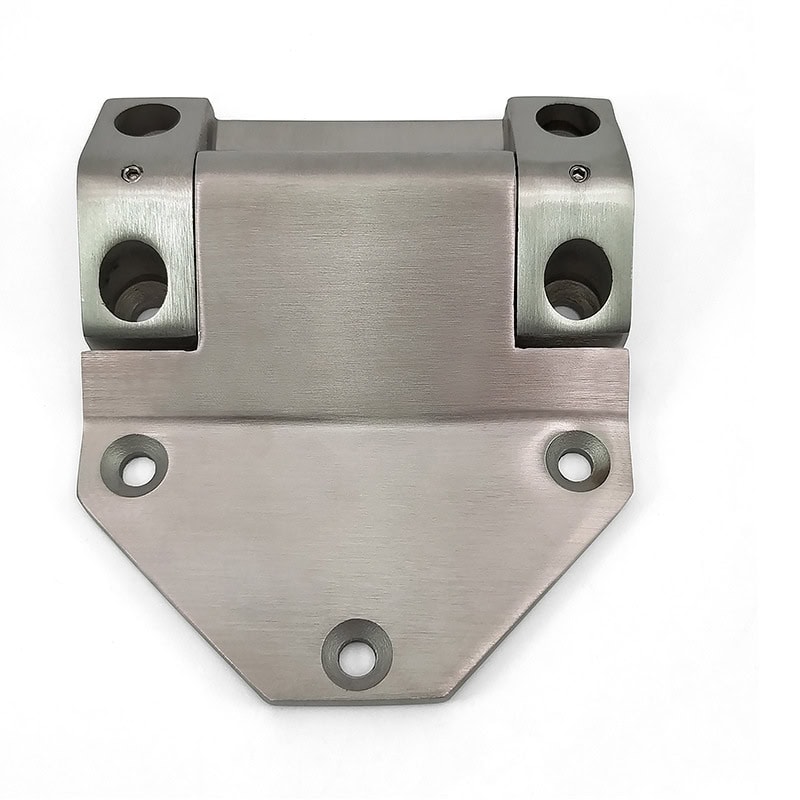

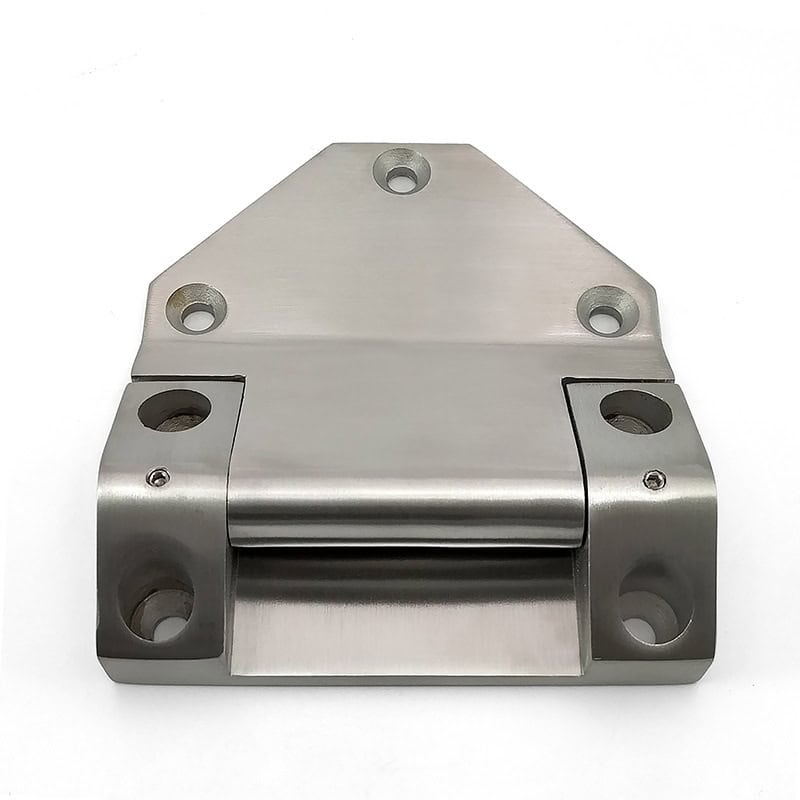

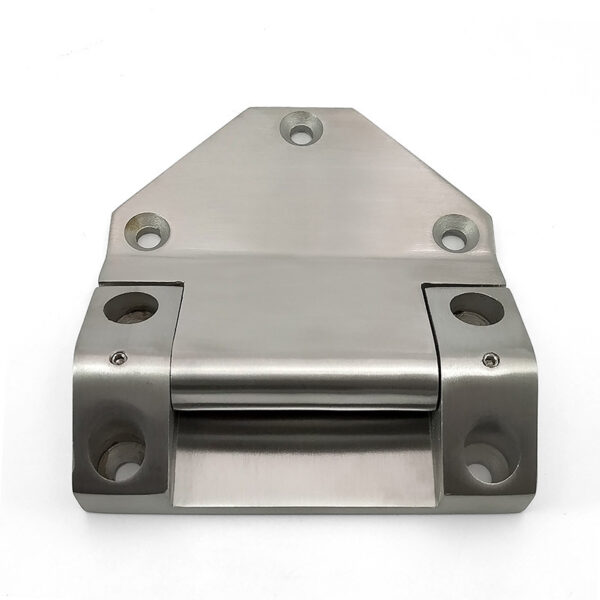

This heavy-duty hinge is precision-cast from 304 stainless steel, offering excellent strength, corrosion resistance, and long-term durability. Engineered for demanding industrial environments, it is ideal for applications where robust support and smooth operation are critical. Manufactured by IHINGES, a professional industrial hinge factory in China, this hinge is built to support large and heavy metal doors, lids, and access panels.
Parameter
| Item | Specification |
|---|---|
| Model | ML2-JL301 |
| Material | 304 Stainless Steel |
| Surface Treatment | Natural Brushed Finish |

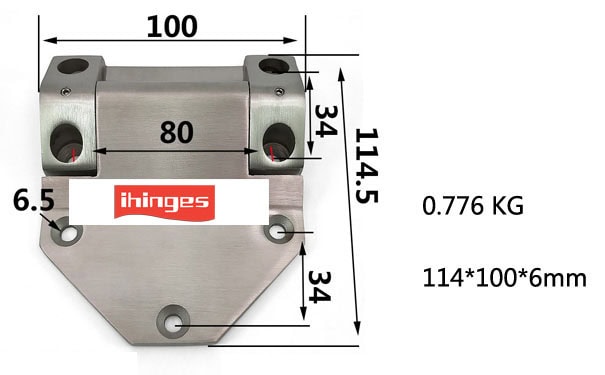

| Overall Dimensions | 114 × 100 × 6 mm |
| Mounting Hole Diameter | Ø6.5 mm |
| Hinge Width (Open) | 100 mm |
| Hinge Length | 114.5 mm |
| Central Shaft Length | 80 mm |
| Weight | 0.776 kg |
| Load Capacity | Heavy Duty (Exact load rating customizable based on use) |
| Customization | Logo, size, hole layout, 3D design available |
Features
-
High Corrosion Resistance: Made of 304 stainless steel, ensuring long-term rust and oxidation resistance, suitable for outdoor or harsh environments.
-
Precision Casting: Offers excellent structural integrity and consistent quality for reliable performance.
-

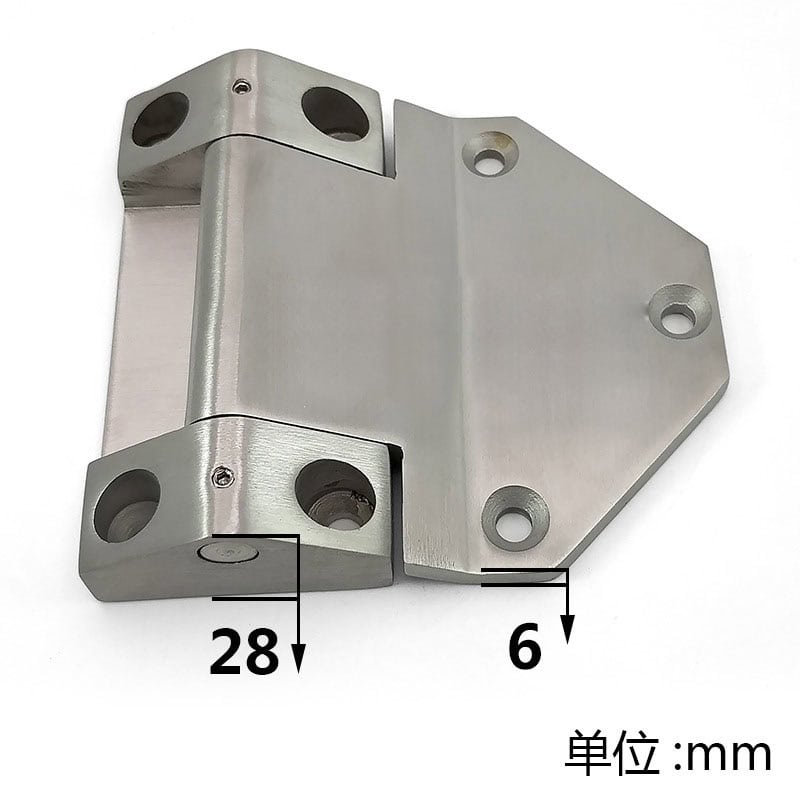

Heavy Duty Design: With a thickness of 6mm and reinforced construction, it supports high loads and frequent usage.
-
Easy Installation: Standard hole layout with Ø6.5 mm mounting holes simplifies the mounting process.
-
Customizable Options: Logo engraving, hole adjustment, and design alterations are available to meet specific project requirements.
Application
This heavy-duty industrial hinge is widely used in:
-
Electrical and mechanical equipment enclosures
-
Test chambers and climatic cabinets
-
Industrial ovens and heavy access doors
-
Sheet metal boxes and control cabinets
-
Marine and outdoor equipment requiring anti-corrosion properties
Suitable for industries such as test equipment manufacturing, electrical cabinet production, sheet metal fabrication, and other industrial sectors where reliability and strength are critical.
