Description
The ML2-JL305-1 heavy duty hinge is precision-cast from 304 stainless steel, delivering excellent corrosion resistance, durability, and stability in demanding industrial environments. Designed with an asymmetrical structure and multiple mounting holes, it ensures a firm installation and long-lasting performance. Each hinge is capable of supporting up to 120 kg, making it ideal for heavy-duty doors, machinery enclosures, and industrial equipment that require high load-bearing capacity and safety.
Parameter
| Item | Specification |
|---|---|
| Model No. | ML2-JL305-1 |
| Brand | IHINGES |
| Material | 304 Stainless Steel (Casting) |
| Surface Treatment | Mirror Polished / Customizable |

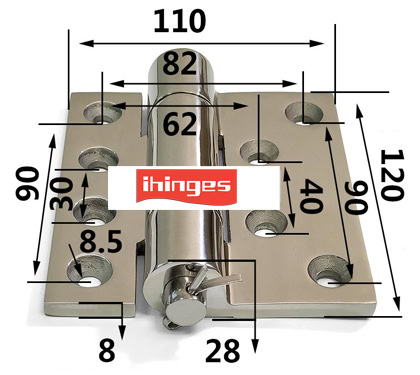

| Overall Dimensions | 120 × 110 × 8 mm |
| Hinge Width (Open) | 110 mm |
| Hinge Height | 120 mm |
| Hole Diameter | Ø8.5 mm |
| Plate Thickness | 8 mm |
| Structure | Asymmetrical, multi-hole design |
| Shaft Design | Detachable Pin with Safety Clip |
| Load Capacity | Up to 120 kg per hinge |
| Customization | Logo, dimensions, structure, surface finish |
Features
-
Ultra-Heavy Duty Performance: Single hinge supports loads up to 120 kg, suitable for large industrial doors and heavy panels.
-
304 Stainless Steel Casting: Excellent strength, anti-corrosion, and durability for long service life.
-
Asymmetrical Design: Provides better alignment and stability between doors and frames.
-
Multi-Hole Mounting: Ensures secure fastening and load distribution, minimizing installation stress.
-
Detachable Shaft: Equipped with a locking safety pin, enabling convenient door removal and maintenance.
-
Customizable: Options available for engraved logos, material upgrade (316 stainless steel), and alternative surface treatments.
Application
The ML2-JL305-1 stainless steel heavy duty hinge is widely used in:
-
Large industrial equipment doors
-
Test chambers and climatic cabinets
-
Electrical enclosures and sheet metal housings
-
Industrial ovens and machinery housings
-
Marine and outdoor applications requiring anti-corrosion performance
This hinge is a perfect choice for industries where safety, stability, and high load capacity are critical.
