Description

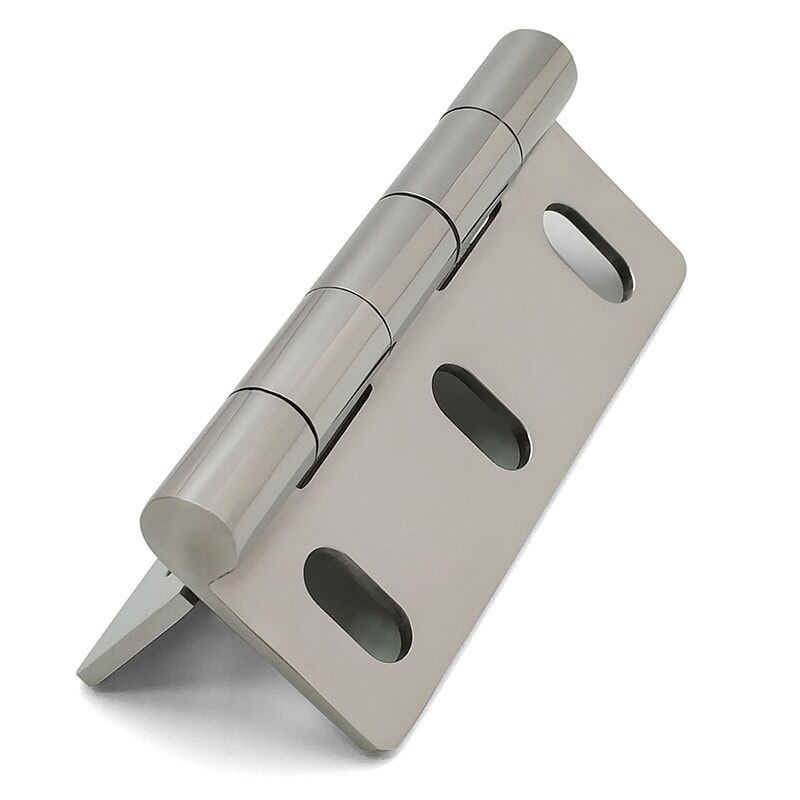

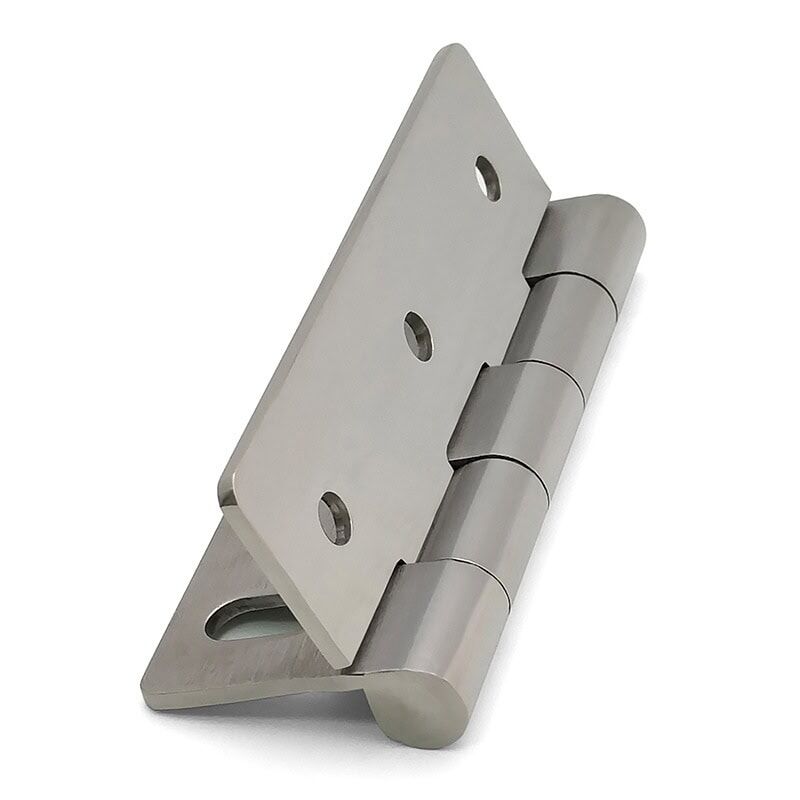

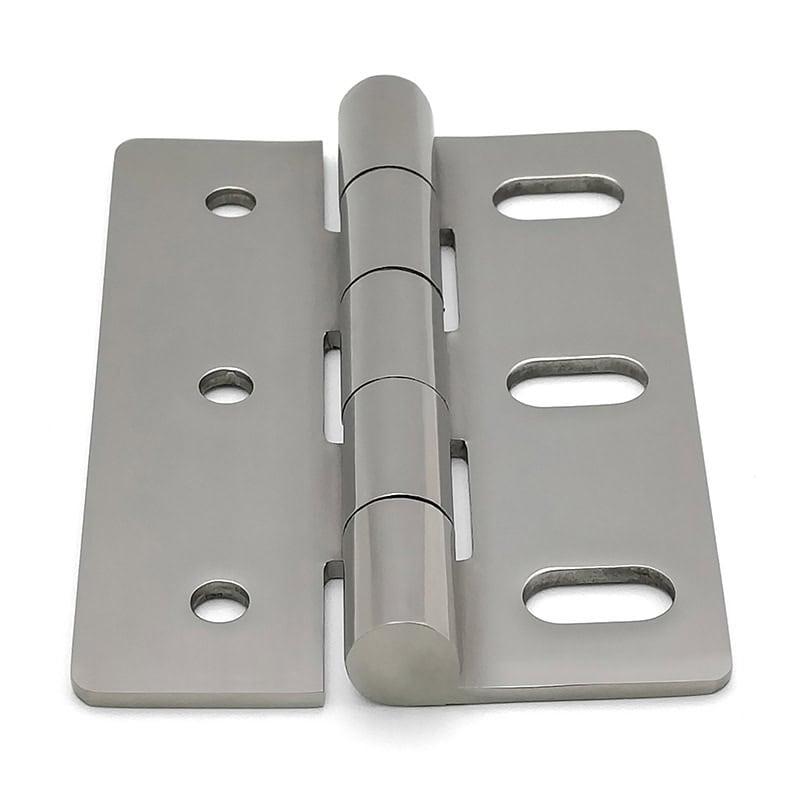

The ML2-JL404-2 is a precision-engineered stainless steel hinge with a thickness of 2mm, designed for medium-duty industrial applications. It features a symmetrical structure and is equipped with long oval mounting holes on one wing, providing installation flexibility for accurate alignment. With a load-bearing capacity of up to 30kg per hinge, it is ideal for use in electrical enclosures, outdoor cabinets, and stainless steel boxes.
Parameters
| Parameter | Value |
|---|---|
| Model Number | ML2-JL404-2 |
| Material | Stainless Steel |

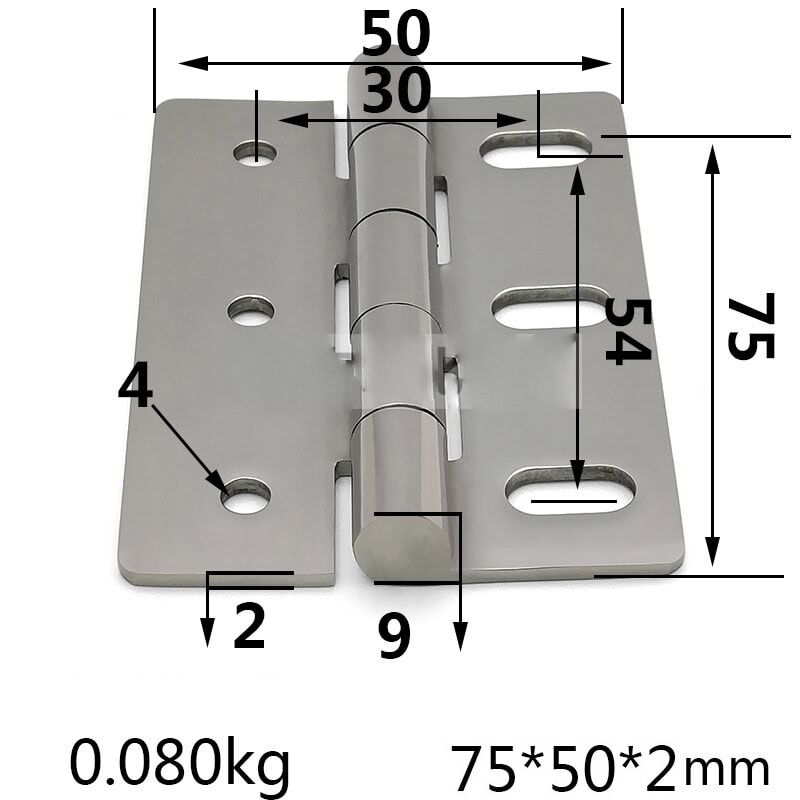

| Overall Size | 75 × 50 × 2 mm |
| Plate Thickness | 2 mm |
| Shaft Diameter | 9 mm |
| Wing Width | 50 mm (each side) |
| Circular Hole Diameter | 4 mm |
| Long Hole Size | 4 × 12 mm |
| Vertical Hole Spacing | 54 mm |
| Horizontal Hole Spacing | 30 mm |
| Weight | 0.080 kg |
| Structure | Symmetrical |
| Load Capacity (Single) | 30 kg |
| Surface Finish | Brushed / Polished (Customizable) |
Features
-
Quality Construction: Made from corrosion-resistant stainless steel, suitable for indoor and outdoor environments.
-
Precision Fit: Features one wing with long oval holes to allow positional adjustments during mounting.
-
Compact & Lightweight: At only 0.080kg, it’s lightweight yet capable of supporting up to 30kg.
-
Professional Finish: Sleek brushed surface enhances appearance and matches stainless steel enclosures.
-
Flexible Customization: Optional logo printing and size customization available.
Application
This hinge is ideal for:
-
Stainless steel electrical boxes
-
Outdoor power and communication cabinets
-
Industrial control panels
-
Telecom and data cabinets
-
Sheet metal equipment enclosures
It’s particularly well-suited for equipment used in environments requiring precision installation and weather resistance.
Why Choose Slotted Mounting Holes

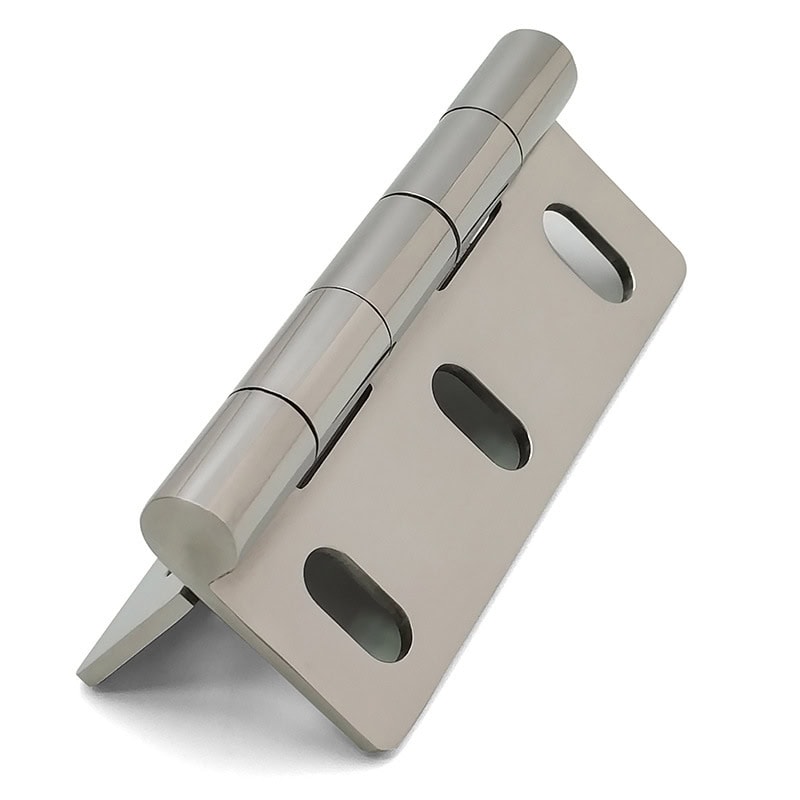

The long oval (slotted) holes on this hinge provide critical flexibility during installation. Unlike fixed round holes, slotted holes allow minor positional adjustments—both horizontally and vertically—helping to correct slight misalignments between the door and frame. This feature ensures a more accurate and stable installation, especially useful in field applications where cabinet frames may not be perfectly uniform.
