Description

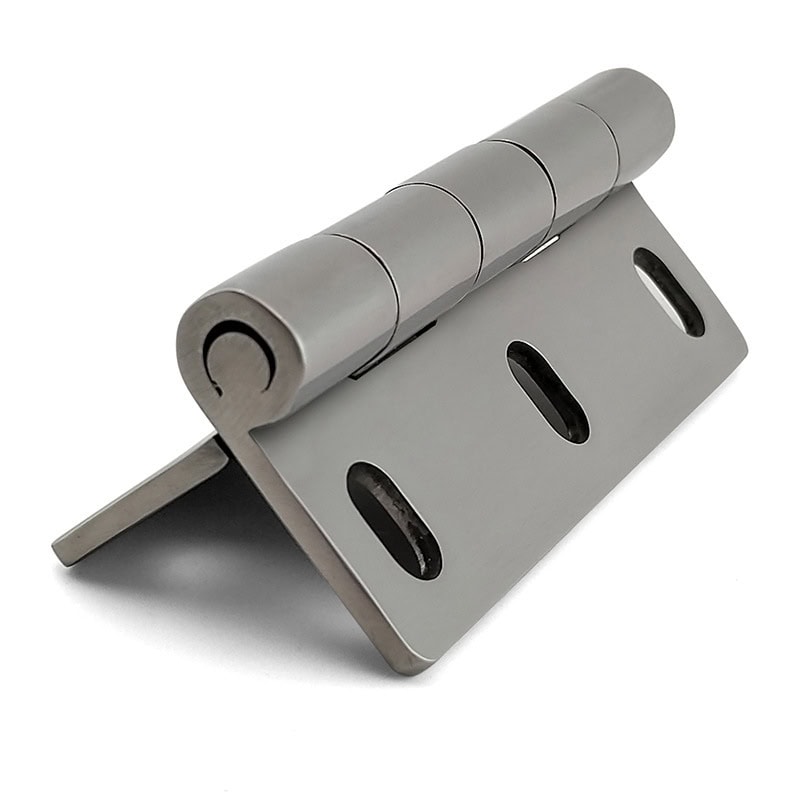

The ML2-JL404-1 hinge is crafted from high-strength stainless steel with a 3mm thickness, offering outstanding durability and corrosion resistance. Designed with long oval holes on one wing, this hinge allows flexible adjustments during installation to ensure precise alignment between door and frame. With a load-bearing capacity of up to 34kg per hinge, it is ideal for heavy-duty industrial applications, particularly in stainless steel electrical enclosures, outdoor control cabinets, and equipment boxes.
Parameters

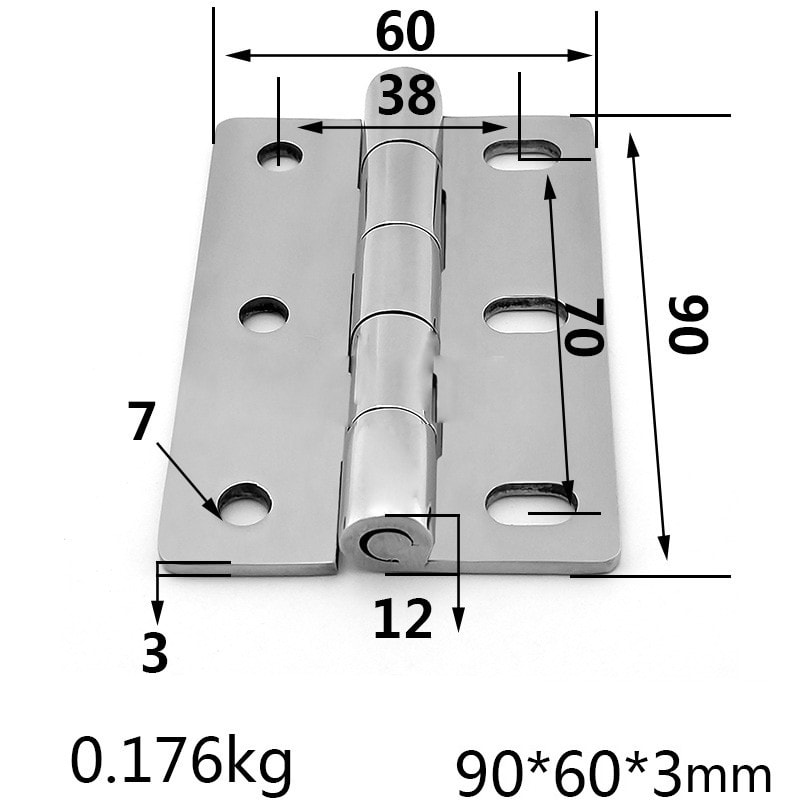

| Parameter | Value |
|---|---|
| Model Number | ML2-JL404-1 |
| Material | Stainless Steel |
| Overall Size | 90 × 60 × 3 mm |
| Plate Thickness | 3 mm |
| Shaft Diameter | 12 mm |
| Wing Width | 60 mm (each side) |
| Mounting Hole Type | Circular + Long Oval |
| Circular Hole Diameter | 7 mm |
| Long Hole Size | 7 × 20 mm |
| Horizontal Hole Spacing | 38 mm |
| Weight | 0.176 kg |
| Structure | Symmetrical |
| Load Capacity (Single) | 34 kg |
| Surface Finish | Brushed / Polished (Customizable) |
Features
-
Durable Material: Made of stainless steel with a 3mm thickness, suitable for both indoor and outdoor applications.
-
Flexible Installation: One wing features long oval holes (7×20mm), allowing precise adjustment during mounting.
-
Heavy-Duty Performance: Each hinge supports up to 34kg, meeting the demands of industrial-grade enclosures.
-
Corrosion Resistant: Ideal for humid, outdoor, or chemically exposed environments.
-
Custom Options Available: Tailored logo, size, and surface treatment services provided on request.
Application
The ML2-JL404-1 stainless steel hinge is widely used in:
-
Electrical control cabinets
-
Outdoor stainless steel enclosures
-
Industrial equipment housings
-
Telecom distribution boxes
-
Machine and automation cabinets
It is especially suited for scenarios where precise installation and high durability are required, such as outdoor equipment and stainless steel box manufacturing.
