Description

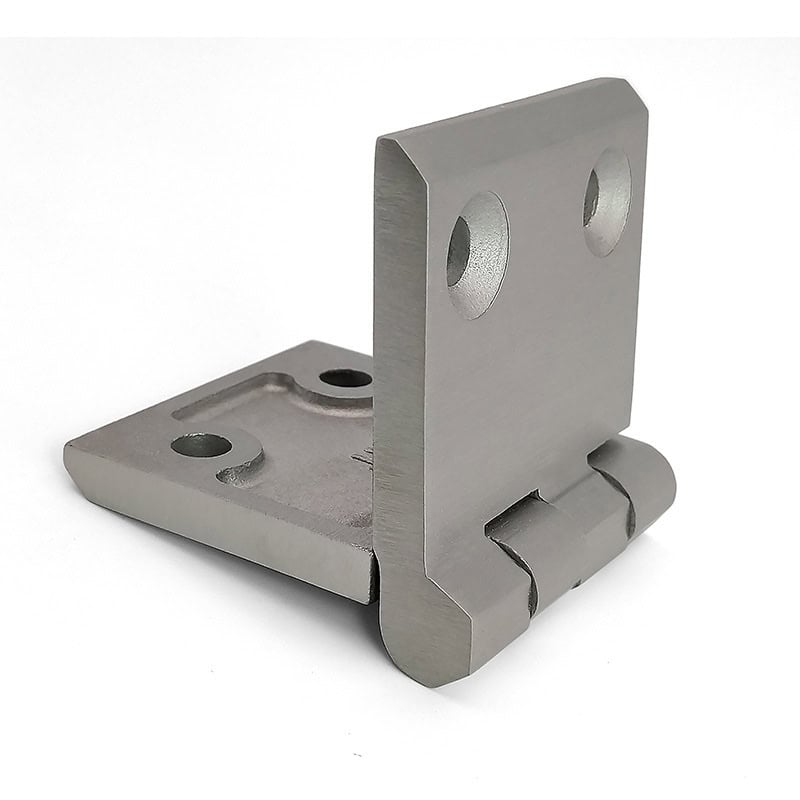

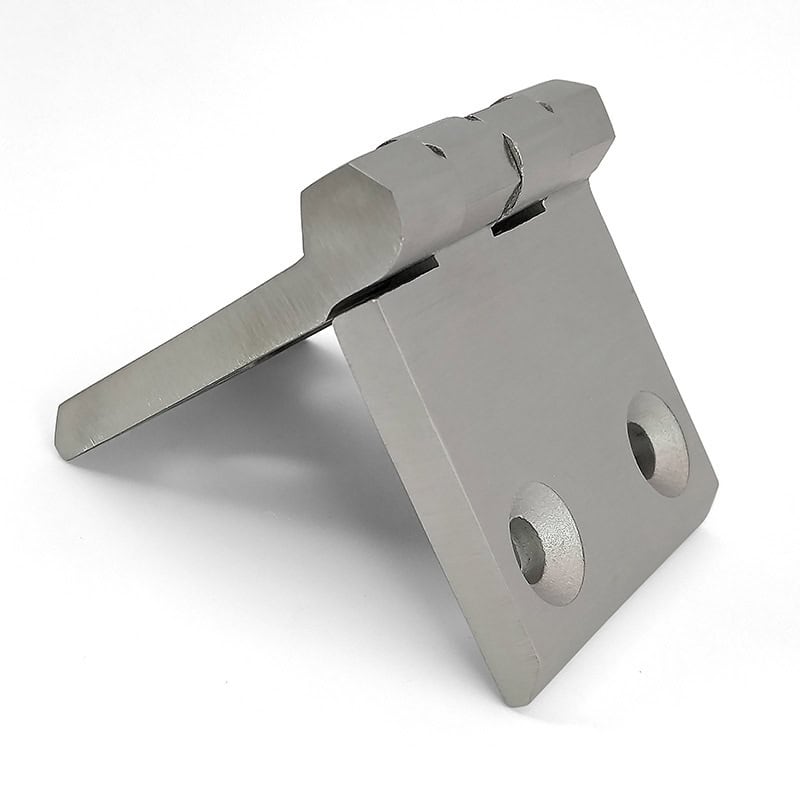

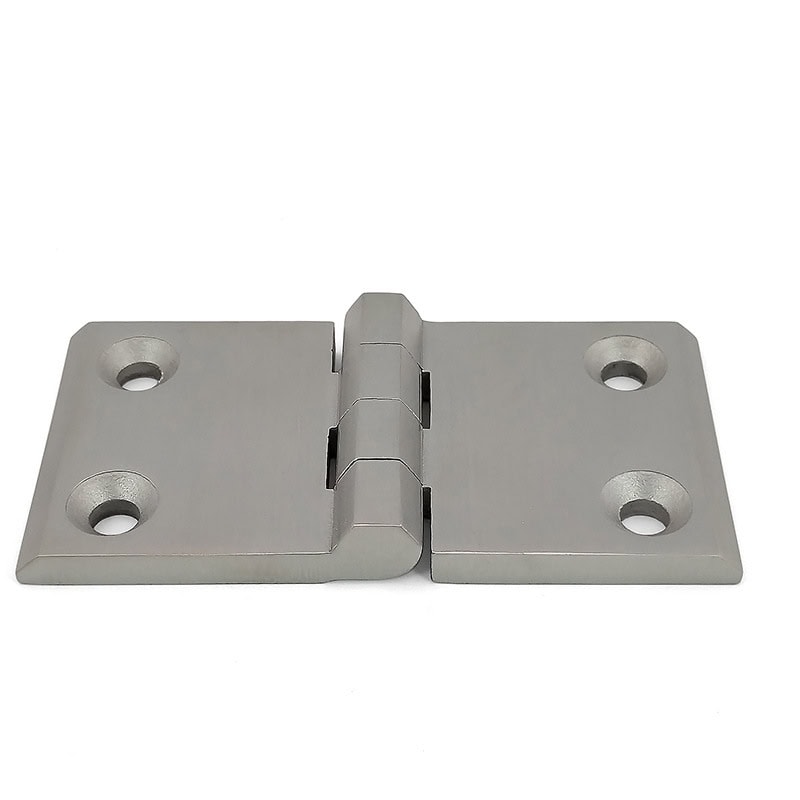

This stainless steel industrial hinge from IHINGES is designed for high-strength load-bearing applications. With dimensions of 601208mm, it is especially suitable for sheet metal doors that demand enhanced durability and load support. The hinge surface is finished with a brushed polish, offering both aesthetic appeal and corrosion resistance. Manufactured using solid 8mm thick stainless steel, this hinge delivers reliable performance in demanding industrial environments.
Parameter
| Item | Specification |
|---|---|
| Product Name | Stainless Steel Industrial Hinge |
| Brand Name | IHINGES |
| Material | Stainless Steel 304 |
| Surface Treatment | Brushed Polish |

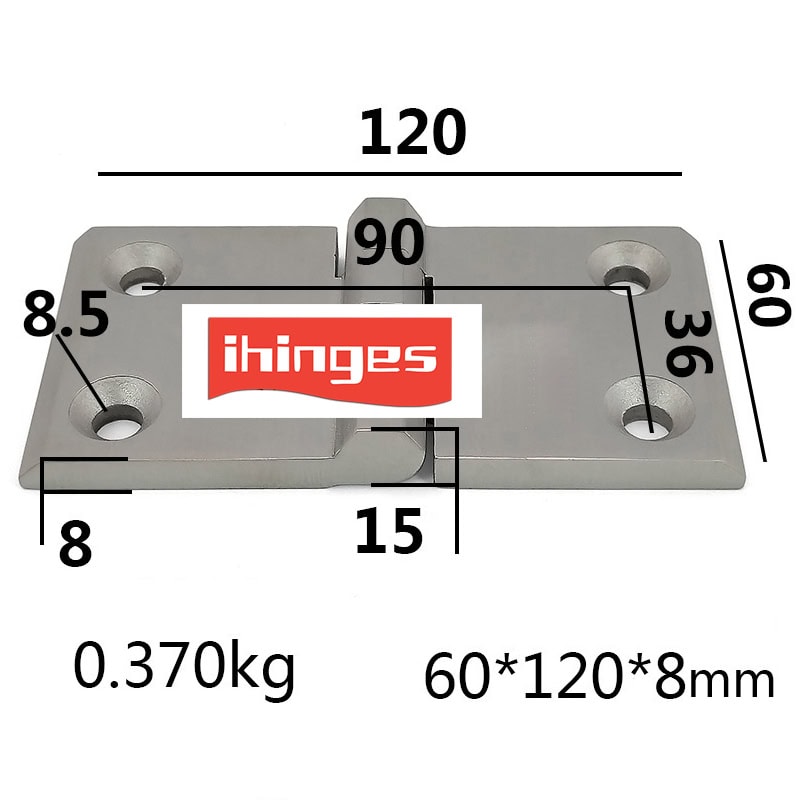

| Overall Dimensions | 60mm × 120mm × 8mm |
| Hinge Thickness | 8mm |
| Weight | 0.370kg |
| Load Capacity (per hinge) | Up to 40kg |
| Hole Diameter | 8.5mm |
| Mounting Hole Spacing | 90mm (center-to-center) |
| Customization | Logo, Size, Design |
Features
-
High Load-Bearing Capacity: Supports up to 40kg per hinge, suitable for heavy-duty applications.
-
Robust Thickness: Manufactured with 8mm thick stainless steel for superior strength and impact resistance.
-
Corrosion Resistant Surface: Brushed polishing enhances both the visual quality and oxidation resistance.
-
Precise Machining: Clean edges and uniform hole positioning ensure easy installation and alignment.
-
Customization Available: Dimensions, hole positions, and surface treatments can be tailored to specific project requirements.
Application
Ideal for use in various industrial sectors including:
-
Electrical enclosure cabinets
-
Sheet metal doors
-
Industrial control panels
-
Constant temperature and humidity test chambers
-
Machinery access panels
-
Custom heavy-duty metal box solutions
Why 304 Stainless Steel Is Rust-Resistant
Type 304 stainless steel contains a high percentage of chromium and nickel, which forms a passive oxide layer on the surface when exposed to oxygen. This invisible layer protects the material from corrosion and prevents rust from forming. Even if the surface is scratched or damaged, the layer can regenerate itself, ensuring long-lasting resistance to rust in most industrial and outdoor environments.
