Description

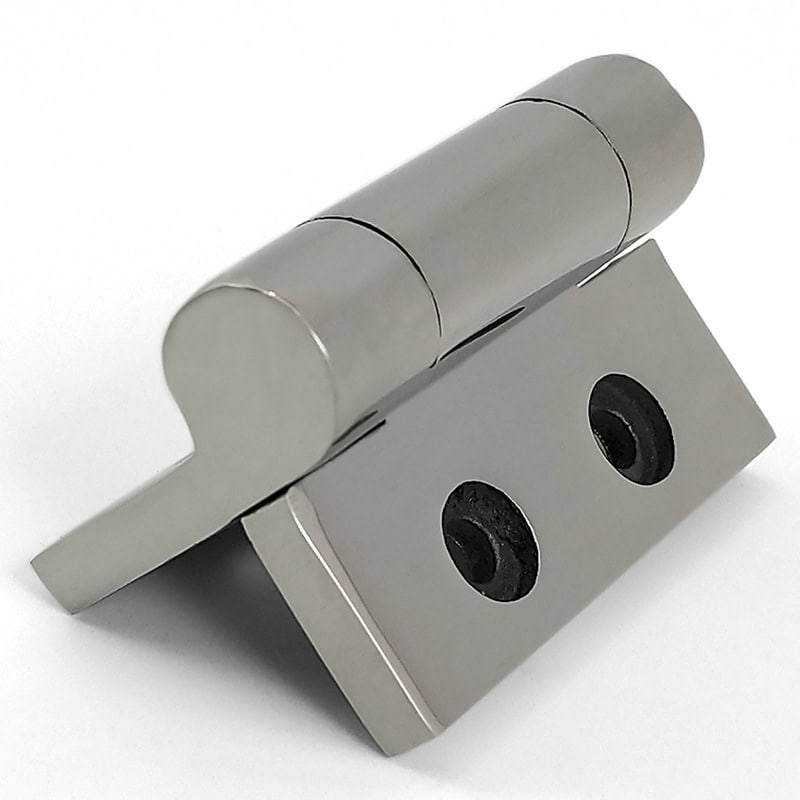

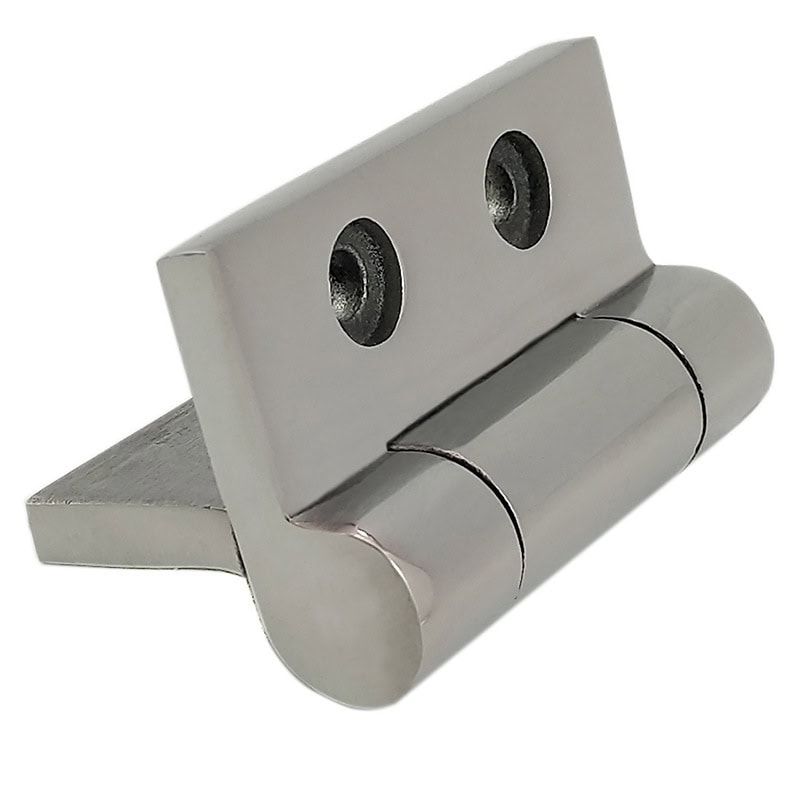

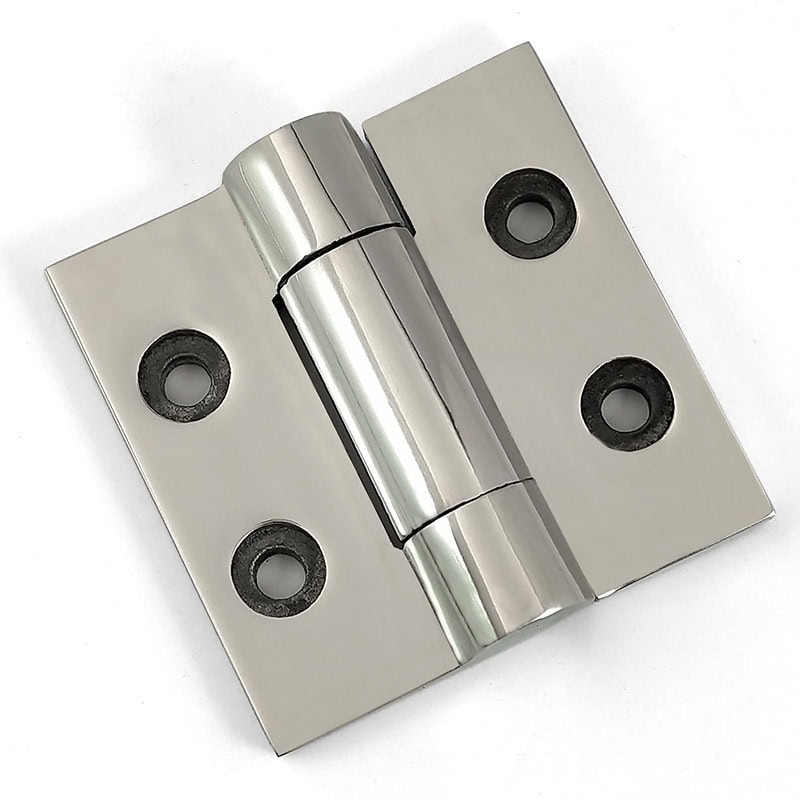

This stainless steel industrial hinge from IHINGES is engineered for high-load sheet metal doors and industrial enclosures. With dimensions of 50×50×5.2mm, it offers a compact yet robust solution for demanding applications. The mirror-polished surface enhances the visual appeal while also providing strong corrosion resistance. The hinge body is crafted from high-quality 304 stainless steel, ensuring long-term durability and stable performance even under heavy loads of up to 30kg per hinge.
Parameter
| Item | Specification |
|---|---|
| Model | ML2-JL1012-1 |
| Brand Name | IHINGES |
| Material | Stainless Steel 304 |
| Surface Treatment | Mirror Polished |

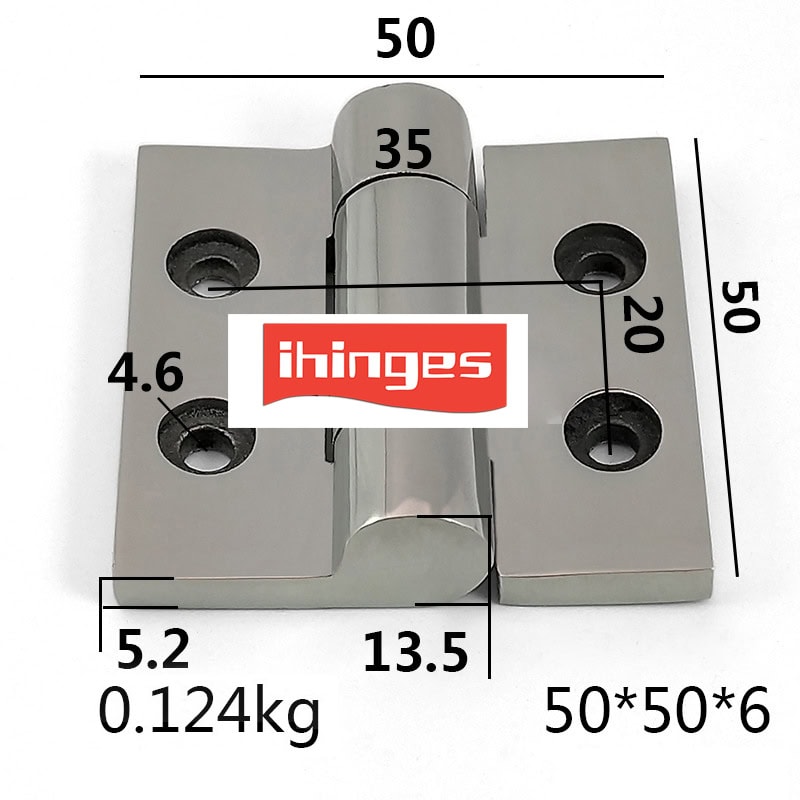

| Overall Dimensions | 50mm × 50mm × 5.2mm |
| Hinge Thickness | 5.2mm |
| Weight | 0.124kg |
| Load Capacity (per hinge) | Up to 30kg |
| Hole Diameter | 4.6mm |
| Mounting Hole Spacing | 35mm (center-to-center) |
| Customization | Logo, Size, Hole Position |
Features
-
Compact and Strong: Small footprint (50×50mm) with excellent load-bearing performance.
-
Durable Build: 5.2mm thick 304 stainless steel provides structural stability and impact resistance.
-
Corrosion Resistance: Mirror polishing enhances protection against oxidation and corrosion in harsh environments.
-
Precision Machining: Designed for easy and accurate installation on sheet metal doors and industrial cabinets.
-
Custom Options: Available with tailored specifications to meet various engineering and installation requirements.
Application
This hinge is widely used in:
-
Sheet metal enclosures
-
Industrial control boxes
-
Test equipment doors
-
Environmental test chambers
-
Electrical cabinets
-
Custom industrial hardware solutions
Surface Treatment Options for 304 Stainless Steel
304 stainless steel can be finished using two main surface treatment techniques:
-
Mirror Polishing: Produces a highly reflective, smooth surface that enhances aesthetics and makes the hinge easier to clean. It is commonly used in visible or high-end industrial applications.
-
Brushed (Satin) Polishing: Offers a matte, linear texture that reduces the appearance of fingerprints and scratches, making it ideal for rugged industrial environments.
Both finishes maintain the corrosion resistance of stainless steel while serving different functional and visual purposes.
