Door hinges used in industrial environments face high stress and harsh conditions, making their regular inspection critical.
Industrial door hinges should be replaced when signs like structural damage, corrosion, sagging doors, or misalignment appear. Ignoring these signs can result in equipment failure, reduced efficiency, and safety hazards. Early detection and hinge replacement ensure operational reliability and long-term cost savings.
Stay ahead of maintenance issues—here’s what you need to watch for.
Visible Structural Damage (Cracks, Dents, Deformation)
Surface defects like cracks, dents, or warping are warning signs of hinge failure. Cracks or dents on industrial hinges indicate metal fatigue or overload, which can compromise the hinge’s strength and door stability. Immediate replacement is advised.
Types of Structural Damage
Industrial hinges, such as heavy duty hinges, carry substantial weight. Over time, pressure, misalignment, or impact can cause fractures or visible bending. These defects can lead to sudden hinge failure, especially in systems with frequent opening and closing cycles like electrical cabinets or testing chambers.
Causes and Prevention
Common causes include using under-spec materials, improper installation, and environmental stress (e.g., temperature fluctuations). To prevent this, use certified industrial-grade hinges like trailer door hinges, especially for mobile units and large metal enclosures. Regular visual checks should be scheduled as part of preventive maintenance.
| Issue Type | Cause | Recommended Action |
|---|---|---|
| Small cracks | Metal fatigue | Replace hinge |
| Deep dents | Accidental impact or load stress | Inspect frame & replace |
| Warping or bend | Thermal expansion or overload | Upgrade hinge material |
Door Misalignment or Sagging
A sagging door is a classic indication of hinge failure. When an industrial door sags, the hinge may be deformed, worn, or unable to support the door weight. This threatens enclosure performance and worker safety.
Operational Effects

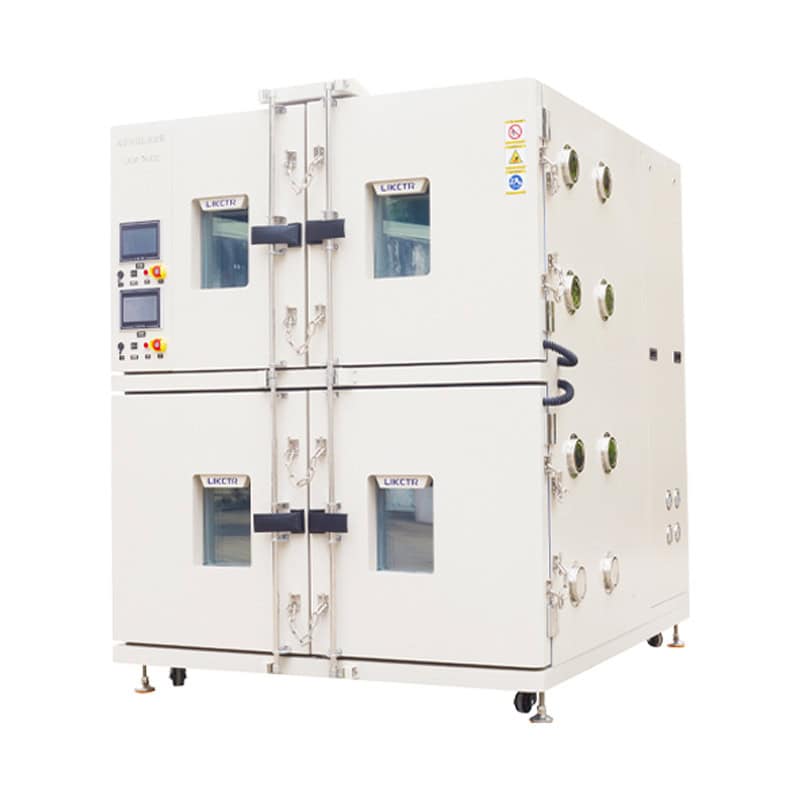

Heavy doors, such as those in environmental test chambers or sheet metal enclosures, rely on precise hinge geometry. Misalignment often results in improper sealing, increasing internal contamination or energy loss.
Hinge Upgrade Recommendation
If sagging is observed, consider switching to weld on hinges, which provide superior structural support. For large doors, piano hinges or aluminum geared continuous hinges offer full-length load distribution.
Corrosion and Oxidation
Rust and corrosion are common in outdoor or humid industrial settings. Corroded hinges lose structural integrity and mobility. In harsh environments, switch to corrosion-resistant or stainless steel models immediately.
Industrial Exposure Risks
Corrosion is a silent destroyer of industrial hinges, especially in marine, chemical, or coastal installations. Even airborne moisture can cause pitting and degradation over time. Applications like marine hinges are especially vulnerable without proper treatment or selection.
Protective Measures
Use corrosion resistant hinges or opt for plated materials. Galvanized finishes and anodized aluminum hinges are preferred in environments exposed to salt spray or high humidity. Ensure maintenance crews clean and lubricate hinges regularly.
| Environment | Risk Level | Ideal Hinge Type |
|---|---|---|
| Coastal areas | High | Marine or aluminum hinges |
| Indoor humid zones | Medium | Zinc-plated steel hinges |
| Dry environments | Low | Any industrial-grade type |
Loosening of Hinge Knuckles or Pins
Loose knuckles reduce operational precision and safety. If the hinge’s knuckle or central pin shows movement or separation, it indicates excessive wear and requires prompt replacement.
High-Cycle Fatigue
Frequent opening cycles can wear out hinge pins or loosen the central knuckle. This is critical for systems that demand repeatable positioning, such as climatic test chambers or automated production line hatches.
Design Considerations
Knuckle wear often signals it’s time to switch to detachable hinges with reinforced pins. In assembly-line environments, quick-release or take-apart hinges improve maintenance efficiency while ensuring tight fit.
Excessive Play or Gap Between Hinge Leaves
Large gaps mean mechanical failure. Excessive spacing between hinge leaves indicates wear, improper installation, or material fatigue. Gaps compromise door alignment and insulation.
Tolerance and Fit Issues
Doors used in precision-controlled environments (e.g., electronics enclosures) depend on exact spacing and compression for sealing. If visible gaps form, it not only affects thermal retention but may also violate compliance standards in sensitive applications.
Replacement Guidelines
Use staked or soft close hinges for enhanced stability in high-vibration environments. Gaps larger than 1–2mm are a clear sign that the hinge should be replaced or upgraded.
Squeaking, Grinding or Friction During Movement
Noise indicates internal failure or contamination. Unusual sounds from a hinge suggest wear, lack of lubrication, or internal misalignment. Address promptly to prevent further damage.
Source of Friction
Hinges on aging industrial equipment often dry out, accumulate debris, or develop internal scarring on the leaf surfaces. Grinding can also result from pin deformation.
Maintenance vs. Replacement
While some issues can be solved with cleaning and lubrication, repetitive squeaks likely mean the hinge is at the end of its lifecycle. Upgrade to maintenance-free or ball-bearing butt hinges for smoother, noise-free operation.
Door Doesn’t Close or Latch Properly
Hinge alignment is critical for closure systems. If doors remain ajar or require force to latch, hinge angle and positioning may be off, requiring immediate inspection and likely replacement.
Equipment Risk
Poorly closing doors pose risks in climate-controlled chambers or electrical enclosures, where sealing and security are paramount. Misalignment stresses door locks, gaskets, and panels.
Recommended Fix
Check both the hinge installation and door plane. Replace faulty components with pre-aligned or custom-designed special hinges available from an industrial hinge production base.
Uneven Load Bearing or Twisting Motion
Door should operate evenly across its hinge axis. If doors twist or drag during operation, hinge load balancing has failed. A more robust or full-length hinge is needed.
Stress Indicators
Twisting doors indicate that one hinge is carrying more load than it should. This happens frequently with lightweight aluminum enclosures fitted with underspecified hinges.
Best Practice
Use multi-point hinges or switch to piano hinges for full-length support across wide industrial cabinet doors. For heavy doors, spacing and alignment of hinges should be reviewed.
Material Fatigue or Lifecycle Expiry
Even quality hinges have finite cycles. After thousands of open-close cycles, industrial hinges may lose precision and strength. Replace hinges as part of lifecycle maintenance.
Expected Lifespan
Many industrial hinges are rated for 20,000–100,000 cycles, depending on load and material. Beyond that, fatigue may not be visually obvious but still dangerous.
Planning Replacement
Set maintenance schedules based on operational cycles. Upgrade frequently used components to models with certification or extended cycle life.
Incompatibility With Upgraded Doors or New Requirements
New doors may not fit old hinges properly. Upgrading doors, insulation, or enclosure materials may require a complete hinge replacement to maintain fit, strength, and function.
Retrofit Issues
When industrial clients install thicker doors, fire-rated panels, or energy-efficient seals, existing hinges often lack the strength or dimensions for proper operation.
Solution Strategy
Plan hinge replacement alongside door upgrades. Cold storage room hinges or climatic test chamber hinges are designed for thick, insulated panels and provide the sealing force necessary in such applications.
Conclusion
Regular inspection and early replacement of industrial door hinges ensure long-term equipment performance, energy efficiency, and safety across manufacturing environments.
