Wide-throw hinges are essential for industrial doors that require a full 180-degree swing.
Wide-throw hinges allow doors to swing open up to 180 degrees by using extra-wide leaves. This design enables full door clearance, essential for industrial environments requiring high accessibility and large equipment passage.
These hinges are critical in manufacturing facilities and high-traffic commercial areas where ordinary hinges fall short.

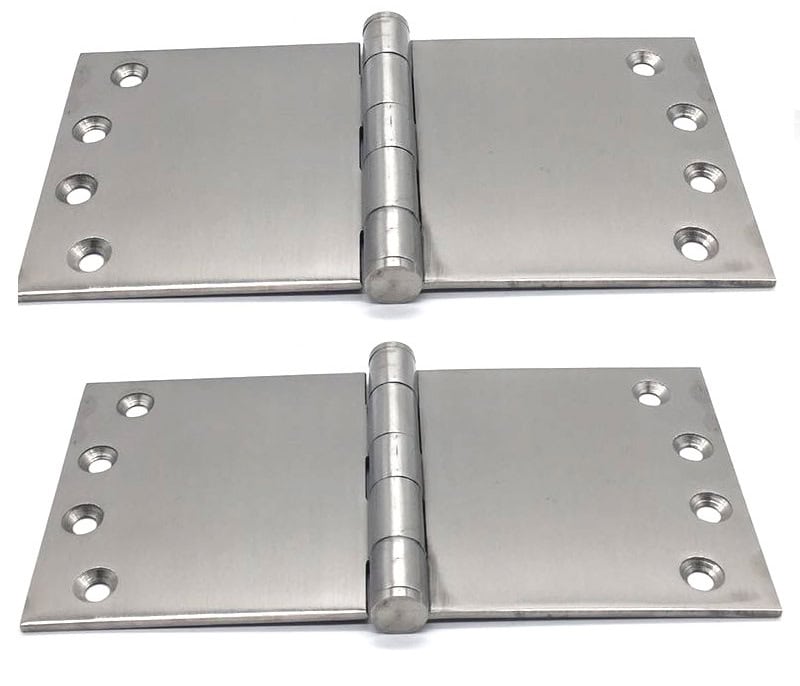

What Is a Wide Throw Hinge?
Wide throw hinges are specialized industrial hinges designed to allow doors to swing wide—often up to a full 180 degrees. These hinges are defined by their wider leaf design, which offsets the pivot point farther from the door edge. This design allows the door to clear obstructions like thick door frames or trim, making them ideal for situations where maximum door clearance is needed.
Unlike standard hinges that limit the swing to about 90 degrees, wide throw hinges provide significantly improved flexibility and functionality. They’re used in various settings where traditional swing arcs could hinder equipment movement or reduce accessibility—such as in industrial ovens, control panels, or climatic test chamber hinges installations.
Wide throw hinges are industrial-grade components that feature wide leaves to extend the pivot point, enabling full or nearly full door swing beyond the frame.
How Do Wide Throw Hinges Work?
Wide throw hinges operate on a basic principle: extend the hinge leaf farther out to increase the door’s range of motion. This is achieved by increasing the leaf width, which moves the pivot point away from the frame. As a result, the door can swing past obstructions and open flat against the wall or equipment casing.
These hinges are particularly useful on deep-set doors or applications with inset panels and large trim depths. They work by attaching one leaf to the door and the other to the frame, with a pin in the center allowing rotation. In wide-throw designs, the extended leaves create a larger swing arc, enabling more flexible movement for industrial access points.
Key Functional Elements:
| Feature | Description |
|---|---|
| Leaf Width | Wider than standard, typically 6″ to 8″ |
| Swing Radius | Up to 180 degrees |
| Material | Often stainless steel, aluminum, or brass |
| Common Uses | Industrial doors, cleanroom access, test chambers |
Key Industrial Applications of Wide Throw Hinges
Wide throw hinges are commonly used in manufacturing environments that demand unrestricted access or accommodate heavy machinery. They’re found on doors for cold storage room hinges, testing equipment, and electronic enclosures where a tight frame fit could impede access or airflow.
Industries such as food processing, medical equipment manufacturing, and electronics assembly use wide-throw hinges to ensure safe and ergonomic access to machines and interior components. These hinges are also critical in aerospace and defense manufacturing, where every millimeter of clearance can impact installation and inspection operations.
Wide throw hinges are essential in industrial settings requiring clear, unobstructed access—particularly for machinery enclosures, testing equipment, and control cabinets.
Heavy Duty Wide Throw Hinges vs. Cabinet Variants
Heavy duty wide throw hinges are designed to carry significant loads and endure frequent use in harsh environments. These hinges are thicker, have higher-grade materials, and sometimes include additional reinforcements like welded knuckles or ball bearings.
In contrast, cabinet-style wide throw hinges are smaller and typically used on enclosures or metal cabinets. While still offering a wide swing, they are not designed for high-impact doors or large-scale equipment.
For example, a trailer door hinge used on heavy transport units may require a 5″x8″ wide-throw design, whereas a hinge used on a control cabinet may only need a 3″x5″ configuration.
Comparison Table:
| Type | Load Capacity | Application | Typical Material |
|---|---|---|---|
| Heavy Duty | High | Doors, gates | Stainless steel, brass |
| Cabinet Variant | Medium | Metal cabinets | Aluminum, steel |
Swing Clear Hinges and Parliament Hinges: What’s the Difference?
Swing clear hinges and Parliament hinges are both used to provide a clear opening, but they differ in design and installation methods. Swing clear hinges are designed to move the door entirely out of the opening when opened, ideal for ADA compliance and tight-clearance spaces.
Parliament hinges, often seen in older European designs, project the door outward using a distinctive Z-shaped leaf. These are better for very deep-set frames or when wide trim surrounds the door.
Swing clear hinges pull the door entirely out of the frame path when opened, while Parliament hinges push the door outwards using offset geometry.
Material Selection for Industrial Use
Industrial wide-throw hinges are available in various metals depending on the application. Aluminum hinges are lightweight and corrosion-resistant, ideal for moderate environments. Stainless steel variants offer durability and rust resistance, making them suitable for outdoor or washdown areas.
In corrosive environments—like chemical processing or marine settings—marine hinges and specially coated corrosion resistant hinges are preferable. The material choice directly affects durability, maintenance frequency, and product lifespan.
Accessibility Advantages in Manufacturing Facilities
Wide-throw hinges support universal design by allowing doors to open beyond the standard swing radius, making passage easier for individuals using wheelchairs or moving large carts. This makes them a preferred choice for cleanroom access, pharmaceutical plants, and logistics facilities where regulatory compliance (like ADA in the U.S.) is critical.
By enabling doors to open fully out of the way, wide-throw hinges dramatically improve accessibility in industrial settings, aiding both humans and machinery.
Calculating the Proper Width of a Wide Throw Hinge
To determine the correct wide-throw hinge, calculate the required “throw” using the formula:
Throw = (Door Thickness + Frame Setback + Clearance) × 2
This ensures the door will open past trim or inset obstructions. For instance, a 1.75″ thick door with a 0.75″ setback and 0.25″ clearance would require a throw of 5 inches.
Installers can adjust this based on frame design and any external devices such as sensor housings or ventilation grilles.
Installation Best Practices
When installing wide-throw hinges in industrial environments, it’s recommended to mount the hinge on the frame first. This allows better alignment and handling of heavier doors. Proper pre-drilling and reinforcement are essential for durability, especially with weld on hinges or heavy-duty variants.
Always ensure that the hinge’s knuckle is aligned precisely to prevent binding or excessive stress on the mounting points.
Choosing the Right Wide Throw Hinge Manufacturer
Selecting a hinge supplier for industrial use involves evaluating product range, material certifications, delivery timelines, and customization capabilities. Factories like IHINGES based in China offer advanced customization options, including CAD design, logo engraving, and precision manufacturing. IHINGES specializes in high-performance industrial hinges like detachable hinges, butt hinges, and special hinges designed for industrial-grade use.
When sourcing, always consider:
-
ISO certifications
-
Load ratings
-
Corrosion resistance
-
Logistics and export capabilities
Conclusion
Wide-throw hinges provide critical functionality in industrial settings by offering extended door swing, enhanced access, and superior durability.
