Living hinges are widely used in industrial components, offering durable and seamless motion without mechanical parts.
Polypropylene is the most commonly used material for living hinges due to its excellent fatigue resistance and flexibility. Polyethylene and TPU are also used but with limitations. Nylon, while strong in other contexts, often lacks the long-term durability needed for hinge applications. Proper design, thickness, and gate placement are essential for functionality.
Let’s dive deeper into why material selection matters so much in industrial-grade living hinges.
What Is a Living Hinge?

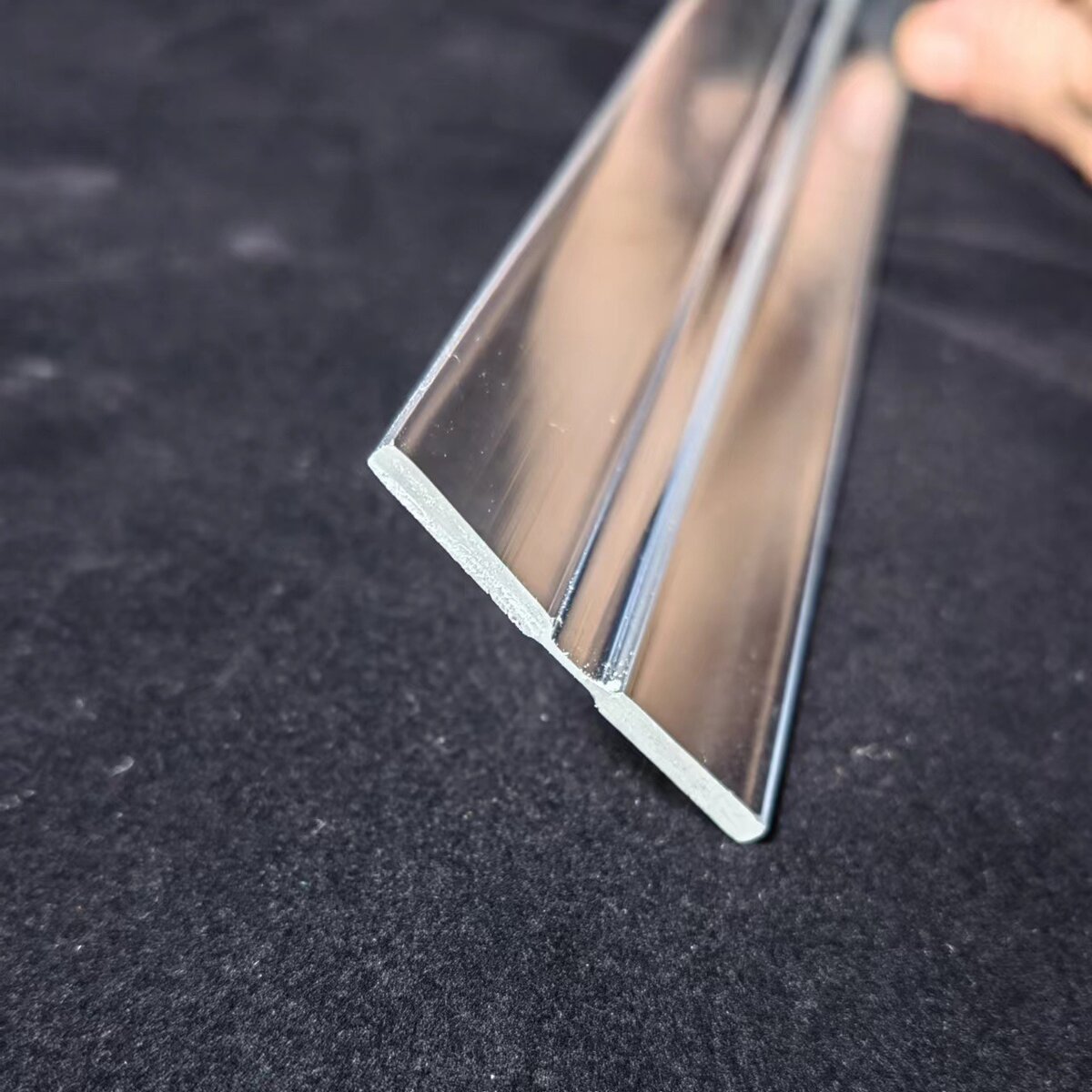

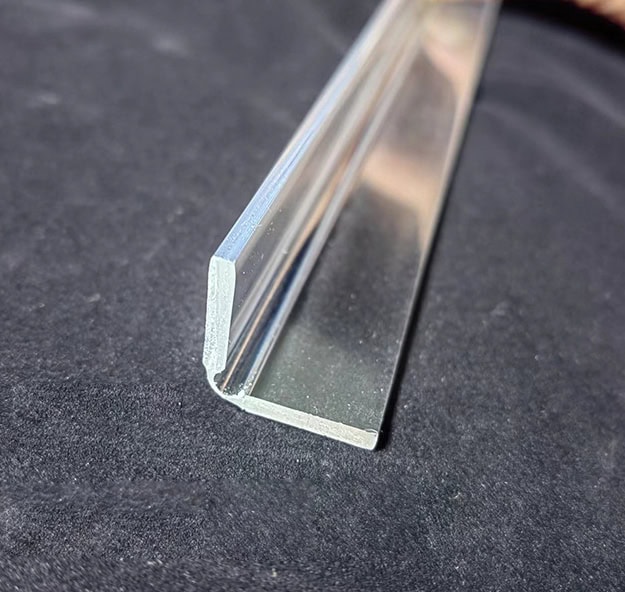

Living hinges are thin, flexible plastic segments that connect two rigid parts, allowing rotation without separate hardware.
A living hinge is a flexible section of plastic molded as a single piece with its adjoining parts, designed to bend repeatedly without breaking.
Integrated Flexibility
Living hinges are molded from a single piece of plastic, eliminating the need for additional hardware like pins or butt hinges. This integration reduces assembly time and increases reliability. The hinge functions solely due to the material’s inherent flexibility, making it ideal for enclosures, boxes, and containers that need to open and close hundreds or thousands of times.
Industrial Use Cases
Used extensively in electrical enclosures, test chambers, packaging components, and equipment lids, living hinges must maintain mechanical performance over time. Unlike detachable hinges, which are used for removable applications, living hinges are built for permanent, repeated use. Their value in automation, robotics, and precision equipment lies in their reliability and simplicity.
Why Polypropylene Is the Best Material for Living Hinges
Polypropylene is the industry standard for producing durable, high-cycle living hinges.
Polypropylene is the best material for living hinges because of its high fatigue resistance, excellent flexibility, and consistent performance in injection molding processes.
Material Properties
Polypropylene offers superior hinge memory and flexibility. It withstands environmental stress and returns to its original position after repeated bending. It is also chemical resistant, making it suitable for harsh industrial environments. These qualities help ensure that the hinge won’t fail even after thousands of cycles, unlike materials used in soft close hinges, which are built more for residential or controlled applications.
Injection Molding Advantages
Polypropylene flows easily into thin molds, critical for achieving the narrow thickness required in living hinges. It sets quickly, maintains dimensional stability, and performs well over time. When properly molded, PP hinges can last the lifespan of the product without failure, making them ideal for use in rugged applications such as climatic test chamber doors or marine hinges.
| Property | Polypropylene | Nylon (PA) | Polyethylene (HDPE) |
|---|---|---|---|
| Fatigue Resistance | Excellent | Poor | Moderate |
| Flexibility | High | Low-Moderate | High |
| Moldability | Excellent | Moderate | Good |
| Cost | Low | Higher | Low |
Can Nylon Be Used for Living Hinges?
Nylon is a robust material, but it is rarely the best choice for living hinge designs.
Nylon is not ideal for living hinges in most industrial applications due to its brittleness and tendency to crack under repeated stress.
Moisture Sensitivity
Nylon absorbs moisture from the air, which affects its mechanical strength and flexibility. When dry, it becomes brittle, increasing the risk of cracking after just a few cycles. These inconsistencies make nylon unreliable for living hinges, especially in environments with fluctuating humidity.
Limited Use in 3D Printing
While some engineers experiment with nylon in 3D printing, its poor fatigue resistance and layer adhesion often lead to early failure. It’s occasionally used for prototypes but not for production-level parts. In comparison, metal hinges like piano hinges provide predictable motion and long-term durability in applications where plastic performance would degrade.
Other Materials for Living Hinges
Besides polypropylene, a few other materials can be used for specific applications—though none match its overall performance.
Polyethylene, TPU, and elastomer blends can also be used for living hinges, but each comes with trade-offs in fatigue life and processability.
Polyethylene (HDPE/LDPE)
Polyethylene offers high flexibility and chemical resistance but has lower fatigue resistance compared to polypropylene. LDPE is more pliable, while HDPE offers better strength but still doesn’t endure repeated cycles well. It’s more suitable for disposable applications or packaging that doesn’t require frequent flexing.
Thermoplastic Polyurethane (TPU)
TPU provides excellent flexibility and can be printed with high detail using additive manufacturing techniques. However, it lacks the high-cycle durability of PP and may deform or fatigue faster in industrial applications. TPU is best reserved for prototypes or temporary components, not long-term production use.
Design Guidelines for Durable Living Hinges
Designing an effective living hinge is as critical as material selection.
To ensure durability, living hinge designs must follow best practices including a thickness of 0.3–0.5mm, large radii, and proper gate placement for optimal material flow.
Thickness and Radius
Living hinges must be thin enough to flex but thick enough to withstand stress. The optimal thickness typically falls between 0.3 mm and 0.5 mm. A larger bend radius reduces strain during flexing, extending the hinge’s lifespan.
Gate and Flow Control
The hinge area must be aligned with the direction of material flow during injection molding to prevent weak spots. Gates should be placed to ensure even fill and consistent mechanical properties across the hinge. Incorrect gate placement can lead to warping, air traps, or premature hinge failure.
| Design Factor | Recommendation |
|---|---|
| Hinge Thickness | 0.3 – 0.5 mm |
| Radius of Curvature | ≥ 0.25 mm |
| Gate Location | Aligned with hinge flow |
| Mold Temp (PP) | 200–250°C |
Are Living Hinges 3D Printable?
3D printing enables quick prototyping of living hinges—but not all materials or methods are suitable.
Living hinges can be 3D printed using polypropylene or flexible TPU, but strength and cycle life are significantly lower than injection-molded parts.
Limitations of FDM Printing
Fused Deposition Modeling (FDM) creates parts layer by layer. This layer structure introduces weak points, especially where hinges need to bend. The resulting living hinges can fail after limited cycles unless printed in the right orientation and with the right material.
Ideal Filaments for Printing Hinges
Polypropylene is the best material for 3D printed hinges, though it requires a heated bed and careful settings. TPU is easier to print and more flexible but often lacks durability. Nylon is typically too brittle and prone to cracking.
Conclusion
Polypropylene remains the top material choice for living hinges, offering a balance of flexibility, fatigue resistance, and ease of molding needed for industrial applications.
