Description

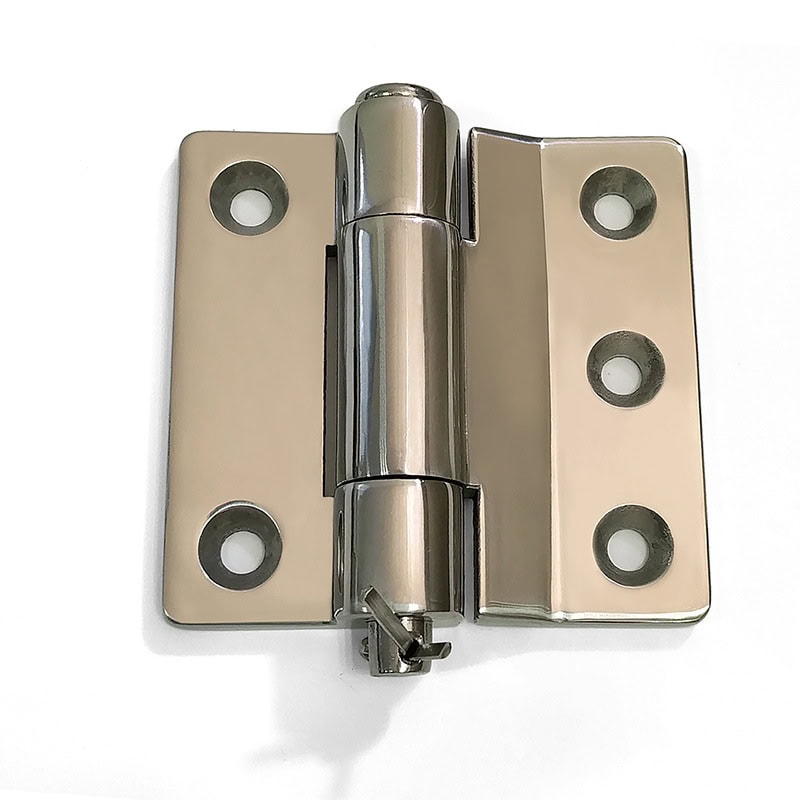

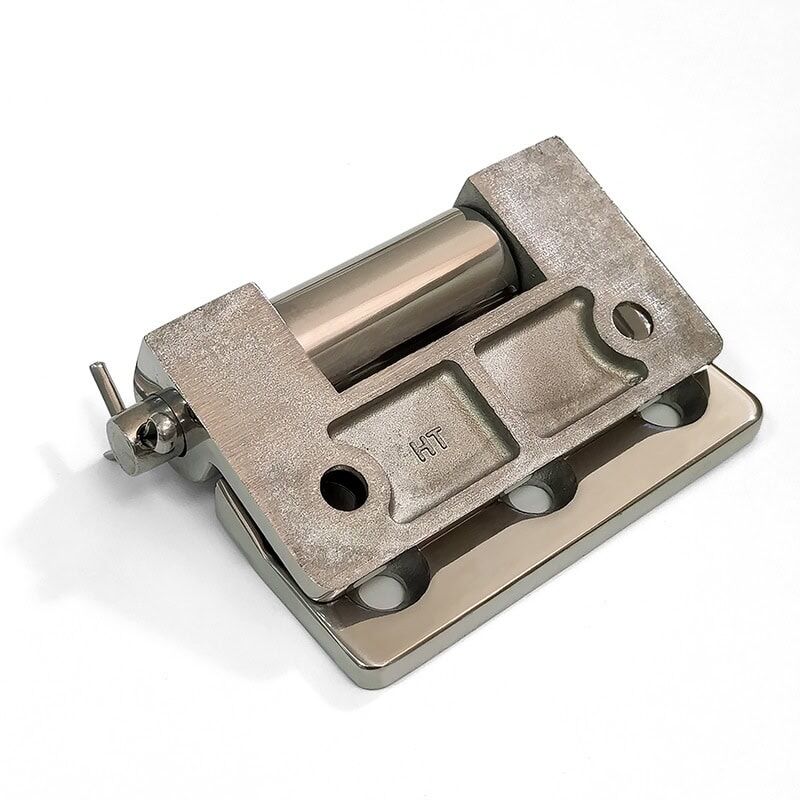

The ML2-JL304 is an ultra-heavy duty industrial hinge, crafted from high-grade 304 stainless steel casting and finished with a mirror-polished surface for superior corrosion resistance and aesthetics. Designed with a detachable shaft, this hinge allows for easier installation, maintenance, and door removal. Featuring a two-hole plate on one side and a three-hole plate on the other, it provides secure and stable mounting for demanding applications. Each hinge can support up to 120 kg, making it an ideal choice for heavy doors and industrial equipment.
Parameter
| Item | Specification |
|---|---|
| Model No. | ML2-JL304 |
| Brand | IHINGES |
| Material | 304 Stainless Steel (Casting) |
| Surface Treatment | Mirror Polished |

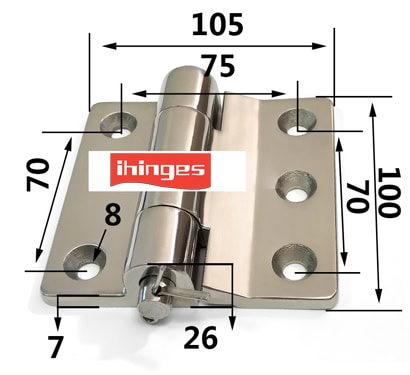

| Overall Dimensions | 105 × 100 × 26 mm |
| Hinge Width (Open) | 105 mm |
| Hinge Height | 100 mm |
| Plate Thickness | 7–8 mm |
| Mounting Holes | 2 holes (one side), 3 holes (other side) |
| Shaft Design | Detachable Pin |
| Load Capacity | Up to 120 kg per hinge |
| Weight | Approx. 0.9 – 1.0 kg (per hinge) |
| Customization | Logo, structure, size, material, surface finish |
Features
-
Ultra-Heavy Load Capacity: Supports up to 120 kg per hinge, suitable for oversized and heavy industrial doors.
-
304 Stainless Steel Casting: Excellent durability, corrosion resistance, and long-term performance.
-
Mirror Polished Finish: Enhances corrosion resistance while delivering a premium appearance.
-
Detachable Shaft: Simplifies installation, maintenance, and panel removal.
-
Asymmetrical Hole Design: One side with 2 mounting holes and the other with 3, ensuring stability and versatility in installation.
-
Customizable: Tailored solutions available, including engraved logos, modified structures, alternative materials (316 stainless steel, aluminum), and surface finishes.
Application
The ML2-JL304 heavy duty detachable hinge is widely used in:
-
Large industrial equipment doors
-
Test chambers and climatic cabinets
-
Heavy-duty sheet metal enclosures
-
Industrial ovens and machinery housings
-
Marine and outdoor applications requiring high corrosion resistance
Perfect for clients in sheet metal fabrication, electrical cabinet manufacturing, industrial equipment production, and other sectors where strength, durability, and ease of maintenance are essential.
