Description

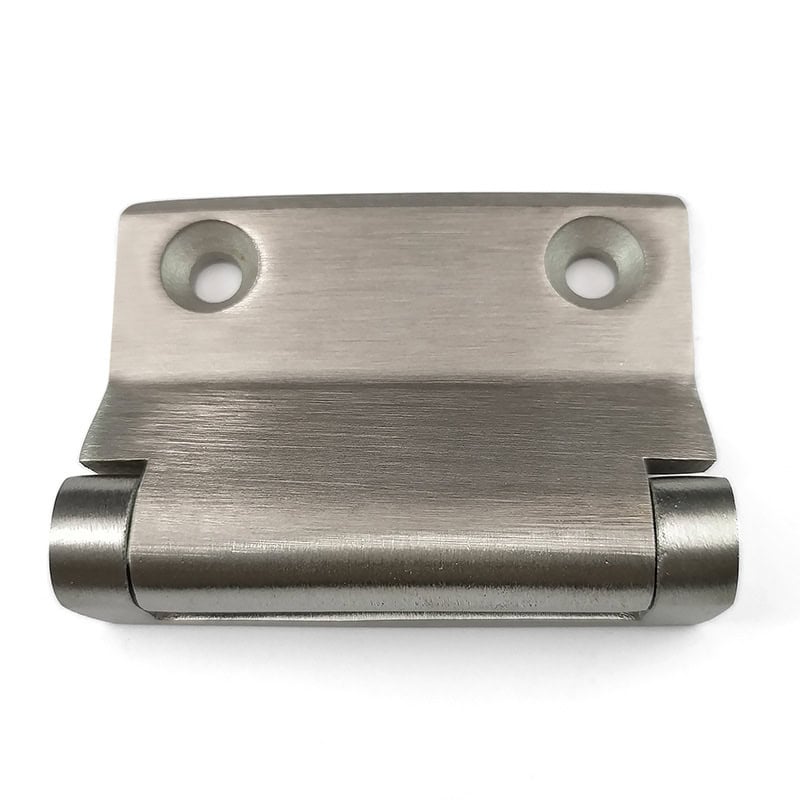

This compact, heavy-duty hinge is manufactured from precision-cast 304 stainless steel and features a left-right asymmetrical design, engineered specifically for enclosures and doors with uneven structural dimensions. It offers excellent corrosion resistance, durability, and reliable load-bearing performance in industrial environments. Fully customizable to meet your specific application needs—logo engraving, structural adjustment, material selection, and surface treatment are available upon request.
Parameter
| Item | Specification |
|---|---|
| Brand | IHINGES |
| Material | 304 Stainless Steel |
| Surface Treatment | Brushed Finish / Customizable |

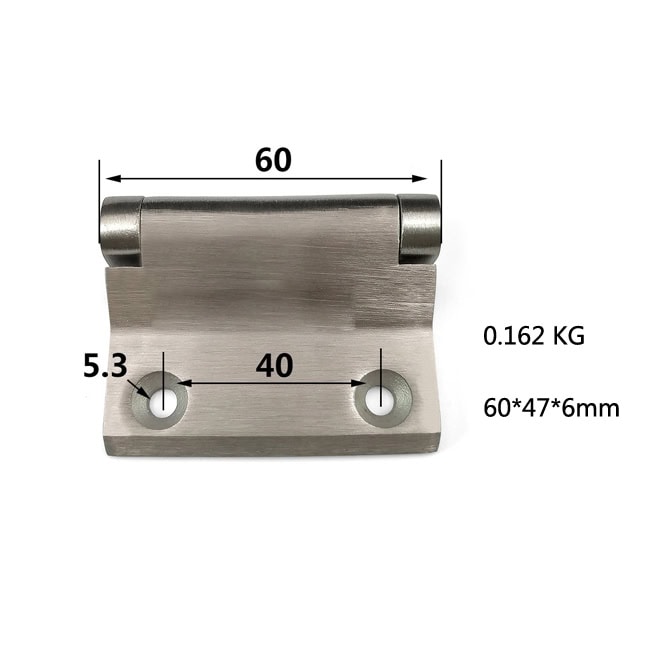

| Overall Dimensions | 60 × 47 × 6 mm |
| Hinge Width (Open) | 60 mm |
| Hinge Height | 47 mm |

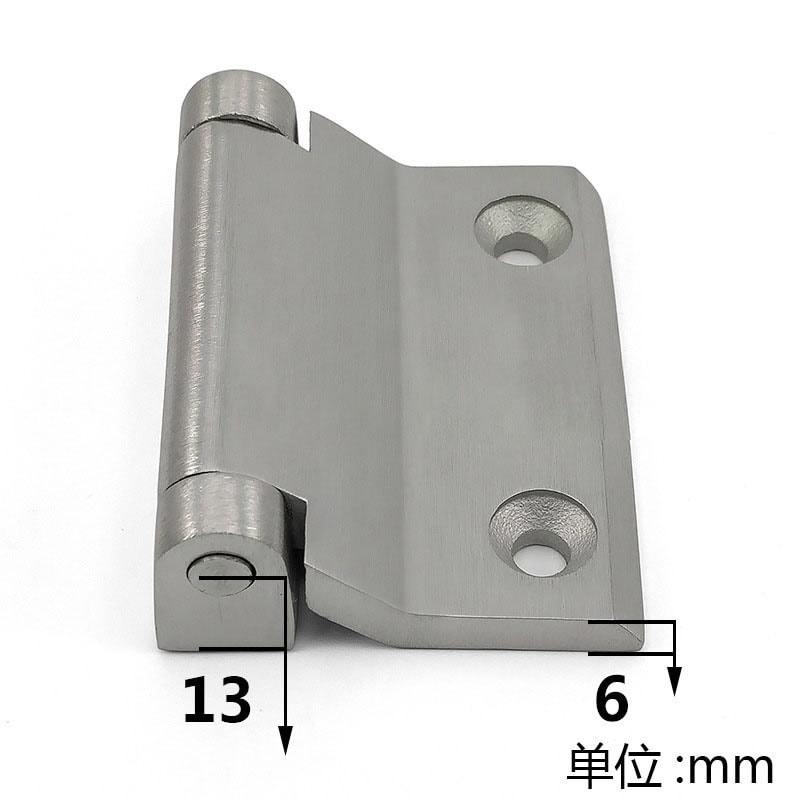

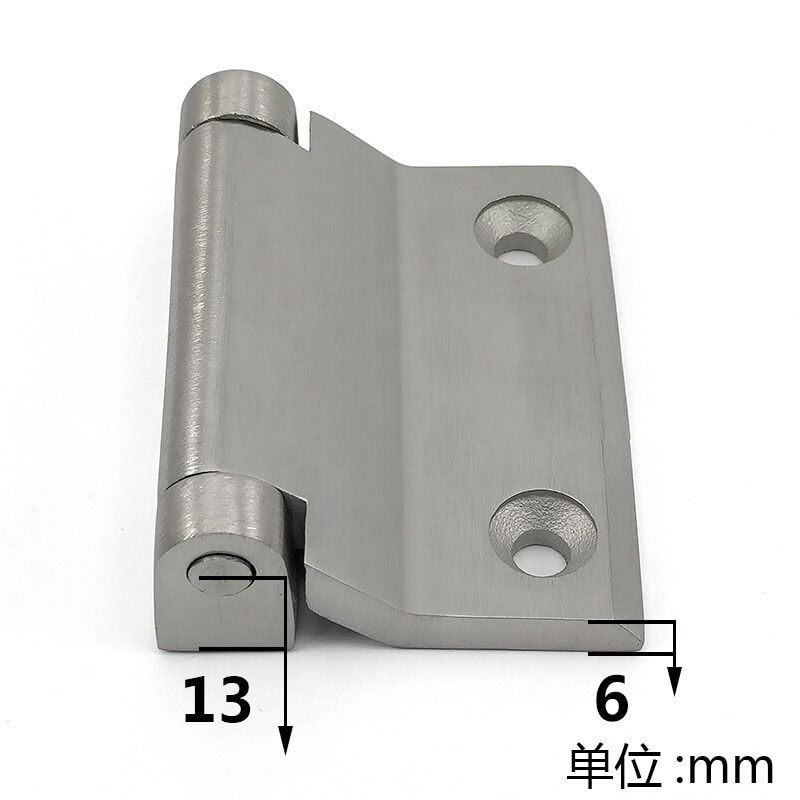

| Shaft Diameter | 13 mm |
| Mounting Hole Spacing | 40 mm |
| Hole Diameter | Ø5.3 mm |
| Weight | 0.162 kg |
| Structure | Asymmetrical (unequal sides) |
| Customization | Logo, structure, surface, material |
| Load Capacity | Medium to Heavy Duty (Customizable) |
Features
-
304 Stainless Steel Casting: Offers exceptional rust resistance and long-lasting performance in harsh industrial or outdoor conditions.
-
Asymmetrical Design: Designed to accommodate panels and frames of different widths, improving fit and functionality.
-
Compact Yet Strong: Though small in size, this hinge delivers outstanding load support and operational stability.
-
Precision Mounting: Countersunk screw holes ensure smooth and secure installation.
-
Custom Ready: We support custom logo etching, structure redesign, material upgrade (e.g., 316 stainless steel or aluminum), and surface finishes (electro-polished, sandblasted, etc.) to meet diverse application needs.
Application
This hinge is suitable for:
-
Electrical and test equipment enclosures
-
Metal access doors with space limitations
-
Climate chambers, industrial ovens, and lab equipment
-
High-performance industrial boxes requiring corrosion protection
-
Marine or outdoor-grade mechanical housings
An ideal solution for sheet metal manufacturers, control cabinet suppliers, test chamber builders, and enclosure system integrators looking for compact yet powerful hinge solutions.
