Heavy duty barrel hinges are critical in high-load industrial settings where standard hinges fail.
Heavy duty barrel hinges are cylindrical pivot joints designed for extreme durability and minimal visibility. They’re commonly used in industrial doors, enclosures, and gates where strength, security, and longevity are required.
Not all hinges are made to carry serious weight or tolerate repeated impact. If your system demands zero flex and long-term alignment, you’ll want to read further.
What Are Heavy Duty Barrel Hinges
Heavy duty barrel hinges are compact cylindrical hinges engineered to handle significant axial and radial loads. The design often features a central pivot pin enclosed within a thick barrel, reducing wear and ensuring stability over time.
Compared to traditional butt hinges, barrel types distribute stress across a broader surface. This improves fatigue life, especially in applications subject to repeated opening and closing or vibration.
They’re often fabricated from stainless steel, carbon steel, or zinc alloy, with some models offering integrated grease fittings for easier maintenance. Many industrial variants are weld-on or come with bolt-on flanges to suit varied installation environments.
Barrel hinges are also ideal when aesthetics matter less than performance. You’ll find them on industrial gates, power enclosures, machine guards, and heavy access doors. If you’re using weld on trailer hinges, you’re essentially relying on a barrel hinge under a different name.
Industrial Use Cases
Heavy duty barrel hinges show up wherever weight, force, and precision meet. They’re not for aesthetics—they’re engineered for function.
Common installations include sheet metal access panels, constant temperature test chambers, marine-grade compartments, and heavy duty metal gate hinges. These are environments where load imbalance, torsion, and misuse are the norm.
I’ve seen clients switch from standard butt hinges to barrel types just to eliminate issues like door sag or misalignment during thermal expansion. Especially in mobile installations like utility trailers or generators, the compact design minimizes points of mechanical failure.
Factories in the electrical industry, particularly those using electrical panel hinges, favor barrel hinges for their compact footprint and rotational stability. They’re also resistant to dirt, rust, and mechanical fatigue—a must in outdoor or semi-exposed environments.
Load Capacity and Stress Handling
Don’t underestimate how much weight your hinge truly bears. It’s not just about the static load; dynamic forces like impact, vibration, and misaligned closure can double the stress.
Take my advice: If you’re running a 300-pound steel door in a high-use environment, you’re already pushing the limits of standard hinge designs. That’s where Extra Heavy Duty Weld On Hinges come in.
What matters isn’t just the material, but the hinge’s weight rating and how that’s calculated. Are you factoring in center-of-gravity offset? Lateral shearing? I’ve seen installations fail due to incorrect assumptions about load vectors—especially when mounting on thin-gauge metal frames.
Manufacturers often underrate the importance of hinge axis tolerance. Too loose, and you get vibration-induced wear. Too tight, and the door won’t seat properly after thermal cycling.
Material and Corrosion Resistance
Materials matter. And in industrial settings, they matter more than most engineers realize.
Carbon steel offers strength but corrodes fast without the right finish. Stainless steel resists corrosion but can seize under stress if galling isn’t addressed with proper bushing or plating.
I recommend Adjustable Torque Stainless Steel Hinges for clients working in marine or chemical environments. They provide both resistance and controlled motion. If you’re installing hinges on powder-coated panels or marine gates, ask whether the hinge includes anti-corrosion coating or grease channels.
I’ve come across installations in coastal warehouses where “stainless steel” hinges were actually low-grade alloy with poor passivation. The result? Pitting within months.
Weld-On Installation Tips
Installing heavy duty barrel hinges is not a plug-and-play operation. Misaligning even 2 degrees can cause torsional stress across the hinge axis.
When welding, use a jig to hold the hinge pin perfectly perpendicular to the mounting surface. Skipping this step results in early wear and uneven opening torque. I’ve seen door frames warp because someone eyeballed the angle.
Preheat thick steel plates to prevent cold welds. Grind off paint or powder coat before welding, and check if the hinge has an integrated grounding path if used on electrical enclosures.
And always allow for thermal movement. Some customers over-weld the hinge body, restricting necessary flex. It’s better to balance rigidity with functional movement tolerance.
Installation Pitfalls to Avoid
One common error is assuming symmetry. Hinges are often directional, especially if they have built-in load offsets or grease fittings. Installing them upside down ruins the self-cleaning function of the pin channel.
Another mistake is using fasteners that are too short or mismatched in hardness. If you’re not using Grade 8 bolts on heavy duty weld on barrel hinges, you’re risking failure under repeated impact.
Paint-filled pin barrels are also a silent killer. After installation, always flush the pivot area with lubricant to prevent heat-baked particulates from hardening and grinding the shaft.
Barrel vs Other Hinge Types
Why choose a barrel hinge over a butt hinge or a concealed one? In industrial environments, it’s about compression and shearing resistance.
Barrel hinges provide minimal protrusion and high vertical strength. That’s why they’re ideal replacements for Butt Hinges for Doors in high-abuse areas.
Compared to ball bearing butt hinges, barrel types offer a simpler design with fewer moving parts. That’s fewer things to fail in a corrosive or particulate-heavy environment.
Sure, piano hinges offer long runs of support, but they can’t compete on pure torque capacity per unit length. I’ve replaced more warped piano hinges than I can count—especially when clients ignore proper bracing.
Custom Solutions for Industry
Off-the-shelf hinges rarely meet the nuanced needs of industrial engineers. Barrel hinges can be customized in shaft length, pin material, grease fitting design, or flange profile.
For aerospace or test chamber applications, I recommend specifying constant torque hinges that allow lid positioning at any angle without external support. You can also opt for adjustable friction hinges for robotics or arm mechanisms where positional holding power matters.
Some of our clients in semiconductor manufacturing request ultra-clean coatings to prevent particulate generation. Others need thermal-resistant pins for ovens and chamber doors.
Maintenance and Durability
Even the best hinge fails early if ignored. Scheduled inspection should include torque testing, corrosion checks, and lubrication.
Avoid dry operation in high-dust environments. A few minutes of lubrication every quarter extends service life by 3X. Use lithium grease or silicone-based compounds, depending on your operating temperature.
Watch for vertical sag. It’s often the first sign your pin channel is deforming. If caught early, you can re-pin without replacing the whole hinge.
Choosing the Right Hinge
Your hinge choice should follow your load map, not the catalog. Look at load angles, impact frequency, and environmental exposure.
Ask yourself: Will the hinge face vibration? Heat? Corrosives? If the answer is yes to even one, then your choice of hinge isn’t just mechanical—it’s strategic.

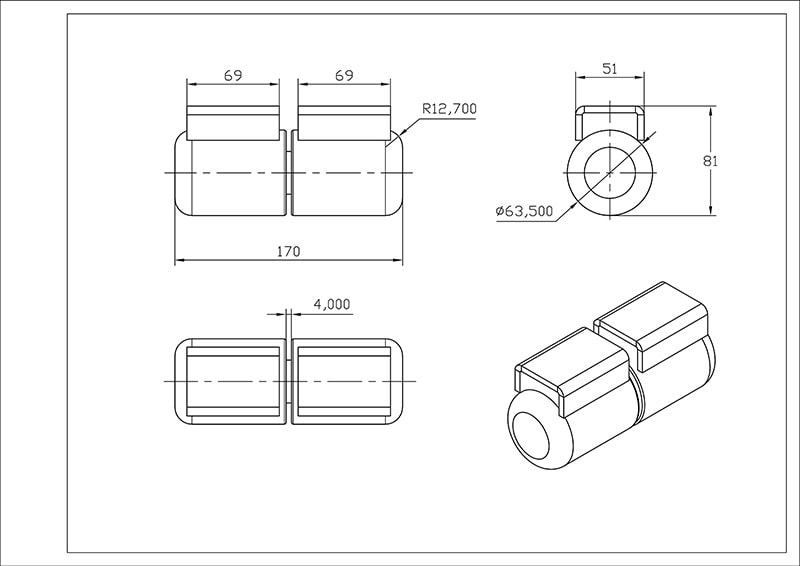

In most industrial scenarios, a Heavy Duty Detachable Barrel Hinge solves alignment and service issues better than fixed designs. For removable panels or service doors, that flexibility is crucial.
Conclusion
Heavy duty barrel hinges aren’t just stronger—they’re smarter. When chosen and installed correctly, they offer unmatched longevity and reliability under stress.
